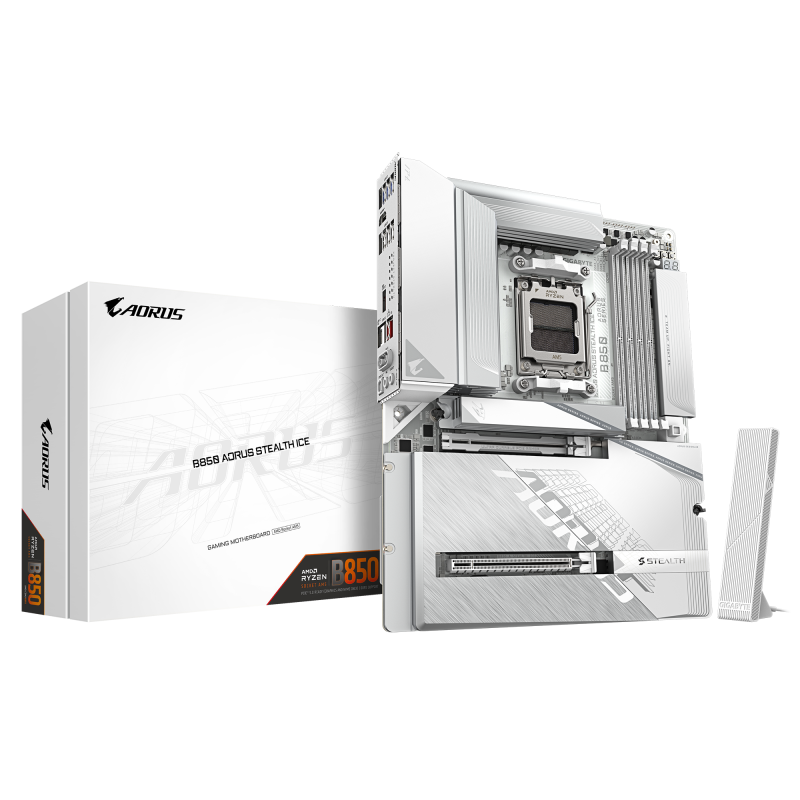

MB Gigabyte B850E AORUS STEALTH ICE AM5

Placa de Baza GIGABYTE B850 AORUS STEALTH ICE AM5, 4x DDR5, 1x HDMI 1x PCIE 5.0 x16 1x PCIE 4.0 x16, 2x M.2, 2x SATA 6GB/s, ATX
Garantie: 36 luni


Specificatii tehnice

Lithium weight per battery: 0.07 g
Battery weight: 3 g
Number of battery cells: 1
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032
BIOS memory size: 512 Mbit
ACPI version: 5.0
Desktop Management Interface (DMI) version: 2.7
System Management BIOS (SMBIOS) version: 2.7
BIOS type: UEFI AMI
Clear CMOS jumper: Yes
1st M.2 largest key size: 25110
1st M.2 highest PCI Express generation: 5.0
2nd M.2 largest key size: 22110
3rd M.2 largest key size: 22110
3rd M.2 highest PCI Express generation: 4.0
PCI Express x16 (Gen 5.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
2nd M.2 highest PCI Express generation: 5.0
4th M.2 largest key size: 22110
Number of M.2 (M) slots: 4
4th M.2 highest PCI Express generation: 4.0
Motherboard chipset: AMD B850
Product colour: White
Power source type: ATX
Cooling type: Passive
Audio Chip: Realtek ALC897
Audio output channels: 7.1 channels
Component for: PC
Motherboard form factor: ATX
PC health monitoring: Fan, Temperature, Voltage, Water cooling
Windows operating systems supported: Windows 11 x64
Motherboard chipset family: AMD
Parallel processing technology support: Not supported
On-board graphics card: No
HDCP: Yes
DirectX version: 12.0
Maximum resolution: 4096 x 2160 pixels
Number of SATA III connectors: 2
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 0
Number of SATA II connectors: 0
Number of SATA connectors: 0
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
EPS power connector (8-pin): Yes
Front panel connector: Yes
Number of CPU fan connectors: 2
TPM connector: Yes
RGB LED pin header: Yes
Number of RGB LED pin headers: 4
Number of temperature sensor headers: 2
Peripheral (Molex) power connectors (4-pin): 1
Number of EPS power connectors (8-pin): 1
Number of water pump connectors: 3
Number of chassis fan connectors: 6
USB 3.2 Gen 2x2 connectors: 1
12V power connector: Yes
Country of origin: China
Products per shipping (inner) case: 1 pc(s)
ECC сompatibility: Non-ECC
Supported memory clock speed (max): 8200 MHz
Supported memory clock speeds: 8200,8000,7950,7900,7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5200,4800,4400 MHz
Supported memory types: DDR5-SDRAM
Maximum internal memory: 256 GB
Maximum internal memory per slot: 64 GB
Number of memory slots: 4
Memory slots type: DIMM
Unbuffered memory: Yes
Memory channels: Dual-channel
Ethernet LAN: Yes
Wi-FI: Yes
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Bluetooth: Yes
Bluetooth version: 5.4
LAN controller: Realtek RTL8126
WLAN controller model: Realtek RTL8922AE
Ethernet interface type: 5 Gigabit Ethernet
Weight: 3.63 kg
mSATA ports quantity: 0
Antenna included: Yes
Screws included: Yes
Batteries included: Yes
Bundled software: Norton® Internet Security (OEM version)
Package depth: 340 mm
Package width: 310 mm
Package height: 92 mm
Package weight: 4.14 kg
Processor socket: Socket AM5
Supported processor sockets: Socket AM5
Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Processor manufacturer: AMD
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
HDMI ports quantity: 1
HDMI version: 2.1
Digital audio optical out: 1
VGA (D-Sub) ports quantity: 0
Line-in: Yes
S/PDIF out port: Yes
WiFi-AP antenna jack: 2
DVI-D ports quantity: 0
Headphone outputs: 1
Ethernet LAN (RJ-45) ports: 1
Number of HDDs supported: 2
Supported storage drive interfaces: M.2, PCI Express 4.0, PCI Express 5.0, SATA III
Number of storage drives supported: 6
RAID support: Yes
RAID levels: 0, 1, 5, 10
Supported storage drive types: HDD & SSD
Warranty period: 3 year(s)
Width: 30.5 mm
Depth: 24.4 mm
Height: 35 mm
MB-Format: ATX
PCI-Ex1: 0
RAM-Slots: 4
MB-Socket: AM5
USB3: 4-8
PCI-Ex16: 1
Onboard-CPU: No
PCI: 0
Serial-or-Paralel: No/No
