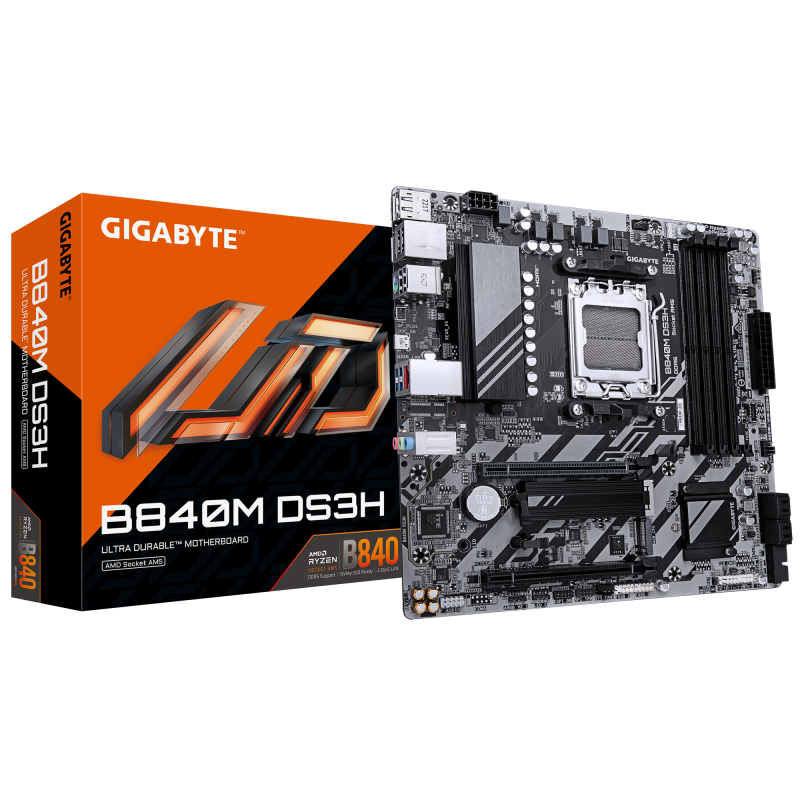

MB GIGABYTE B840M DS3H AM5

Placa de Baza GIGABYTE B840M DS3H AM5, 4x DDR5, 1x HDMI 2x DP, 1x PCIE 4.0 x16 1x PCIE 3.0 x16, 2x M.2, 4x SATA 6GB/s, mATX
Garantie: 36 luni


Specificatii tehnice

Lithium weight per battery: 0.07 g
Battery weight: 3 g
Number of battery cells: 1
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032
ACPI version: 5.0
Desktop Management Interface (DMI) version: 2.7
System Management BIOS (SMBIOS) version: 2.7
BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
Clear CMOS jumper: Yes
2nd M.2 highest PCI Express generation: 4.0
PCI Express x16 (Gen 3.x) slots: 1
Number of M.2 (M) slots: 2
PCI Express x16 (Gen 4.x) slots: 1
2nd M.2 largest key size: 25110
1st M.2 highest PCI Express generation: 4.0
1st M.2 largest key size: 2580
Motherboard chipset: AMD B840
Product colour: Dark brown
Power source type: ATX
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Cooling type: Passive
Component for: PC
Audio Chip: Realtek ALC897
Audio output channels: 7.1 channels
PC health monitoring: Fan, Temperature, Voltage, Water cooling
Motherboard form factor: micro ATX
Motherboard chipset family: AMD
DirectX version: 12.0
Maximum resolution: 4096 x 2160 pixels
HDCP: Yes
Parallel processing technology support: Not supported
USB 2.0 connectors: 2
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 0
Number of SATA III connectors: 4
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
Number of chassis fan connectors: 2
EPS power connector (8-pin): Yes
Front panel connector: Yes
Number of CPU fan connectors: 2
TPM connector: Yes
Number of water pump connectors: 2
RGB LED pin header: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Number of RGB LED pin headers: 3
Number of EPS power connectors (8-pin): 1
Products per shipping (inner) case: 1 pc(s)
Supported memory clock speed (max): 8200 MHz
Supported memory clock speeds: 8200,8000,7950,7900,7800,7600,7400,7200,7000,6800,6666,6600,6400,6200,6000,5600,5200,4800,4400 MHz
ECC сompatibility: Non-ECC
Supported memory types: DDR5-SDRAM
Maximum internal memory: 256 GB
Maximum internal memory per slot: 64 GB
Number of memory slots: 4
Memory slots type: DIMM
Unbuffered memory: Yes
Memory channels: Dual-channel
Ethernet LAN: Yes
Wi-FI: No
Ethernet interface type: 2.5 Gigabit Ethernet
LAN controller: Realtek RTL8125
Weight: 1.05 kg
Bundled software: Norton® Internet Security (OEM version)rnLAN bandwidth management software
Batteries included: Yes
Screws included: Yes
Package height: 54 mm
Package weight: 11.3 kg
Package width: 265 mm
Package depth: 265 mm
Processor manufacturer: AMD
Processor socket: Socket AM5
Supported processor sockets: Socket AM5
Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
PS/2 ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 0
USB 2.0 ports quantity: 4
DisplayPorts quantity: 2
Line-in: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
HDMI ports quantity: 1
HDMI version: 2.1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
VGA (D-Sub) ports quantity: 0
DisplayPort version: 1.4
DVI-D ports quantity: 0
Microphone in: Yes
Headphone outputs: 1
Supported storage drive types: HDD & SSD
RAID support: Yes
Number of HDDs supported: 4
RAID levels: 0, 1, 10
Number of storage drives supported: 6
Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III
Warranty period: 3 year(s)
Height: 35 mm
Width: 244 mm
Depth: 24.4 mm
PCI-Ex1: 0
RAM-Slots: 4
MB-Format: micro-ATX
MB-Socket: AM5
PCI-Ex16: 2
USB3: 4-8
Onboard-CPU: No
PCI: 0
Serial-or-Paralel: No/No
