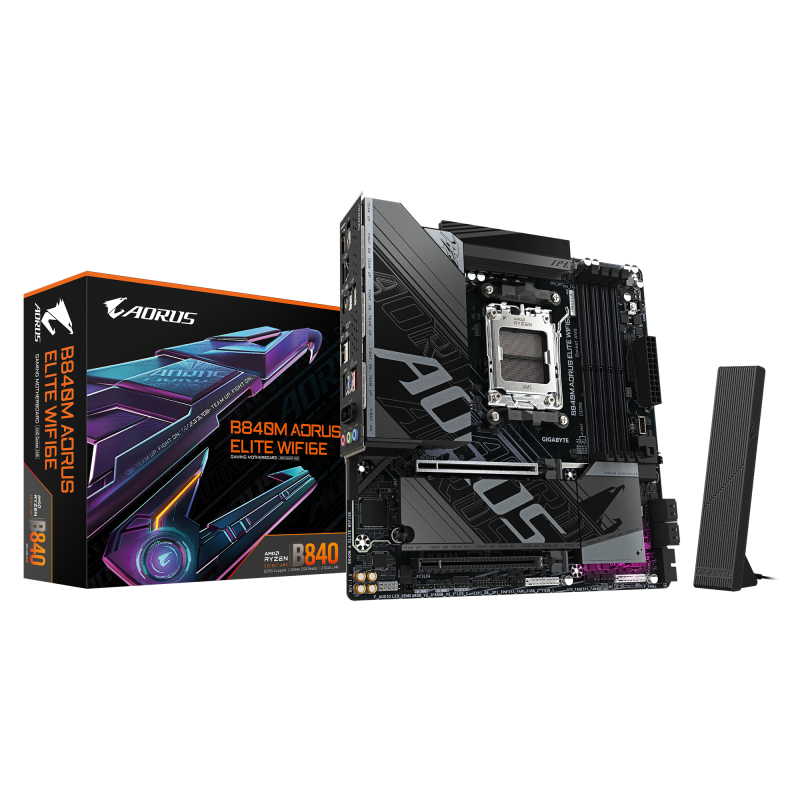

MB GIGABYTE B840M AORUS ELITE WIFI6E AM5

Placa de Baza GIGABYTE B840M AORUS ELITE WIFI6E AM5, 4x DDR5, 1x DP 1x HDMI, 1x PCIE 4.0 x16 1x PCIE 3.0 x16, 2x M.2, 4x SATA 6GB/s, mATX
Garantie: 36 luni


Specificatii tehnice

Lithium weight per battery: 0.07 g
Battery weight: 3 g
Number of battery cells: 1
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032
ACPI version: 5.0
Desktop Management Interface (DMI) version: 2.7
System Management BIOS (SMBIOS) version: 2.7
BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
Clear CMOS jumper: Yes
2nd M.2 largest key size: 22110
2nd M.2 highest PCI Express generation: 4.0
PCI Express x16 (Gen 3.x) slots: 1
Number of M.2 (M) slots: 2
PCI Express x16 (Gen 4.x) slots: 1
1st M.2 highest PCI Express generation: 4.0
1st M.2 largest key size: 2580
Motherboard chipset: AMD B840
Product colour: Dark brown
Power source type: ATX
Cooling type: Passive
Audio output channels: 7.1 channels
Component for: PC
Audio Chip: Realtek ALC897
PC health monitoring: Fan, Temperature, Voltage, Water cooling
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Motherboard form factor: micro ATX
Motherboard chipset family: AMD
DirectX version: 12.0
Maximum resolution: 4096 x 2160 pixels
HDCP: Yes
Parallel processing technology support: Not supported
USB 2.0 connectors: 2
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 0
Number of SATA III connectors: 4
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
EPS power connector (8-pin): Yes
Front panel connector: Yes
Number of CPU fan connectors: 2
Number of chassis fan connectors: 4
TPM connector: Yes
Number of water pump connectors: 2
RGB LED pin header: Yes
Number of RGB LED pin headers: 4
12V power connector: Yes
Number of EPS power connectors (8-pin): 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Products per shipping (inner) case: 1 pc(s)
Supported memory clock speed (max): 8200 MHz
Supported memory clock speeds: 8200,8000,7950,7900,7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5200,4800,4400 MHz
ECC сompatibility: Non-ECC
Supported memory types: DDR5-SDRAM
Maximum internal memory: 256 GB
Maximum internal memory per slot: 64 GB
Number of memory slots: 4
Memory slots type: DIMM
Unbuffered memory: Yes
Memory channels: Dual-channel
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Ethernet LAN: Yes
Wi-FI: Yes
WLAN controller model: Realtek RTL8852CE
Ethernet interface type: 2.5 Gigabit Ethernet
LAN controller: Realtek RTL8125
Bluetooth: Yes
Bluetooth version: 5.3
Weight: 1.5 kg
Batteries included: Yes
Bundled software: Norton® Internet Security (OEM version)rnLAN bandwidth management software
Antenna included: Yes
Screws included: Yes
Package weight: 15.9 kg
Package height: 68 mm
Package width: 270 mm
Package depth: 268 mm
Processor socket: Socket AM5
Supported processor sockets: Socket AM5
Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Processor manufacturer: AMD
DisplayPort version: 1.4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 0
USB 2.0 ports quantity: 4
Line-in: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
HDMI ports quantity: 1
HDMI version: 2.1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
DisplayPorts quantity: 1
VGA (D-Sub) ports quantity: 0
DVI-D ports quantity: 0
PS/2 ports quantity: 1
WiFi-AP antenna jack: 2
Microphone in: Yes
Headphone outputs: 1
Ethernet LAN (RJ-45) ports: 1
RAID levels: 0, 1, 10
Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III
Number of storage drives supported: 6
Number of HDDs supported: 4
Supported storage drive types: HDD & SSD
RAID support: Yes
Warranty period: 3 year(s)
Height: 35 mm
Width: 244 mm
Depth: 24.4 mm
PCI-Ex1: 0
RAM-Slots: 4
MB-Format: micro-ATX
MB-Socket: AM5
PCI-Ex16: 2
USB3: 4-8
Onboard-CPU: No
PCI: 0
Serial-or-Paralel: No/No
