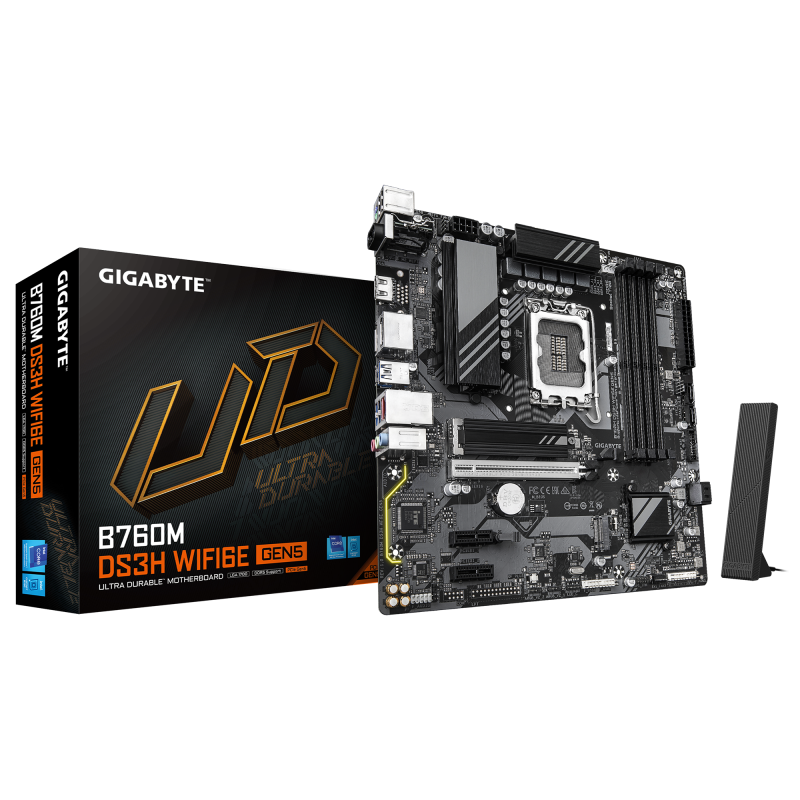

MB Gigabyte B760M DS3H WIFI6E GEN5

Placa de Baza GIGABYTE B760M DS3H WIFI6E GEN5 LGA1700, 4x DDR5, 1x HDMI 2x DP, 1x PCIE 5.0 x16 2x PCIE 3.0 x1, 2x M.2, 4x SATA 6GB/s, mATX
Garantie: 36 luni


Specificatii tehnice

Lithium weight per battery: 0.07 g
Battery weight: 3 g
Number of battery cells: 1
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032
BIOS memory size: 128 Mbit
BIOS type: UEFI AMI
Clear CMOS jumper: Yes
ACPI version: 5.0
Desktop Management Interface (DMI) version: 2.7
System Management BIOS (SMBIOS) version: 2.7
2nd M.2 highest PCI Express generation: 4.0
PCI Express x1 (Gen 3.x) slots: 2
PCI Express x16 (Gen 5.x) slots: 1
Number of M.2 (M) slots: 2
1st M.2 largest key size: 2280
2nd M.2 largest key size: 2280
1st M.2 highest PCI Express generation: 4.0
Motherboard chipset: Intel B760 Express
Power source type: ATX
Product colour: Dark brown
Cooling type: Passive
Audio Chip: Realtek ALC897
Audio output channels: 7.1 channels
Component for: PC
Motherboard form factor: micro ATX
Motherboard chipset family: Intel
PC health monitoring: Fan, Temperature, Voltage, Water cooling
Windows operating systems supported: Windows 10 x64, Windows 11 x64
HDCP: Yes
Parallel processing technology support: Not supported
DirectX version: 12.0
Maximum resolution: 4096 x 2304 pixels
12V power connector: Yes
Number of chassis fan connectors: 3
Number of RGB LED pin headers: 3
Number of EPS power connectors (8-pin): 1
S/PDIF out connector: Yes
Number of CPU fan connectors: 1
Front panel connector: Yes
TPM connector: Yes
RGB LED pin header: Yes
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 0
Number of SATA III connectors: 4
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
EPS power connector (8-pin): Yes
Country of origin: China
Products per shipping (inner) case: 1 pc(s)
Supported memory clock speeds: 5600,5200,4800,4400 MHz
Supported memory clock speed (max): 5600 MHz
Supported memory types: DDR5-SDRAM
Maximum internal memory: 256 GB
ECC сompatibility: ECC & Non-ECC
Maximum internal memory per slot: 64 GB
Number of memory slots: 4
Memory slots type: DIMM
Unbuffered memory: Yes
Memory channels: Dual-channel
Wi-FI: Yes
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Ethernet LAN: Yes
WLAN controller model: Intel Wi-Fi 6E AX210
Ethernet interface type: 2.5 Gigabit Ethernet
LAN controller: Realtek RTL8125
Bluetooth: Yes
Bluetooth version: 5.3
Weight: 1.1 kg
Batteries included: Yes
Bundled software: Norton® Internet Security (OEM version)
Antenna included: Yes
Screws included: Yes
Package height: 68 mm
Package weight: 12 kg
Package width: 270 mm
Package depth: 268 mm
Processor socket: LGA 1700
Supported processor sockets: LGA 1700
Processor manufacturer: Intel
HDMI ports quantity: 1
HDMI version: 2.1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 0
DisplayPort version: 1.2
VGA (D-Sub) ports quantity: 0
DVI-D ports quantity: 0
DisplayPorts quantity: 2
Line-in: Yes
WiFi-AP antenna jack: 2
PS/2 ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
Microphone in: Yes
Headphone outputs: 1
Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III
Number of storage drives supported: 6
Number of HDDs supported: 4
RAID levels: 0, 1, 5, 10
Supported storage drive types: HDD & SSD
RAID support: Yes
Warranty period: 3 year(s)
Height: 35 mm
Width: 244 mm
Depth: 24.4 mm
MB-Socket: 1700
RAM-Slots: 4
MB-Format: micro-ATX
PCI-Ex1: 2
PCI: 0
Serial-or-Paralel: No/No
USB3: 4-8
PCI-Ex16: 1
Onboard-CPU: No
