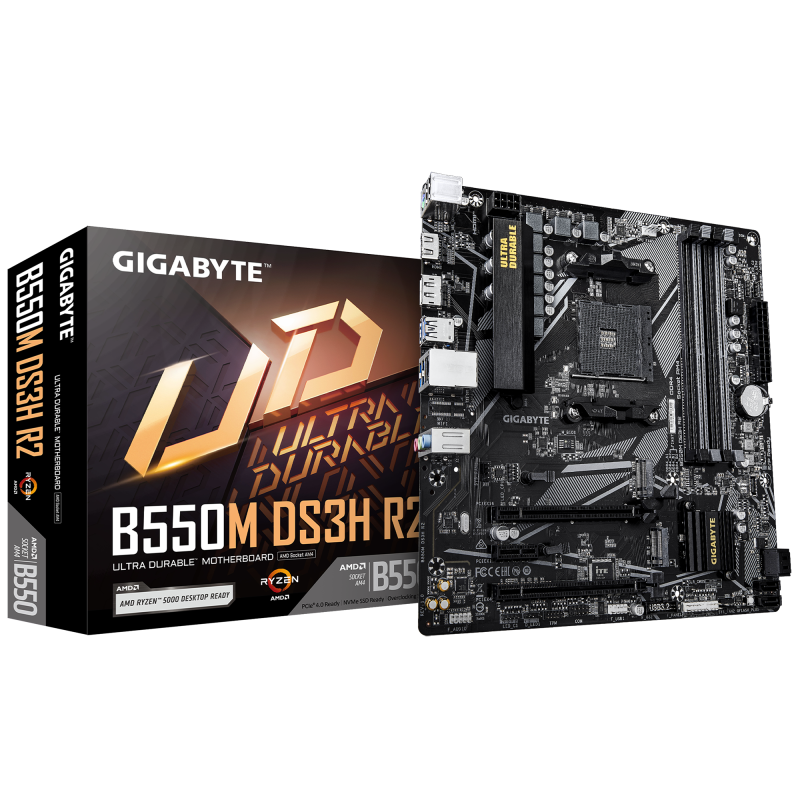

MB GIGABYTE B550M DS3H R2 AM4

Lithium weight per battery: 0.07 g

Battery weight: 3 g

Number of battery cells: 1

Battery technology: Lithium-Manganese Dioxide (LiMnO2)

Battery type: CR2032

BIOS memory size: 128 Mbit

BIOS type: UEFI AMI

Clear CMOS jumper: Yes

ACPI version: 5.0

Desktop Management Interface (DMI) version: 2.7

System Management BIOS (SMBIOS) version: 2.7

Product colour: Dark brown

Cooling type: Passive

Number of M.2 (M) slots: 2

PCI Express x16 (Gen 3.x) slots: 1

PCI Express x1 (Gen 3.x) slots: 1

PCI Express x16 (Gen 4.x) slots: 1

1st M.2 largest key size: 2280

2nd M.2 largest key size: 2280

1st M.2 highest PCI Express generation: 4.0

2nd M.2 highest PCI Express generation: 3.0

PC health monitoring: Fan, Temperature, Voltage

Audio Chip: Realtek ALC1220-VB

Power source type: ATX

Audio output channels: 7.1 channels

Component for: PC

Motherboard chipset: AMD B550

Windows operating systems supported: Windows 10 x64, Windows 11 x64

Motherboard form factor: micro ATX

Motherboard chipset family: AMD

Maximum resolution: 5120 x 2880 pixels

HDCP: Yes

Parallel processing technology support: Not supported

DirectX version: 12.0

USB 3.2 Gen 2 (3.1 Gen 2) connectors:

Number of SATA III connectors: 4

Front panel audio connector: Yes

ATX Power connector (24-pin): Yes

CPU fan connector: Yes

Number of chassis fan connectors: 2

EPS power connector (8-pin): Yes

Number of CPU fan connectors: 1

Number of EPS power connectors (8-pin): 1

Number of RGB LED pin headers: 5

USB 2.0 connectors: 1

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

Serial port headers: 1

Front panel connector: Yes

TPM connector: Yes

RGB LED pin header: Yes

Products per shipping (inner) case: 1 pc(s)

ECC сompatibility: ECC & Non-ECC

Maximum internal memory per slot: 32 GB

Supported memory clock speeds: 4733,4600,4400,4266,4133,4000,3866,3733,3600,3466,3400,3200,2933,2667,2400,2133 MHz

Supported memory clock speed (max): 4733 MHz

Number of memory slots: 4

Memory slots type: DIMM

Unbuffered memory: Yes

Memory channels: Dual-channel

Supported memory types: DDR4-SDRAM

Maximum internal memory: 128 GB

LAN controller: Realtek RTL8111H

Ethernet LAN: Yes

Ethernet interface type: Gigabit Ethernet

Wi-FI: No

Weight: 870 g

Bundled software: Norton® Internet Security (OEM version)rnLAN bandwidth management software

Batteries included: Yes

Screws included: Yes

Package height: 54 mm

Package width: 265 mm

Package depth: 265 mm

Package weight: 947 g

Warranty period: 3 year(s)

DVI-D ports quantity:

DisplayPorts quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4

HDMI version: 2.1

HDMI ports quantity: 1

DisplayPort version: 1.4

USB 2.0 ports quantity: 2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:

Processor manufacturer: AMD

Processor socket: Socket AM4

Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series

Supported processor sockets: Socket AM4

Microphone in: Yes

Headphone outputs: 1

Ethernet LAN (RJ-45) ports: 1

PS/2 ports quantity: 1

VGA (D-Sub) ports quantity: 0

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity:

Line-in: Yes

RAID support: Yes

Supported storage drive types: HDD & SSD

Supported storage drive interfaces: M.2, PCI Express 3.0, PCI Express 4.0, SATA III

Number of HDDs supported: 4

RAID levels: 0, 1, 10

Number of storage drives supported: 6

Height: 35 mm

Width: 244 mm

Depth: 24.4 mm

PCI-Ex16: 2

RAM-Slots: 4

MB-Format: micro-ATX

MB-Socket: AM4

PCI: 0

USB3: 4-8

PCI-Ex1: 1

Onboard-CPU: No

Garantia Produsului: 36 luni
