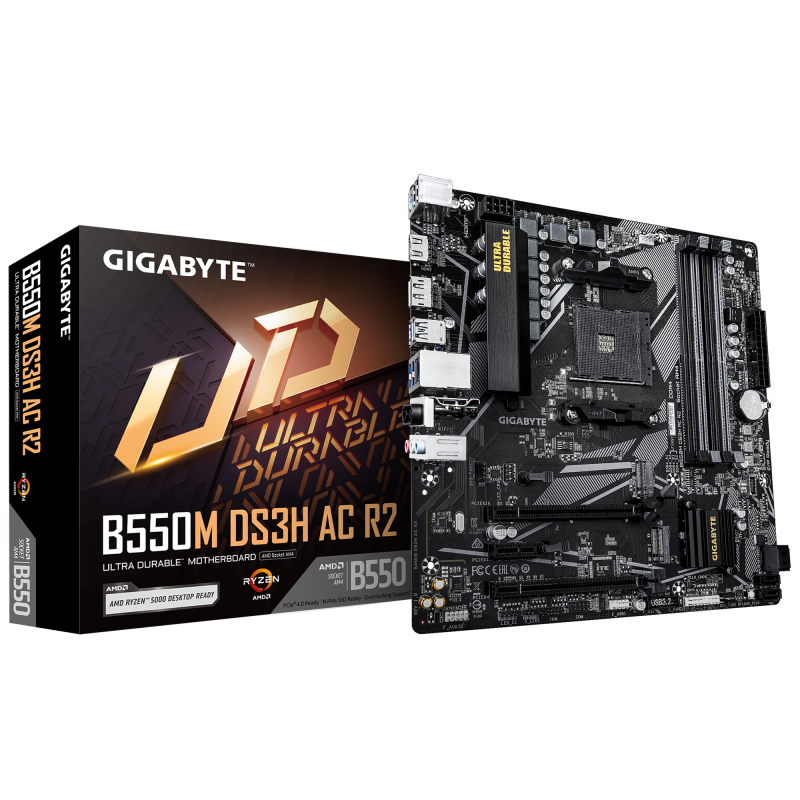

MB GIGABYTE B550M DS3H AC R2 AM4

Placa de Baza GIGABYTE B550M DS3H AC R2 AM4, 4x DDR4, 1x DP 1x HDMI, 1x PCIE 4.0 x16 1x PCIE 3.0 x16 1x PCIE 3.0 x1, 2x M.2, 4x SATA 6GB/s, mATX
Garantie: 36 luni


Specificatii tehnice

Lithium weight per battery: 0.07 g
Battery weight: 3 g
Number of battery cells: 1
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032
BIOS memory size: 128 Mbit
ACPI version: 5.0
Desktop Management Interface (DMI) version: 2.7
System Management BIOS (SMBIOS) version: 2.7
BIOS type: UEFI AMI
Clear CMOS jumper: Yes
PCI Express x16 (Gen 3.x) slots: 1
PCI Express x1 (Gen 3.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 2
1st M.2 largest key size: 2280
2nd M.2 largest key size: 2280
1st M.2 highest PCI Express generation: 4.0
2nd M.2 highest PCI Express generation: 3.0
Power source type: ATX
PC health monitoring: Fan, Temperature, Voltage
Audio Chip: Realtek ALC1220-VB
Product colour: Dark brown
Audio output channels: 7.1 channels
Component for: PC
Motherboard form factor: micro ATX
Motherboard chipset family: AMD
Cooling type: Passive
Motherboard chipset: AMD B550
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Maximum resolution: 5120 x 2880 pixels
HDCP: Yes
Parallel processing technology support: Not supported
On-board graphics card: No
DirectX version: 12.0
Number of CPU fan connectors: 1
Number of RGB LED pin headers: 5
Number of EPS power connectors (8-pin): 1
USB 2.0 connectors: 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Serial port headers: 1
Front panel connector: Yes
TPM connector: Yes
RGB LED pin header: Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 0
Number of SATA III connectors: 4
Number of SATA II connectors: 0
Number of SATA connectors: 0
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
Number of chassis fan connectors: 2
EPS power connector (8-pin): Yes
Products per shipping (inner) case: 1 pc(s)
Maximum internal memory per slot: 32 GB
Supported memory clock speed (max): 4733 MHz
Supported memory clock speeds: 4733,4600,4400,4266,4133,4000,3866,3733,3600,3466,3400,3200,2933,2667,2400,2133 MHz
Number of memory slots: 4
Memory slots type: DIMM
Unbuffered memory: Yes
ECC сompatibility: ECC & Non-ECC
Supported memory types: DDR4-SDRAM
Memory channels: Dual-channel
Maximum internal memory: 128 GB
WLAN controller model: Realtek RTL8821CE
Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
Wi-FI: Yes
Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet
LAN controller: Realtek RTL8111H
Bluetooth: Yes
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Bluetooth version: 5.0
Weight: 980 g
mSATA ports quantity: 0
Antenna included: Yes
Screws included: Yes
Bundled software: Norton® Internet Security (OEM version)rnLAN bandwidth management software
Batteries included: Yes
Package height: 68 mm
Package width: 270 mm
Package depth: 268 mm
Package weight: 1.07 kg
Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series
Supported processor sockets: Socket AM4
Processor socket: Socket AM4
Processor manufacturer: AMD
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
DisplayPort version: 1.4
Line-in: Yes
HDMI ports quantity: 1
HDMI version: 2.1
DisplayPorts quantity: 1
VGA (D-Sub) ports quantity: 0
PS/2 ports quantity: 1
WiFi-AP antenna jack: 2
DVI-D ports quantity: 0
Ethernet LAN (RJ-45) ports: 1
Microphone in: Yes
Headphone outputs: 1
Supported storage drive interfaces: M.2, PCI Express 3.0, PCI Express 4.0, SATA III
RAID levels: 0, 1, 10
Number of HDDs supported: 4
Number of storage drives supported: 6
RAID support: Yes
Supported storage drive types: HDD & SSD
Warranty period: 3 year(s)
Height: 35 mm
Width: 244 mm
Depth: 24.4 mm
PCI-Ex16: 2
RAM-Slots: 4
MB-Format: micro-ATX
MB-Socket: AM4
PCI: 0
Serial-or-Paralel: No/No
USB3: 4-8
PCI-Ex1: 1
Onboard-CPU: No
