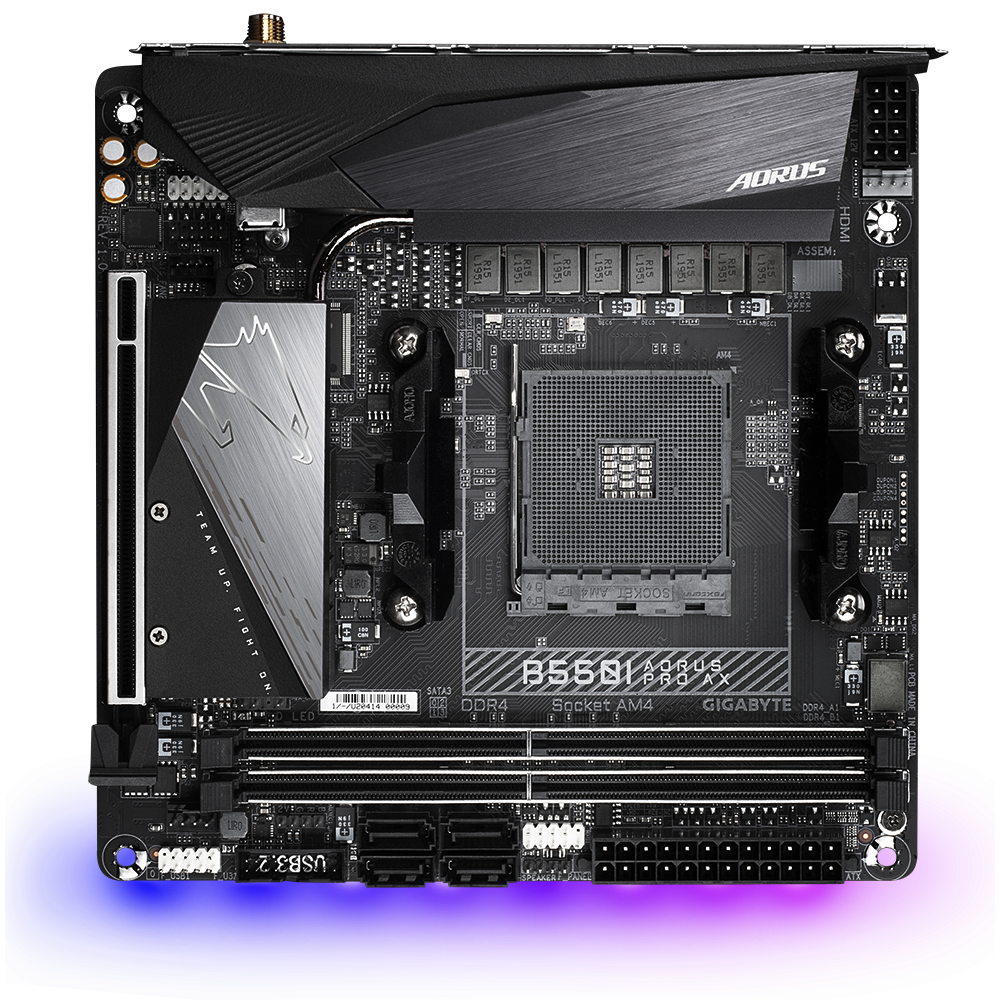

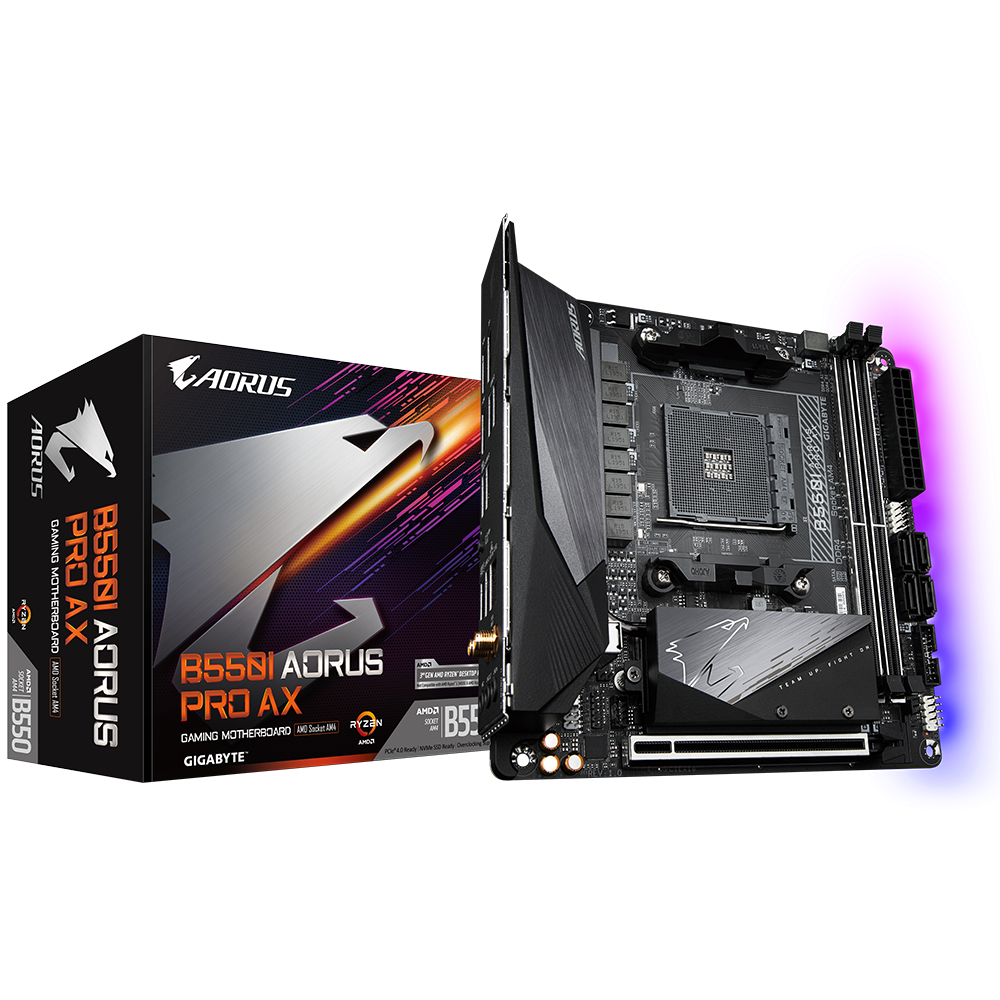

MB GIGABYTE B550I AORUS PRO AX AM4

Placa de baza Gigabyte B550I AORUS PRO AX AM4 CPU AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors (Please refer "CPU Support List" for more information.) Chipset AMD B550 Memory 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory AMD Ryzen™ 5000 series Processors/ 3rd Gen AMD Ryzen™ Processors: Support for DDR4 5100(O.C.) / 5000(O.C.) /4866(O.C.) / 4600(O.C.) / 4400 (O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules 3rd Gen AMD Ryzen™ with Radeon™ Graphics processors: Support for DDR4 5300(O.C.)/5200(O.C.)/5000(O.C.)/4866(O.C.)/4600 (O.C.)/4400(O.C.)/4000(O.C.)/3600(O.C.)/3333 (O.C.)/3200/2933/2667/2400/2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.) Onboard Graphics Integrated in the New Generation AMD Ryzen™ with Radeon™ Graphics processors: 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR. 2 x HDMI ports, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. Support for up to 3 displays at the same time Maximum shared memory of 16 GB Audio Realtek® ALC1220-VB codec * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. LAN Realtek® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) Wireless Communication module Intel® Wi-Fi 6 AX200 WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual- Band BLUETOOTH 5 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate https://www.gigabyte.com/Motherboard/B550I-AORUS-PRO-AX-rev-10/sp#sp
Garantie: 36 luni


Specificatii tehnice

Lithium weight per battery: 0.07 g
Battery weight: 3 g
Number of battery cells: 1
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032
ACPI version: 5.0
Desktop Management Interface (DMI) version: 2.7
System Management BIOS (SMBIOS) version: 2.7
BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
Clear CMOS jumper: Yes
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 2
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Motherboard chipset: AMD B550
Audio output channels: 7.1 channels
Motherboard chipset family: AMD
PC health monitoring: Fan, Temperature, Voltage
Motherboard form factor: mini ITX
Audio Chip: Realtek ALC1220-VB
Component for: Nettop
Number of displays supported: 3
DirectX version: 12.0
HDCP: Yes
On-board graphics card: No
Maximum resolution: 5120 x 2880 pixels
Parallel processing technology support: Not supported
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 0
Number of SATA III connectors: 4
Number of SATA II connectors: 0
Number of SATA connectors: 0
Number of Parallel ATA connectors: 0
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
Number of chassis fan connectors: 2
Front panel connector: Yes
RGB LED pin header: Yes
Total number of SATA connectors: 4
12V power connector: Yes
USB 2.0 connectors: 1
Harmonized System (HS) code: 84733020
Country of origin: Taiwan
Supported memory clock speeds: 2133,2400,2667,2933,3200,3400,3466,3600,3733,3866,4000,4400,4600,4800,5100,5200,5300 MHz
Supported memory clock speed (max): 5300 MHz
ECC сompatibility: ECC & Non-ECC
Memory slots type: DIMM
Unbuffered memory: Yes
Number of memory slots: 2
Supported memory types: DDR4-SDRAM
Memory channels: Dual-channel
Maximum internal memory: 64 GB
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Ethernet LAN: Yes
Wi-FI: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
Bluetooth version: 5.3
Weight: 790 g
mSATA ports quantity: 0
Package width: 265 mm
Package depth: 235 mm
Package height: 97 mm
Package weight: 1.4 kg
Maximum number of SMP processors: 1
Maximum internal memory supported by processor: 64 GB
Processor manufacturer: AMD
Compatible processor series: AMD Ryzen 3000 Series
Processor socket: Socket AM4

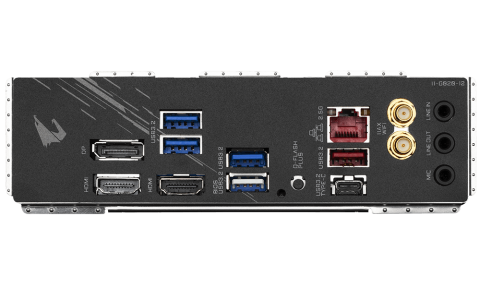

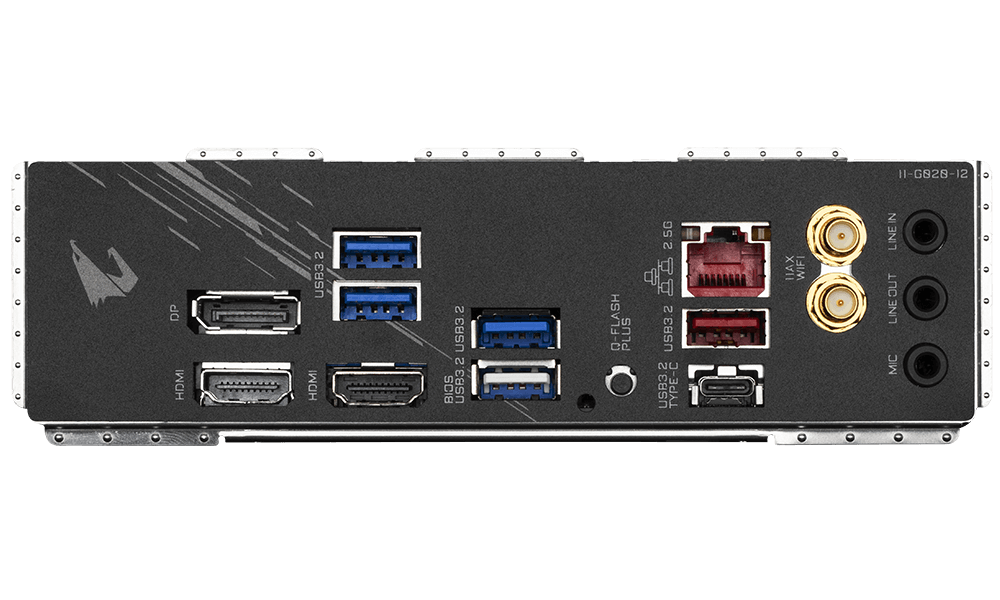

DVI-D ports quantity: 0
HDMI ports quantity: 2
DisplayPorts quantity: 1
VGA (D-Sub) ports quantity: 0
USB 2.0 ports quantity: 0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
DisplayPort version: 1.4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
HDMI version: 2.1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
PS/2 ports quantity: 0
eSATA ports quantity: 0
Firewire (IEEE 1394) ports: 0
RAID levels: 0, 1, 10
Supported storage drive interfaces: M.2, SATA
Number of storage drives supported: 6
Number of HDDs supported: 4
RAID support: Yes
Height: 35 mm
Width: 170 mm
Depth: 170 mm
CPU încorporat: No
PCI: 0
Serial-or-Paralel: No/No
