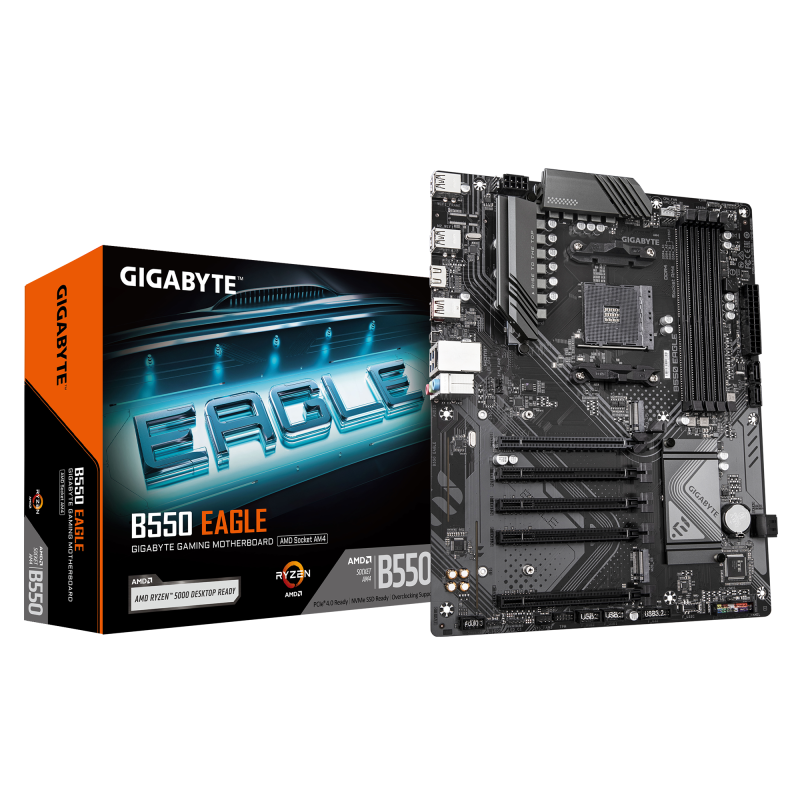

MB Gigabyte B550 EAGLE AM4

Placa de Baza GIGABYTE B550 EAGLE AM4, 4x DDR4, 1x HDMI, 1x PCIE 4.0 x16 4x PCIE 3.0 x16, 2x M.2, 4x SATA 6GB/s, ATX
Garantie: 36 luni


Specificatii tehnice

Lithium weight per battery: 0.07 g
Battery weight: 3 g
Number of battery cells: 1
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032
ACPI version: 5.0
Desktop Management Interface (DMI) version: 2.7
System Management BIOS (SMBIOS) version: 2.7
BIOS memory size: 128 Mbit
BIOS type: UEFI AMI
Clear CMOS jumper: Yes
1st M.2 highest PCI Express generation: 4.0
1st M.2 largest key size: 22110
2nd M.2 largest key size: 22110
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 2
PCI Express x1 (Gen 3.x) slots: 4
2nd M.2 highest PCI Express generation: 3.0
Power source type: ATX
Product colour: Dark brown
Audio Chip: Realtek ALC897
Cooling type: Passive
Motherboard chipset: AMD B550
Component for: PC
Audio output channels: 7.1 channels
Motherboard chipset family: AMD
Motherboard form factor: ATX
PC health monitoring: Fan, Temperature, Voltage, Water cooling
Windows operating systems supported: Windows 10 x64, Windows 11 x64
HDCP: Yes
Parallel processing technology support: Not supported
DirectX version: 12.0
Maximum resolution: 4096 x 2160 pixels
USB 2.0 connectors: 2
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 0
Number of SATA III connectors: 4
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
EPS power connector (8-pin): Yes
Front panel connector: Yes
Number of CPU fan connectors: 2
TPM connector: Yes
RGB LED pin header: Yes
Number of RGB LED pin headers: 5
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Number of chassis fan connectors: 3
Number of EPS power connectors (8-pin): 1
Number of water pump connectors: 1
Products per shipping (inner) case: 1 pc(s)
Supported memory clock speed (max): 3200 MHz
Supported memory clock speeds: 3200,2933,2667,2400,2133 MHz
Maximum internal memory per slot: 32 GB
ECC сompatibility: ECC & Non-ECC
Number of memory slots: 4
Memory slots type: DIMM
Unbuffered memory: Yes
Supported memory types: DDR4-SDRAM
Maximum internal memory: 128 GB
Memory channels: Dual-channel
Ethernet LAN: Yes
Wi-FI: No
Ethernet interface type: Gigabit Ethernet
LAN controller: Realtek RTL8111H
Weight: 12.5 kg
Bundled software: Norton® Internet Security (OEM version)rnLAN bandwidth management software
Batteries included: Yes
Screws included: Yes
Package width: 335 mm
Package depth: 270 mm
Package height: 80 mm
Package weight: 1.48 kg
Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series
Processor socket: Socket AM4
Processor manufacturer: AMD
Supported processor sockets: Socket AM4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 0
USB 2.0 ports quantity: 4
Line-in: Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
HDMI ports quantity: 1
HDMI version: 2.1
VGA (D-Sub) ports quantity: 0
DVI-D ports quantity: 0
Ethernet LAN (RJ-45) ports: 1
Microphone in: Yes
Headphone outputs: 1
RAID support: Yes
Supported storage drive types: HDD & SSD
RAID levels: 0, 1, 10
Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III
Number of storage drives supported: 6
Number of HDDs supported: 4
Warranty period: 3 year(s)
Depth: 24.4 mm
Width: 30.5 mm
Height: 35 mm
MB-Socket: AM5
PCI-Ex16: 5
MB-Format: ATX
PCI-Ex1: 0
RAM-Slots: 4
USB3: 4-8
Onboard-CPU: No
PCI: 0
Serial-or-Paralel: No/No
