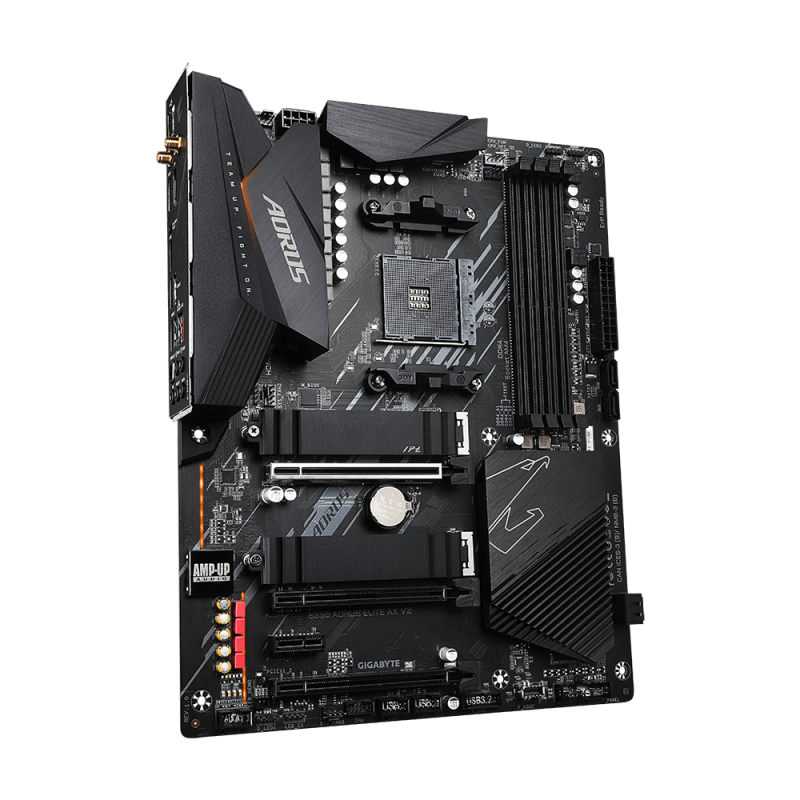

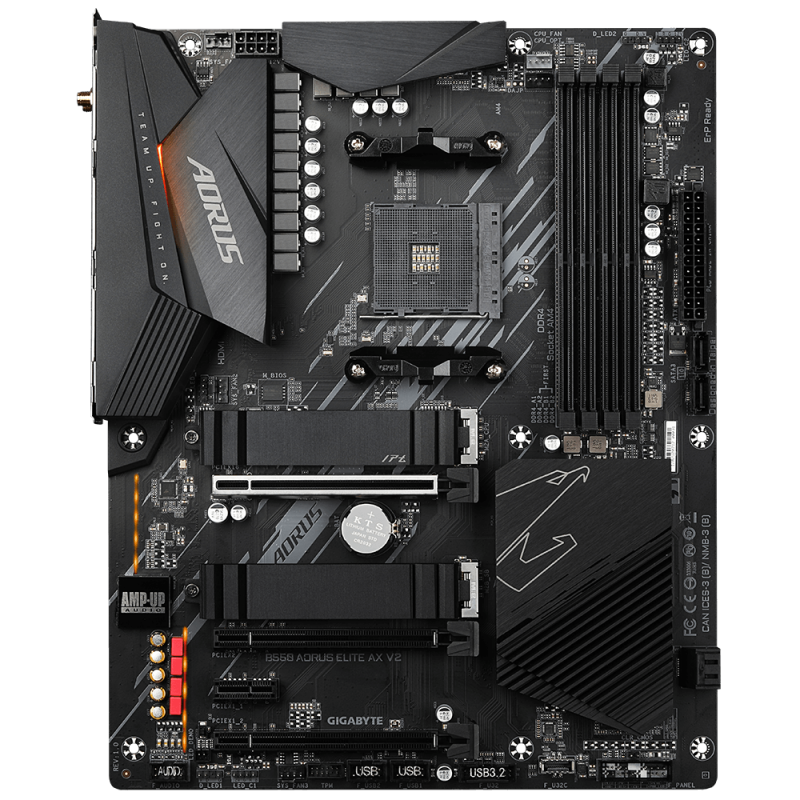

MB Gigabyte B550 AORUS ELITE AX V2 AM4

Placa de baza Gigabyte B550 AORUS ELITE AX V2 AM4 / B550 AORUS ELITE AX V2 AMD B550 AORUS Motherboard with 12+2 Phases Digital Twin Power Design, Enlarged Surface Heatsinks, Dual PCIe 4.0/3.0 x4 M.2 with Dual Thermal Guards, Intel® WiFi 6 802.11ax, 2.5GbE LAN, Front USB Type-C™, RGB FUSION 2.0, Q-Flash Plus Supports AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs 12+2 Phases Digital Twin Power Design with 50A DrMOS Advanced Thermal Design with Enlarged Surface Heatsinks Ultra Durable™ PCIe 4.0 x16 Slot Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Dual Thermal Guards Onboard Intel® WiFi 6 802.11ax 2T2R & BT5 with AORUS Antenna AMP-UP Audio with ALC1200 and WIMA Capacitors Blazing Fast 2.5GbE LAN with Bandwidth Management Front USB 3.2 Gen1 Type-C™ and DisplayPort & HDMI for Multiple Display RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card Pre-installed IO Shield for Easy and Quick Installation https://www.gigabyte.com/Motherboard/B550-AORUS-ELITE-AX-V2-rev-10/sp#sp
Garantie: 36 luni


Specificatii tehnice

Lithium weight per battery: 0.07 g
Battery weight: 3 g
Number of battery cells: 1
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032
ACPI version: 5.0
Desktop Management Interface (DMI) version: 2.7
System Management BIOS (SMBIOS) version: 2.7
BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
Clear CMOS jumper: Yes
PCI Express x1 (Gen 3.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 2
PCI Express x16 slots: 2
PC health monitoring: CPU, Fan, Temperature, Voltage
Supported processor sockets (cooler): Socket AM4
Power source type: ATX
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Audio Chip: Realtek ALC1200
Motherboard chipset: AMD B550
Component for: PC
Audio output channels: 7.1 channels
Motherboard chipset family: AMD
Motherboard form factor: ATX
Maximum resolution: 5120 x 2880 pixels
DirectX version: 12.0
Parallel processing technology support: Not supported
Front panel connector: Yes
TPM connector: Yes
RGB LED pin header: Yes
Total number of SATA connectors: 4
12V power connector: Yes
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 0
Number of SATA III connectors: 4
Number of SATA II connectors: 0
Number of Parallel ATA connectors: 0
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
Number of SATA connectors: 4
Number of chassis fan connectors: 3
Country of origin: China
Supported memory clock speeds: 2133,2400,2667,2933,3200,3333,3600,4000,4400,4600,4733 MHz
Supported memory clock speed (max): 4733 MHz
Supported memory module capacities: 8GB, 16GB, 32GB
ECC сompatibility: ECC & Non-ECC
Number of memory slots: 4
Memory slots type: DIMM
Unbuffered memory: Yes
Supported memory types: DDR4-SDRAM
Maximum internal memory: 128 GB
Memory channels: Dual-channel
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Ethernet LAN: Yes
Wi-FI: Yes
WLAN controller model: Intel Wi-Fi 6E AX210
Ethernet interface type: 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Bluetooth version: 5.2
Weight: 1.12 kg
Package width: 335 mm
Package depth: 270 mm
Package height: 80 mm
Package weight: 1.89 kg
Supported processor sockets: Socket AM4
Maximum internal memory supported by processor: 128 GB
Compatible processor series: AMD Ryzen 3000 Series
Processor socket: Socket AM4
Processor manufacturer: AMD
Maximum number of SMP processors: 1
PS/2 ports quantity: 0
eSATA ports quantity: 0
Firewire (IEEE 1394) ports: 0
WiFi-AP antenna jack: 2
USB 2.0 ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
HDMI ports quantity: 1
S/PDIF out port: Yes
DVI-D ports quantity: 0
DisplayPorts quantity: 1
VGA (D-Sub) ports quantity: 0
Microphone in: Yes
Headphone outputs: 1
Supported storage drive types: HDD & SSD
RAID support: Yes
RAID levels: 0, 1, 10
Number of storage drives supported: 6
Supported storage drive interfaces: M.2, SATA III
Number of HDDs supported: 4
Height: 35 mm
Width: 30.5 mm
Depth: 24.4 mm
CPU încorporat: No
PCI: 0
Serial-or-Paralel: No/No
