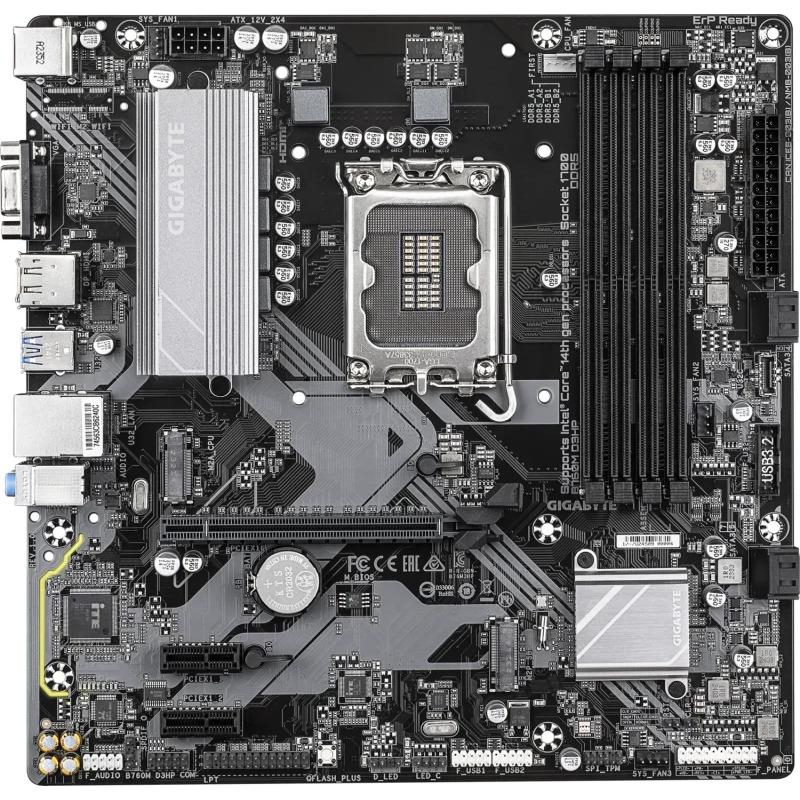

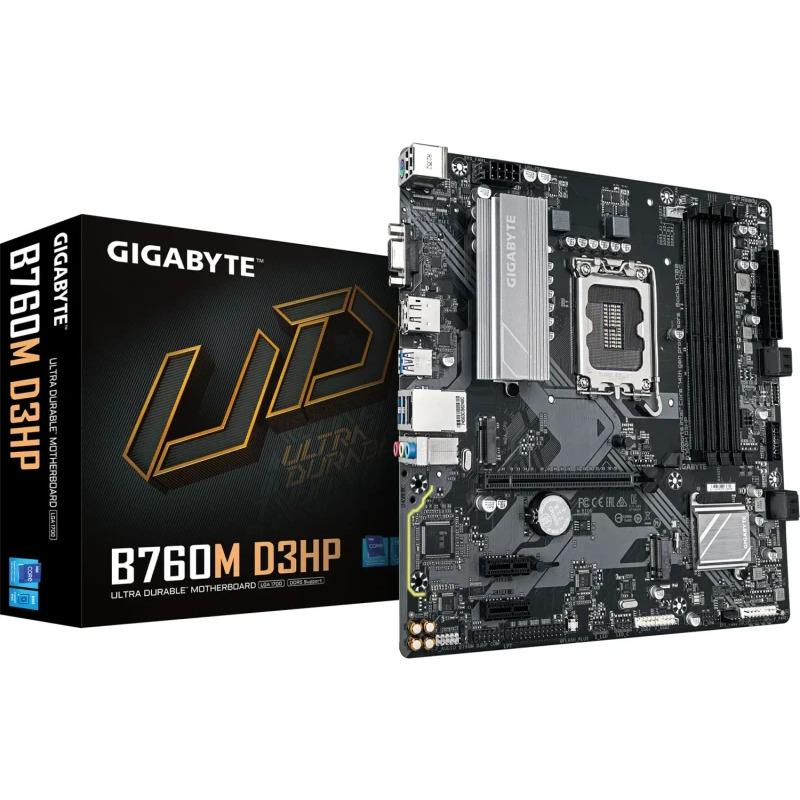

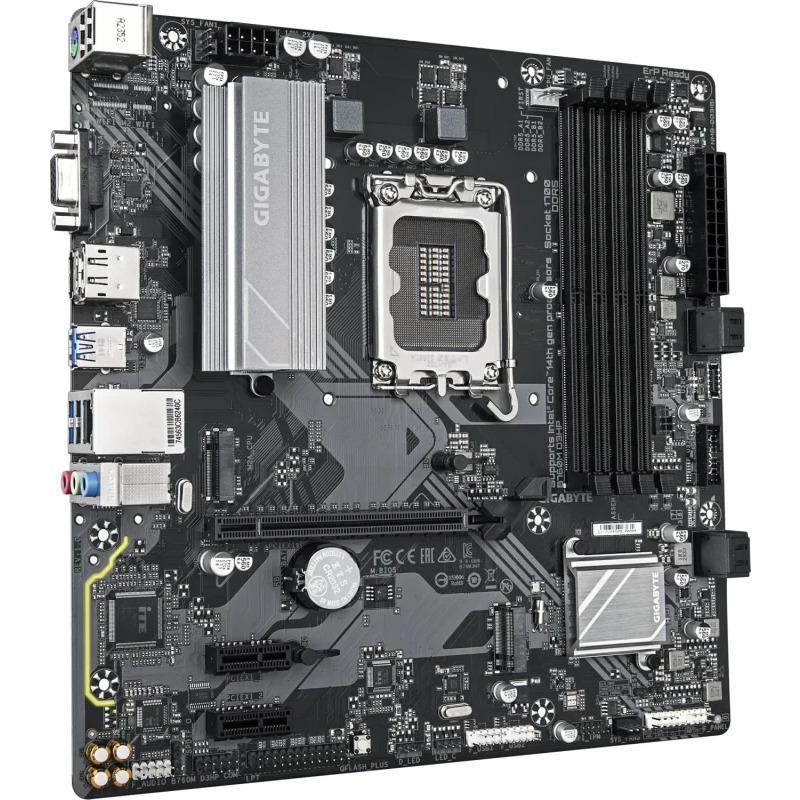

MB GB B760M D3HP DDR5 LGA1700

Placa de Baza GIGABYTE B760M D3HP LGA1700, 4x DDR5, 1x D-Sub 1x HDMI 1x DP, 1x PCIE 4.0 x16 2x PCIE 3.0 x1, 2x M.2, 4x SATA 6GB/s, mATX
Garantie: 36 luni


Specificatii tehnice

Lithium weight per battery: 0.07 g
Battery weight: 3 g
Number of battery cells: 1
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032
BIOS memory size: 128 Mbit
ACPI version: 5.0
Desktop Management Interface (DMI) version: 2.7
System Management BIOS (SMBIOS) version: 2.7
BIOS type: UEFI AMI
Clear CMOS jumper: Yes
2nd M.2 highest PCI Express generation: 4.0
PCI Express x1 (Gen 3.x) slots: 2
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 2
1st M.2 largest key size: 2280
2nd M.2 largest key size: 2280
1st M.2 highest PCI Express generation: 4.0
Motherboard chipset: Intel B760 Express
Product colour: Brown
Power source type: ATX
Audio output channels: 7.1 channels
Component for: PC
Windows operating systems supported: Windows 10, Windows 11
Motherboard form factor: micro ATX
Motherboard chipset family: Intel
PC health monitoring: Fan, Temperature, Voltage, Water cooling
DirectX version: 12.0
Maximum resolution: 4096 x 2304 pixels
Parallel processing technology support: Not supported
HDCP: Yes
12V power connector: Yes
Front panel connector: Yes
TPM connector: Yes
RGB LED pin header: Yes
USB 2.0 connectors: 2
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 0
Number of SATA III connectors: 4
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
EPS power connector (8-pin): Yes
Number of CPU fan connectors: 1
S/PDIF out connector: Yes
Number of chassis fan connectors: 3
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Serial port headers: 1
Number of EPS power connectors (8-pin): 1
Parallel connector: Yes
Number of RGB LED pin headers: 2
Products per shipping (inner) case: 1 pc(s)
Supported memory clock speeds: 4400,4800,5200,5600 MHz
Supported memory clock speed (max): 5600 MHz
Supported memory types: DDR5-SDRAM
Maximum internal memory: 256 GB
ECC сompatibility: ECC & Non-ECC
Maximum internal memory per slot: 64 GB
Number of memory slots: 4
Memory slots type: DIMM
Unbuffered memory: Yes
Memory channels: Dual-channel
LAN controller: Realtek RTL8111H
Ethernet interface type: Gigabit Ethernet
Wi-FI: No
Ethernet LAN: Yes
Weight: 720 g
Bundled software: Norton Internet Security
Batteries included: Yes
Screws included: Yes
Package width: 270 mm
Package depth: 268 mm
Package weight: 12.1 kg
Package height: 68 mm
Processor manufacturer: Intel
Processor socket: LGA 1700
Supported processor sockets: LGA 1700

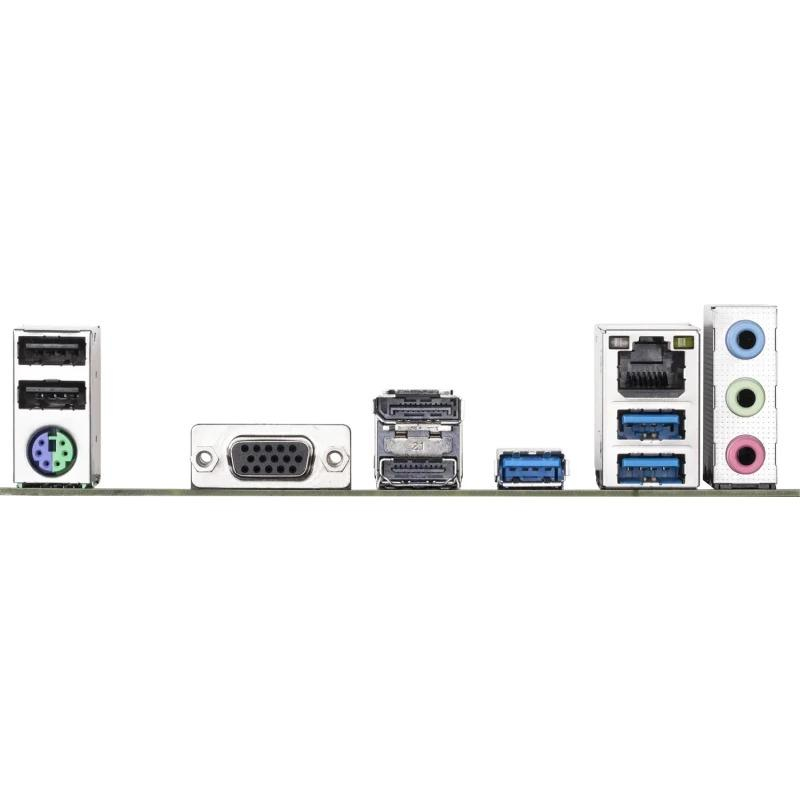

PS/2 ports quantity: 1
Line-in: Yes
DisplayPort version: 1.2
DisplayPorts quantity: 1
DVI-D ports quantity: 0
VGA (D-Sub) ports quantity: 1
HDMI ports quantity: 1
HDMI version: 2.1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 0
Ethernet LAN (RJ-45) ports: 1
Microphone in: Yes
Headphone outputs: 1
RAID support: Yes
Supported storage drive types: HDD & SSD
Number of HDDs supported: 4
RAID levels: 0, 1, 5, 10
Number of storage drives supported: 6
Supported storage drive interfaces: M.2, SATA III
Warranty period: 3 year(s)
Depth: 24.4 mm
Height: 35 mm
Width: 244 mm
MB-Socket: 1700
RAM-Slots: 4
MB-Format: micro-ATX
PCI-Ex1: 2
USB3: 4-8
PCI-Ex16: 1
Onboard-CPU: No
PCI: 0
Serial-or-Paralel: No/No
