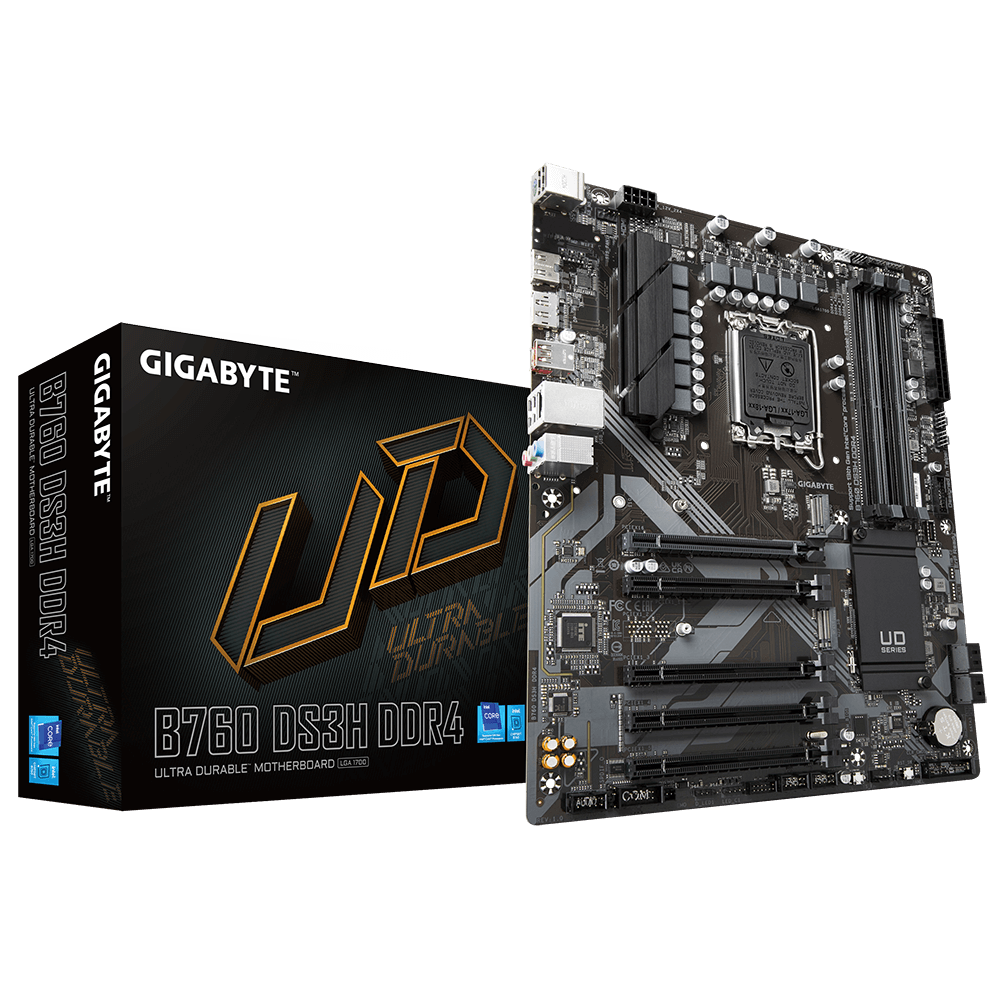

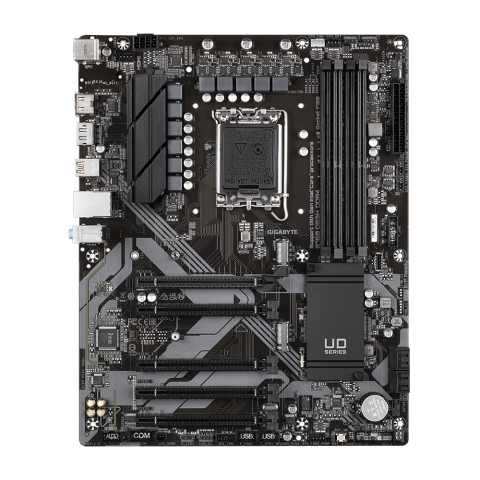

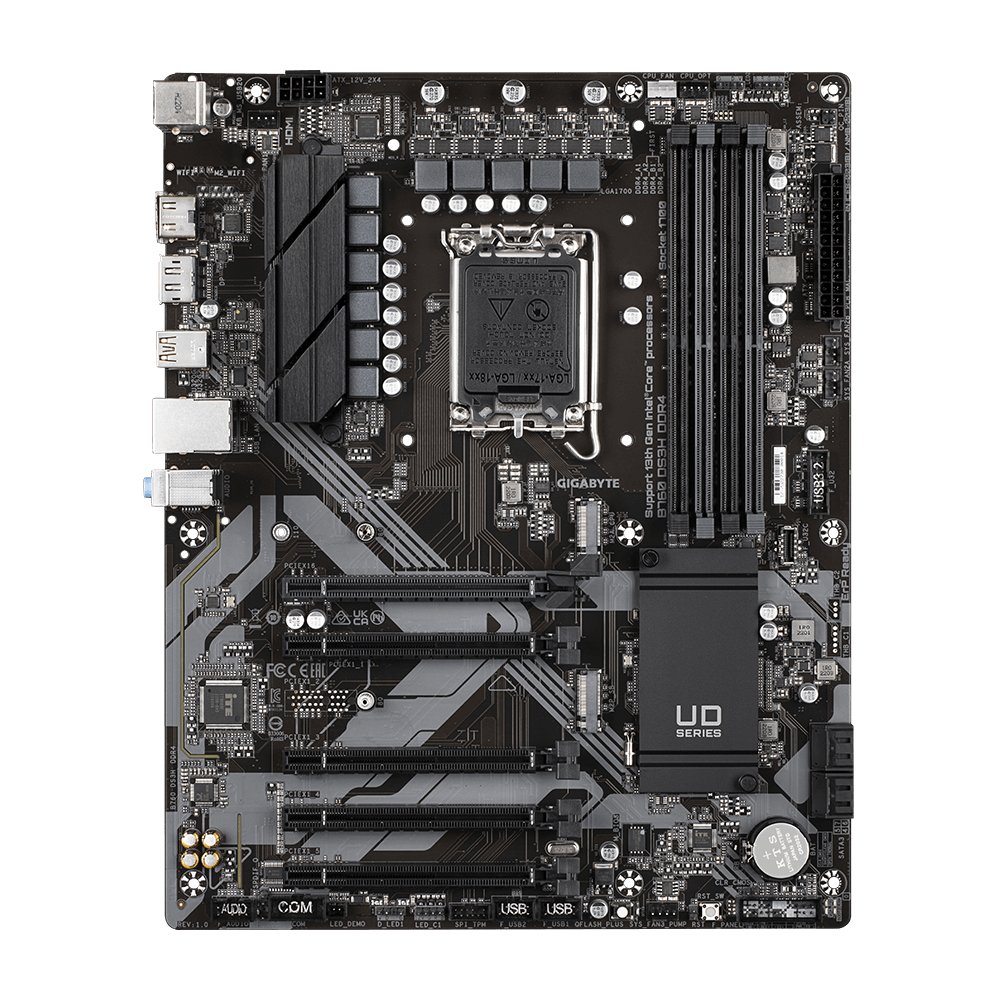

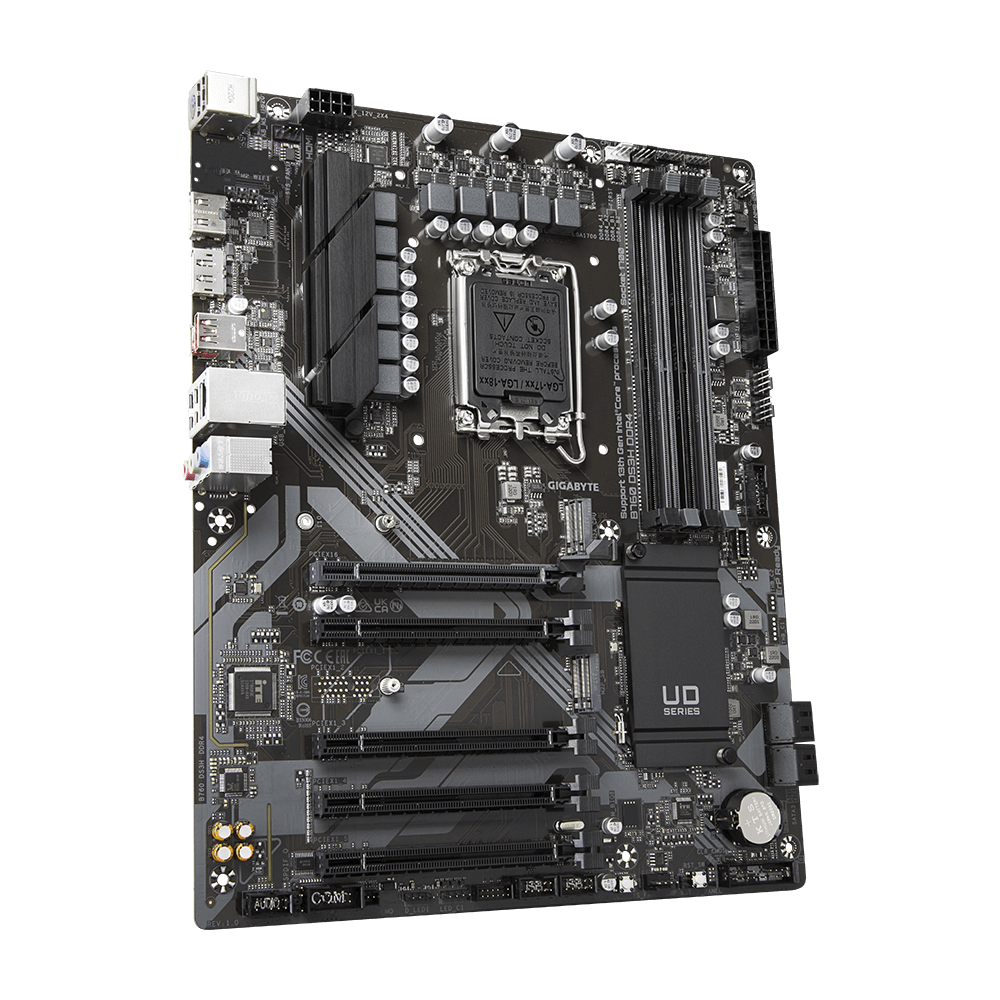

MB GB B760 DS3H DDR4 LGA1700 DDR4

Placa de baza Gigabyte B760 DS3H DDR4 LGA1700 DDR4, 4x sloturi ram, max. 128GB, frecventa maxima suportata 5333MHz, 1x DisplayPort, 1x HDMI, 5x PCIe x16, 2x M.2, 4x conectori SATA 6GB/s, 1x LAN 1Gbps, ATX
Garantie: 36 luni


Specificatii tehnice

Lithium weight per battery: 0.07 g
Battery weight: 3 g
Number of battery cells: 1
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032
ACPI version: 5.0
Desktop Management Interface (DMI) version: 2.7
System Management BIOS (SMBIOS) version: 2.7
BIOS memory size: 128 Mbit
BIOS type: UEFI AMI
Clear CMOS jumper: Yes
Number of M.2 (M) slots: 2
PCI Express x16 slots: 5
Motherboard chipset: Intel B760 Express
Motherboard form factor: ATX
Motherboard chipset family: Intel
PC health monitoring: Fan, Temperature, Voltage, Water cooling
Audio output channels: 7.1 channels
Component for: PC
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Maximum resolution: 4096 x 2304 pixels
Total number of SATA connectors: 4
12V power connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Serial port headers: 1
Front panel connector: Yes
TPM connector: Yes
RGB LED pin header: Yes
S/PDIF out connector: Yes
USB 2.0 connectors: 2
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 0
Number of SATA III connectors: 4
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
EPS power connector (8-pin): Yes
Country of origin: China
Number of memory slots: 4
Memory slots type: DIMM
Unbuffered memory: Yes
ECC сompatibility: ECC & Non-ECC
Maximum internal memory: 128 GB
Supported memory types: DDR4-SDRAM
Supported memory module capacities: 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB
Supported memory clock speed (max): 5333 MHz
Ethernet interface type: Gigabit Ethernet
Bundled software: Norton Internet Security
Cables included: SATA
Package width: 335 mm
Package depth: 270 mm
Package weight: 1.31 kg
Maximum internal memory supported by processor: 128 GB
Processor socket: LGA 1700
Supported processor sockets: LGA 1700
Microphone in: Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
DisplayPort version: 1.2
VGA (D-Sub) ports quantity: 0
HDMI version: 2.0
USB 3.2 Gen 2x2 Type-C ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 0
USB 2.0 ports quantity: 4
USB connector type: USB Type-A, USB Type-C
PS/2 ports quantity: 1
Headphone outputs: 3
Number of HDDs supported: 4
RAID levels: 0, 1, 5, 10
RAID support: Yes
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III
Number of storage drives supported: 6
Height: 35 mm
Width: 30.5 mm
Depth: 24.4 mm
PCI: 0
Serial-or-Paralel: No/No
Onboard-CPU: No
