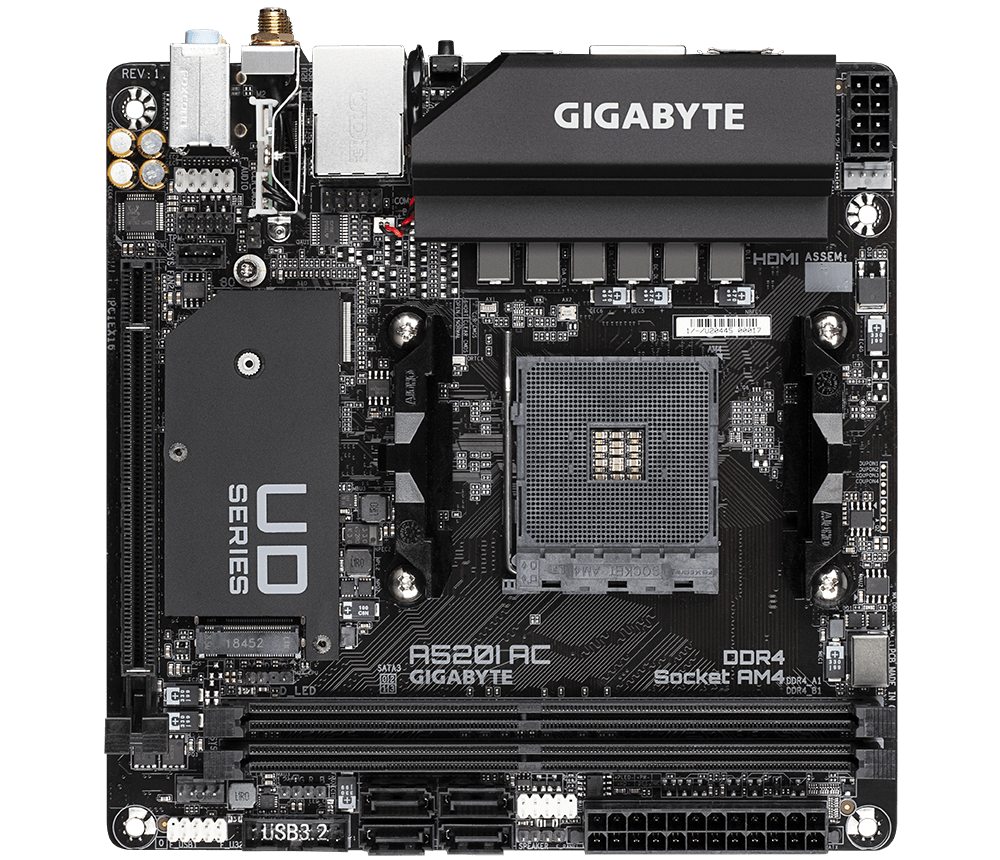

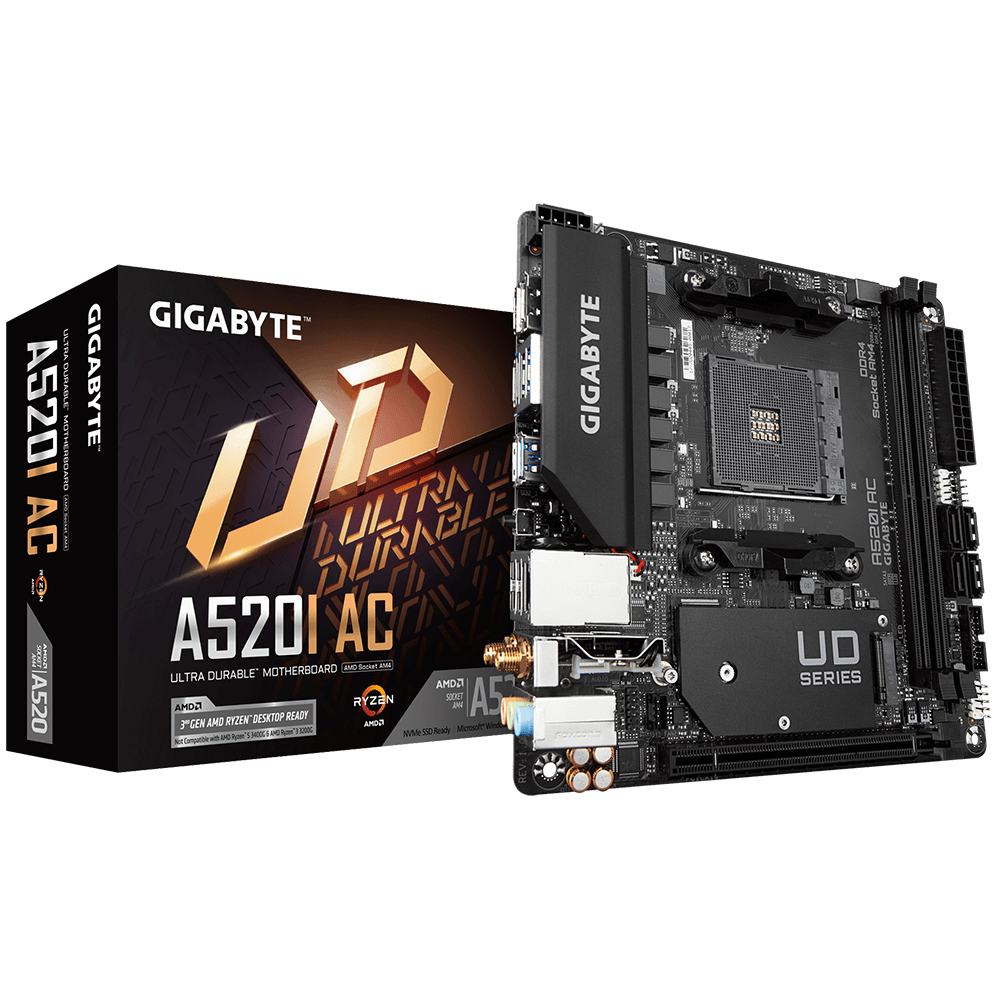

MB GB A520I AC AM4 DDR4 MINI ITX

Placa de baza Gigabyte A520I AC AM4 DDR4, 2x sloturi RAM, max. 64GB, frecventa maxima suportata 5300MHz, 1x DisplayPort, 1x HDMI, 1x PCIe x16, 1x M.2, 4x conectori SATA 6GB/s, 1x LAN 1Gbps, WIFI, Bluetooth 4.2, microATX
Garantie: 36 luni


Specificatii tehnice

Lithium weight per battery: 0.07 g
Battery weight: 3 g
Number of battery cells: 1
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032
BIOS memory size: 128 Mbit
ACPI version: 5.0
Desktop Management Interface (DMI) version: 2.7
System Management BIOS (SMBIOS) version: 2.7
BIOS type: UEFI AMI
Clear CMOS jumper: Yes
PCI Express x16 slots: 1
Number of M.2 (M) slots: 1
Audio output channels: 7.1 channels
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Component for: PC
Motherboard chipset family: AMD
Audio Chip: Realtek ALC887
Motherboard chipset: AMD A520
PC health monitoring: Fan, Temperature, Voltage
Motherboard form factor: mini ITX
Maximum resolution: 5120 x 2880 pixels
DirectX version: 12.0
Parallel processing technology support: Not supported
HDCP: Yes
On-board graphics card: No
Number of displays supported: 3
Audio connector: Yes
Power fan connector: Yes
USB 2.0 connectors: 1
Serial port headers: 1
Total number of SATA connectors: 4
Front panel connector: Yes
TPM connector: Yes
RGB LED pin header: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 0
Number of SATA III connectors: 4
Number of SATA II connectors: 0
Number of SATA connectors: 0
Number of Parallel ATA connectors: 0
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
EPS power connector (8-pin): Yes
Country of origin: China
Supported memory module capacities: 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB
ECC сompatibility: ECC & Non-ECC
Supported memory clock speed (max): 5300 MHz
Supported memory clock speeds: 2133,2400,2667,2933,3200,3333,3600,4000,4400,4600,4866,5000,5100,5200 MHz
Number of memory slots: 2
Supported memory types: DDR4-SDRAM
Memory slots type: DIMM
Unbuffered memory: Yes
Memory channels: Dual-channel
Maximum internal memory: 64 GB
Ethernet LAN: Yes
Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
Ethernet interface type: Gigabit Ethernet
Wi-FI: Yes
Bluetooth version: 4.2
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
mSATA ports quantity: 0
Bundled software: Norton® Internet Security (OEM version), Realtek® 8118 Gaming LAN Bandwidth Control Utility
Supported processor sockets: Socket AM4
Processor manufacturer: AMD
Compatible processor series: AMD Ryzen 3000 Series
Processor socket: Socket AM4
Maximum internal memory supported by processor: 64 GB
Headphone outputs: 3
HDMI ports quantity: 2
DisplayPorts quantity: 1
VGA (D-Sub) ports quantity: 0
DVI-D ports quantity: 0
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
HDMI version: 2.1
DisplayPort version: 1.4
WiFi-AP antenna jack: 2
Number of storage drives supported: 5
Number of HDDs supported: 4
RAID levels: 0, 1, 10
RAID support: Yes
Supported storage drive interfaces: M.2, SATA III
Width: 170 mm
Depth: 170 mm
Height: 35 mm
Onboard-CPU: No
PCI: 3
Serial-or-Paralel: No/No
