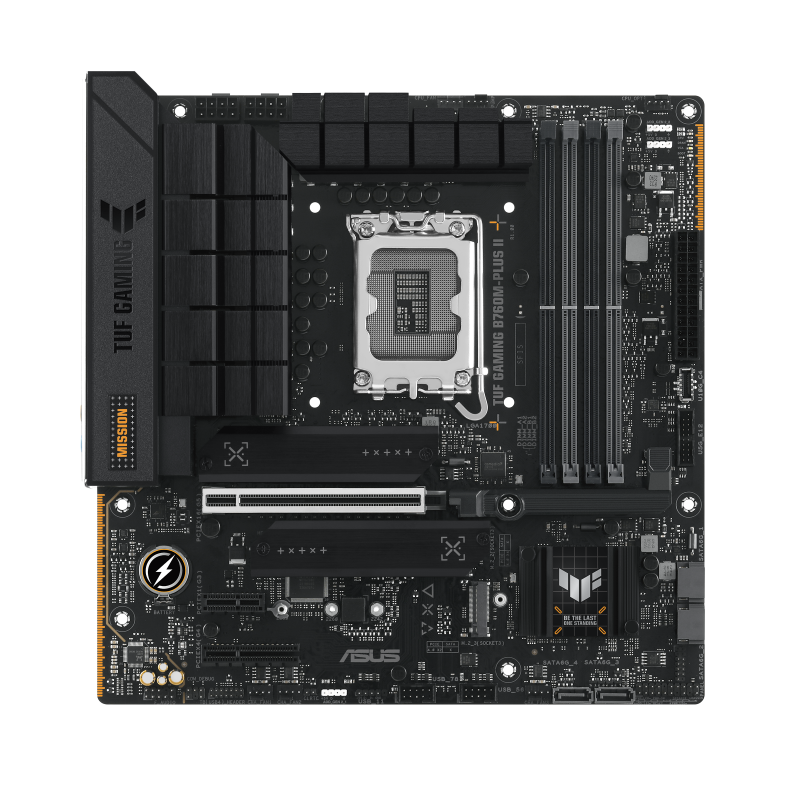

MB ASUS TUF GAMING B760M-PLUS II

Placa de baza Asus TUF GAMING B760M-PLUS II
Garantie: 24 luni


Specificatii tehnice

BIOS type: UEFI AMI
BIOS memory size: 128 Mbit
Number of M.2 (M) slots: 3
PCI Express x1 (Gen 3.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1
PCI Express x4 (Gen 4.x) slots: 1
Audio output channels: 7.1 channels
Component for: PC
Windows operating systems supported: Windows 10 x64, Windows 11
Motherboard form factor: micro ATX
Motherboard chipset family: Intel
Motherboard chipset: Intel B760
Parallel processing technology support: Not supported
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
USB 2.0 connectors: 3
12V power connector: Yes
Number of chassis fan connectors: 3
Thunderbolt headers: 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of SATA III connectors: 4
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
EPS power connector (8-pin): Yes
Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Unbuffered memory: Yes
Maximum internal memory: 192 GB
Memory channels: Dual-channel
Supported memory clock speed (max): 7800 MHz
Supported memory clock speeds: 7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5400,5200,5000,4800 MHz
ECC сompatibility: Non-ECC
Ethernet interface type: 2.5 Gigabit Ethernet
Wi-FI: No
Ethernet LAN: Yes
Weight: 982 g
Cables included: SATA
Screws included: Yes
Package depth: 265 mm
Package weight: 1.65 kg
Package width: 280 mm
Package height: 71 mm
Processor socket: LGA 1700
Supported processor sockets: LGA 1700
Processor manufacturer: Intel
S/PDIF out port: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
HDMI ports quantity: 1
USB 3.2 Gen 2x2 Type-C ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 0
USB 2.0 ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
DisplayPorts quantity: 1
VGA (D-Sub) ports quantity: 0
DVI-D ports quantity: 0
Microphone in: Yes
Headphone outputs: 1
Ethernet LAN (RJ-45) ports: 1
Supported storage drive interfaces: M.2, SATA III
Number of HDDs supported: 4
Number of storage drives supported: 7
RAID levels: 0, 1, 5, 10
RAID support: Yes
Supported storage drive types: HDD & SSD
Width: 244 mm
Height: 50 mm
Depth: 24.4 mm
