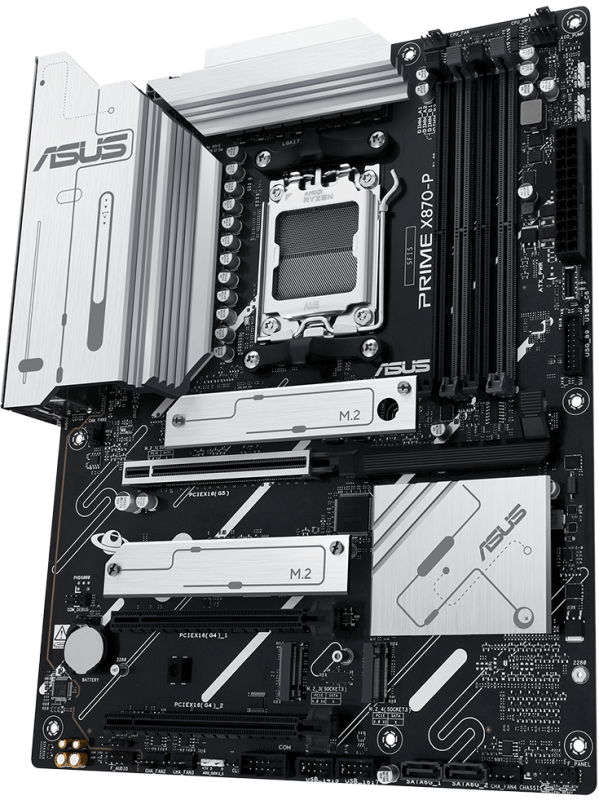

MB Asus PRIME X870-P AM5

BIOS type: UEFI AMI

BIOS memory size: 256 Mbit

Cooling type: Passive

PCI Express x16 (Gen 4.x) slots: 2

PCI Express x16 (Gen 5.x) slots: 1

Number of M.2 (M) slots: 4

Motherboard form factor: ATX

Motherboard chipset family: AMD

Audio output channels: 7.1 channels

Component for: PC

Windows operating systems supported: Windows 10, Windows 11

Motherboard chipset: AMD X870

Power source type: ATX

On-board graphics card: No

Parallel processing technology support: Not supported

USB 2.0 connectors: 2

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

Number of SATA II connectors:

Number of SATA connectors:

Front panel audio connector: Yes

ATX Power connector (24-pin): Yes

CPU fan connector: Yes

EPS power connector (8-pin): Yes

USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1

Number of chassis fan connectors: 4

TPM connector: Yes

RGB LED pin header: Yes

12V power connector: Yes

Number of SATA III connectors: 2

Number of COM connectors: 1

Supported memory clock speed (max): 8000 MHz

Maximum internal memory: 192 GB

Memory channels: Dual-channel

Supported memory types: DDR5-SDRAM

ECC сompatibility: ECC & Non-ECC

Number of memory slots: 4

Memory slots type: DIMM

Unbuffered memory: Yes

Ethernet interface type: 2.5 Gigabit Ethernet

Ethernet LAN: Yes

Wi-FI: No

mSATA ports quantity:

Back-to-BIOS button: Yes

Weight: 1.44 kg

Cables included: SATA

Package height: 68 mm

Package weight: 1.5 kg

Package depth: 273 mm

Package width: 353 mm

DVI-D ports quantity:

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1

HDMI ports quantity: 1

HDMI version: 2.1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:

USB 2.0 ports quantity: 4

DisplayPort version: 1.4a

Processor manufacturer: AMD

Processor socket: Socket AM5

Supported processor sockets: Socket AM5

Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

USB4 Gen 2x2 ports quantity: 2

Microphone in: Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity:

VGA (D-Sub) ports quantity: 0

Line-in: Yes

Supported storage drive types: HDD & SSD

RAID support: Yes

Supported storage drive interfaces: M.2, SATA III

RAID levels: 0, 1, 5, 10

Number of storage drives supported: 6

Number of HDDs supported: 2

Width: 30.5 mm

Depth: 24.4 mm

Height: 48 mm

MB-Format: ATX

PCI-Ex1: 0

RAM-Slots: 4

MB-Socket: AM5

PCI-Ex16: 5

USB3: 4-8

Onboard-CPU: Yes

PCI: 0

Garantia Produsului: 36 luni
