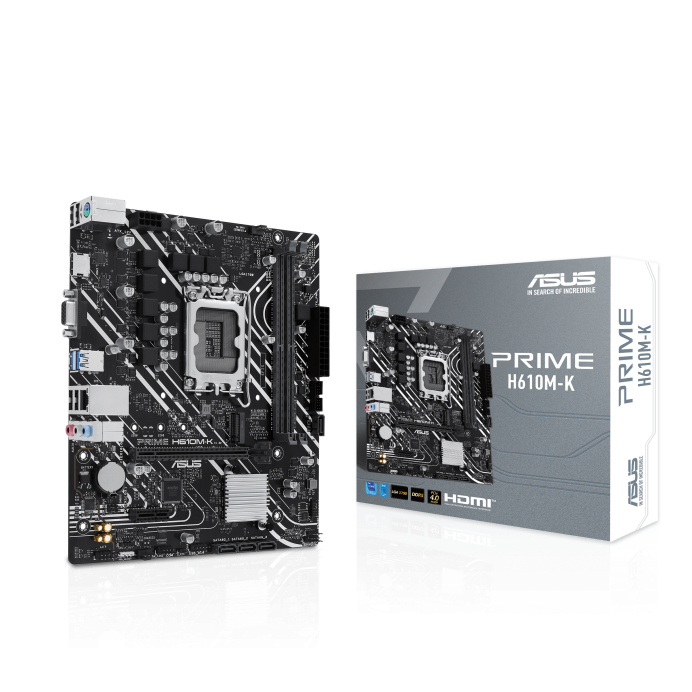

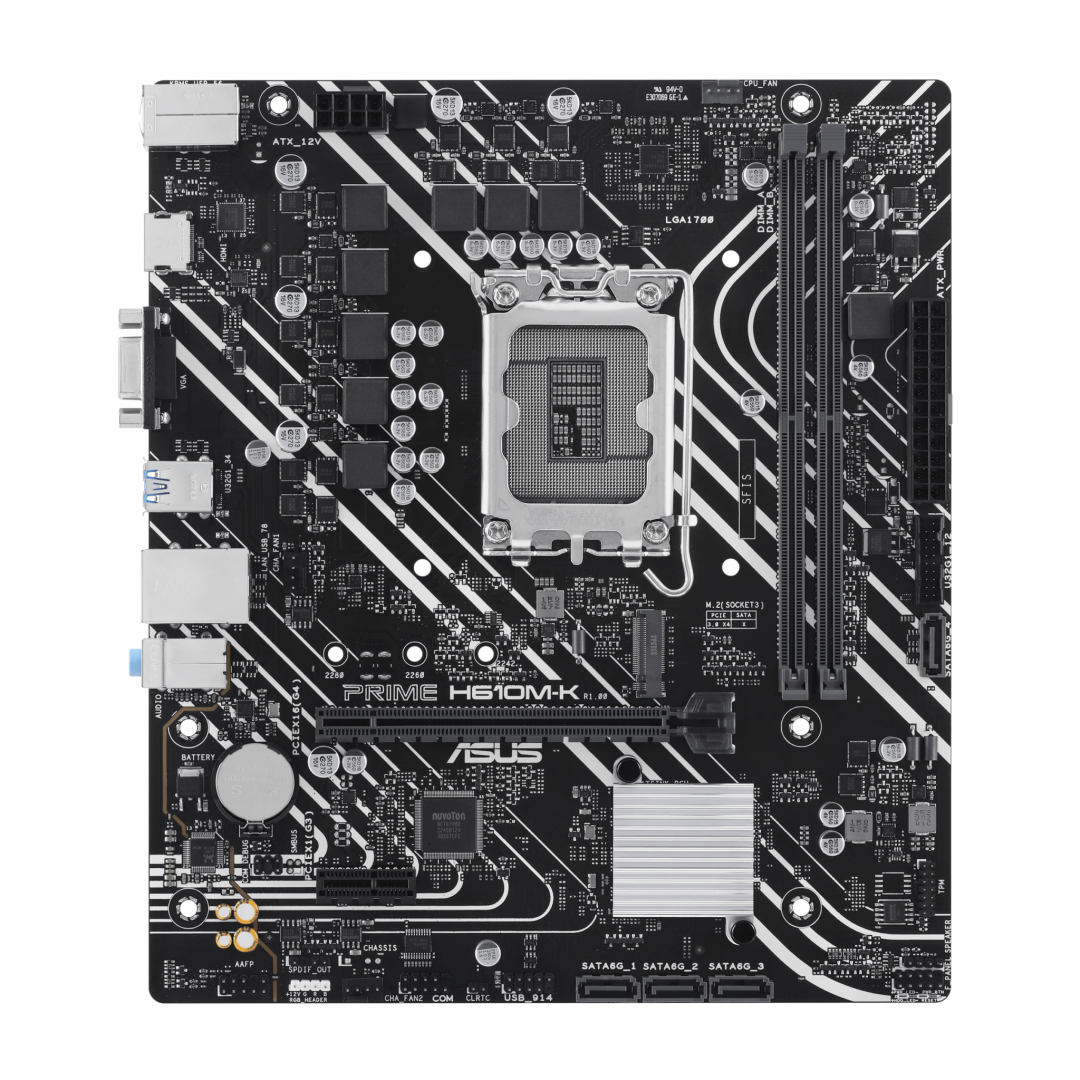

MB ASUS PRIME H610M-K D5 LGA 1700

Placa de baza ASUS PRIME 610M-K LGA1700, 2x DDR5, 1x PCIE 4.0 x16, 1x PCIE 3.0 x1, 1x VGA 1x HDMI, 1x M.2, 4x SATA 6GB/s, mATX
Garantie: 36 luni


Specificatii tehnice

BIOS type: UEFI AMI
Clear CMOS jumper: Yes
BIOS memory size: 128 Mbit
Number of M.2 (M) slots: 1
PCI Express x1 (Gen 3.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
Windows operating systems supported: Windows 10 x64, Windows 11
Component for: PC
Audio output channels: 7.1 channels
Motherboard chipset family: Intel
Motherboard chipset: Intel H610
Product colour: Multicolour
Motherboard form factor: micro ATX
12V power connector: Yes
USB 2.0 connectors: 1
S/PDIF out connector: Yes
Number of COM connectors: 1
TPM connector: Yes
RGB LED pin header: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 0
Number of SATA III connectors: 4
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
Number of chassis fan connectors: 2
EPS power connector (8-pin): Yes
Memory slots type: DIMM
Unbuffered memory: Yes
Number of memory slots: 2
Maximum internal memory: 96 GB
Memory channels: Dual-channel
Supported memory types: DDR5-SDRAM
ECC сompatibility: Non-ECC
Supported memory clock speeds: 4800,5000,5200,5400,5600 MHz
Wi-FI: No
Ethernet interface type: Gigabit Ethernet
Ethernet LAN: Yes
Weight: 470 g
Cables included: SATA
Package width: 270 mm
Package height: 515 mm
Package weight: 820 g
Package depth: 263 mm
Processor socket: LGA 1700
Processor manufacturer: Intel
USB connector type: USB Type-A
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
HDMI ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 0
USB 2.0 ports quantity: 4
Line-in: Yes
PS/2 ports quantity: 1
VGA (D-Sub) ports quantity: 1
DVI-D ports quantity: 0
Microphone in: Yes
Headphone outputs: 1
Ethernet LAN (RJ-45) ports: 1
Number of HDDs supported: 4
Number of storage drives supported: 5
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
Depth: 203 mm
Height: 365 mm
Width: 234 mm
Onboard-CPU: No
PCI: 0
Serial-or-Paralel: No/No
