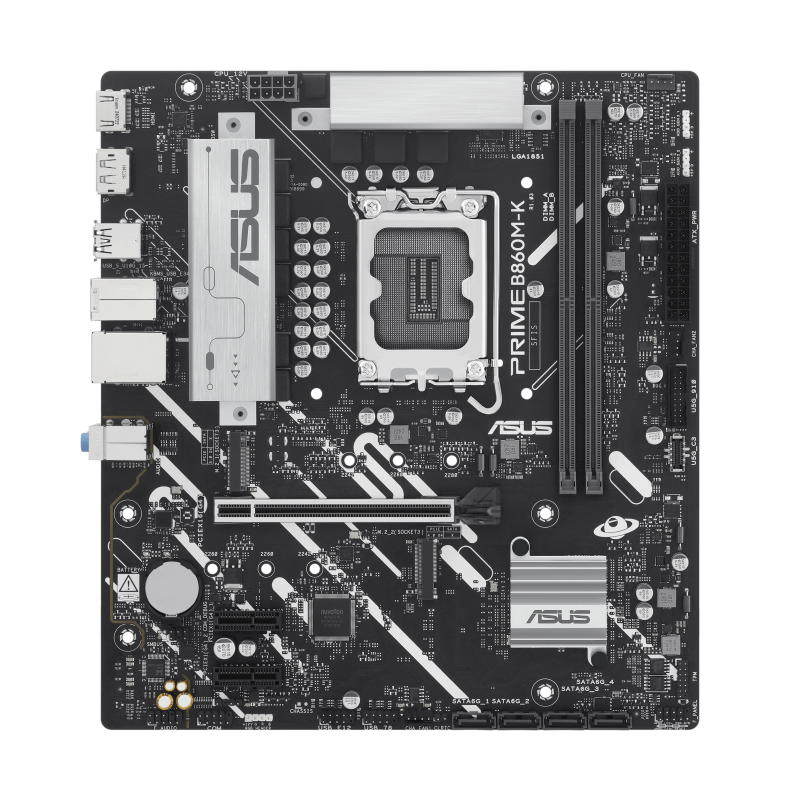

MB Asus PRIME B860M-K

Placa de Baza ASUS PRIME B860M-K LGA1851, 2x DDR5, 1x DP 1x HDMI, 1x PCIE 4.0 x16 2x PCIE 4.0 x1, 2x M.2, 4x SATA 6GB/s, mATX
Garantie: 36 luni


Specificatii tehnice

BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
1st M.2 highest PCI Express generation: 5.0
2nd M.2 highest PCI Express generation: 4.0
1st M.2 largest key size: 2280
2nd M.2 largest key size: 2280
PCI Express x1 (Gen 4.x) slots: 2
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 2
Audio output channels: 7.1 channels
Component for: PC
Windows operating systems supported: Windows 10 x64, Windows 11
Motherboard chipset family: Intel
Motherboard chipset: Intel B860
Motherboard form factor: micro ATX
Parallel processing technology support: Not supported
USB 2.0 connectors: 2
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 0
Number of SATA III connectors: 4
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
Number of chassis fan connectors: 2
Front panel connector: Yes
TPM connector: Yes
RGB LED pin header: Yes
12V power connector: Yes
S/PDIF out connector: Yes
Number of COM connectors: 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
ECC сompatibility: Non-ECC
Supported memory types: DDR5-SDRAM
Memory slots type: DIMM
Unbuffered memory: Yes
Number of memory slots: 2
Memory channels: Dual-channel
Maximum internal memory: 128 GB
Ethernet LAN: Yes
Wi-FI: No
Ethernet interface type: 2.5 Gigabit Ethernet
Cables included: SATA
Package width: 270 mm
Package weight: 1.07 kg
Package depth: 263 mm
Package height: 515 mm
Compatible processor series: Intel Core Ultra (Series 2)
Processor socket: LGA 1851 (Socket V1)
Supported processor sockets: LGA 1851
Processor manufacturer: Intel
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
HDMI ports quantity: 1
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
DVI-D ports quantity: 0
DisplayPorts quantity: 1
VGA (D-Sub) ports quantity: 0
PS/2 ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
Number of storage drives supported: 6
Supported storage drive interfaces: M.2, SATA III
Number of HDDs supported: 4
RAID levels: 0, 1, 5, 10
Supported storage drive types: HDD & SSD
RAID support: Yes
Depth: 222 mm
Width: 244 mm
MB-Format: micro-ATX
PCI-Ex1: 2
RAM-Slots: 2
MB-Socket: LGA1851
PCI: 0
Serial-or-Paralel: No/No
USB3: 4-8
PCI-Ex16: 1
Onboard-CPU: No
