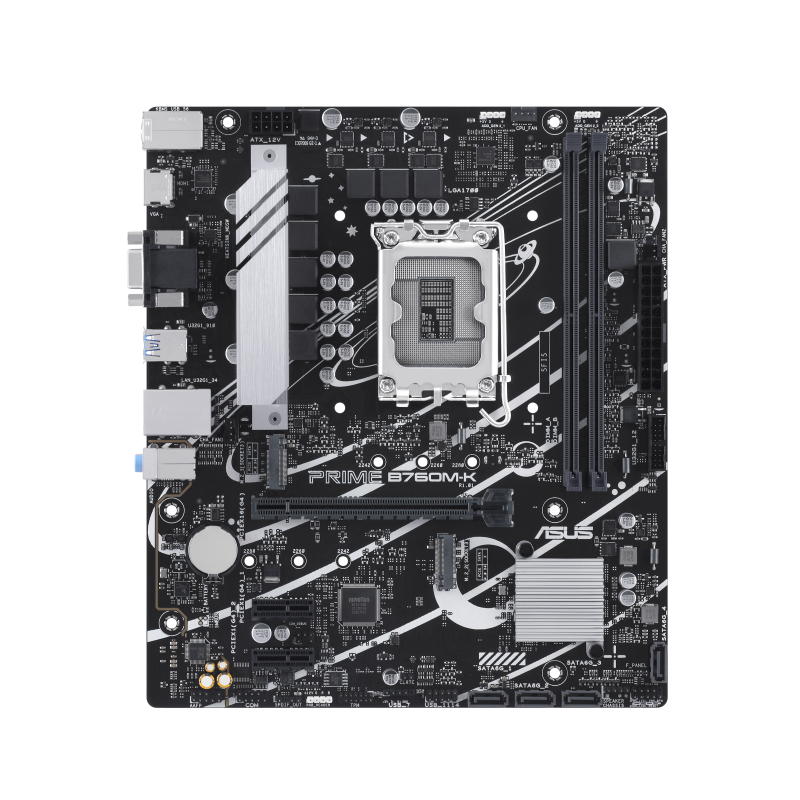

MB ASUS PRIME B760M-K DDR5 LGA1700

Placa de baza ASUS PRIME B760M-K LGA 1700, 2x DDR5, 1x VGA 1x HDMI, 1x PCIE 4.0 x16 1x PCIE 4.0 x1, 2x M.2, 4x SATA 6GB/s, mATX
Garantie: 36 luni


Specificatii tehnice

BIOS type: UEFI AMI
BIOS memory size: 128 Mbit
PCI Express x1 (Gen 4.x) slots: 2
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 2
Windows operating systems supported: Windows 10 x64, Windows 11
Component for: PC
Audio output channels: 7.1 channels
Motherboard form factor: micro ATX
Motherboard chipset: Intel B760
Motherboard chipset family: Intel
Parallel processing technology support: Not supported
TPM connector: Yes
RGB LED pin header: Yes
12V power connector: Yes
S/PDIF out connector: Yes
Number of COM connectors: 1
Number of chassis fan connectors: 1
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 0
Number of SATA III connectors: 4
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
EPS power connector (8-pin): Yes
Memory slots type: DIMM
Unbuffered memory: Yes
Number of memory slots: 2
Maximum internal memory: 96 GB
Memory channels: Dual-channel
Supported memory clock speed (max): 8000 MHz
Supported memory clock speeds: 8000,7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5400,5200,5000,4800 MHz
ECC сompatibility: Non-ECC
Supported memory types: DDR5-SDRAM
Ethernet interface type: 2.5 Gigabit Ethernet
Wi-FI: No
Ethernet LAN: Yes
Cables included: SATA
Package width: 270 mm
Package height: 51.5 mm
Package depth: 263 mm
Package weight: 1.01 kg
Processor socket: LGA 1700
Maximum number of SMP processors: 1
Supported processor sockets: LGA 1700
Processor manufacturer: Intel
HDMI ports quantity: 1
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
S/PDIF out port: Yes
VGA (D-Sub) ports quantity: 1
PS/2 ports quantity: 1
DVI-D ports quantity: 0
Number of HDDs supported: 4
RAID levels: 0, 1, 5, 10
Number of storage drives supported: 6
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
RAID support: Yes
Depth: 21.1 mm
Width: 244 mm
MB-Socket: 1700
MB-Format: micro-ATX
PCI-Ex1: 2
RAM-Slots: 2
PCI: 0
Serial-or-Paralel: No/No
USB3: 4-8
PCI-Ex16: 1
Onboard-CPU: No
