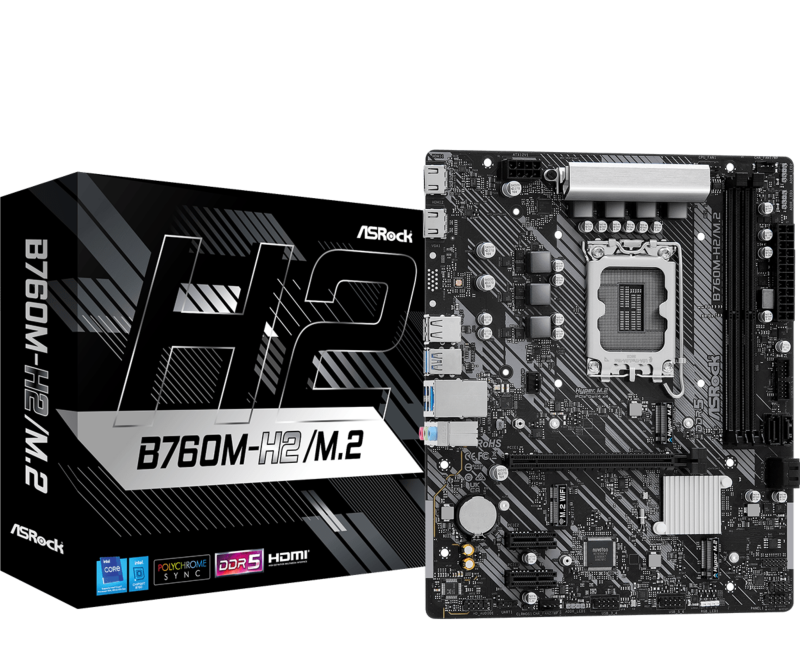

MB Asrock B760M-H2/M.2 DDR5

Placă de bază ASRock B760M-H2/M.2, micro-ATX, socket LGA1700, chipset Intel B760, suport DDR4 128 GB, PCIe 4.0 x16, slot M.2 PCIe Gen4, LAN Gigabit.
Garantie: 36 luni


Specificatii tehnice

BIOS type: UEFI AMI
BIOS memory size: 128 Mbit
PCI Express x1 (Gen 3.x) slots: 2
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 2
Audio Chip: Realtek ALC897
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Audio output channels: 7.1 channels
Component for: PC
Motherboard chipset family: Intel
Motherboard form factor: micro ATX
Motherboard chipset: Intel B760
Certification: - FCC, CEn- ErP/EuP ready (ErP/EuP ready power supply is required)
Parallel processing technology support: Not supported
HDCP: Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 0
Number of SATA III connectors: 4
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
EPS power connector (8-pin): Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Chassis intrusion connector: Yes
USB 2.0 connectors: 4
Front panel connector: Yes
TPM connector: Yes
Total number of SATA connectors: 4
ECC сompatibility: Non-ECC
Supported memory clock speed (max): 7200 MHz
Supported memory types: DDR5-SDRAM
Supported memory clock speeds: 5600,6800,7200 MHz
Memory slots type: DIMM
Unbuffered memory: Yes
Number of memory slots: 2
Memory channels: Dual-channel
Maximum internal memory: 128 GB
Ethernet LAN: Yes
Wi-FI: No
Ethernet interface type: 2.5 Gigabit Ethernet
Cables included: SATA
Maximum internal memory supported by processor: 128 GB
Compatible processor series: Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
Processor socket: LGA 1700
Maximum number of SMP processors: 1
Supported processor sockets: LGA 1700
Processor manufacturer: Intel
HDMI version: 2.1
Line-in: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
USB 2.0 ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
HDMI ports quantity: 2
VGA (D-Sub) ports quantity: 0
PS/2 ports quantity: 1
DVI-D ports quantity: 0
Ethernet LAN (RJ-45) ports: 1
Microphone in: Yes
Number of storage drives supported: 4
RAID levels: 0, 1, 5, 10
Number of HDDs supported: 6
Supported storage drive interfaces: M.2, SATA III
RAID support: Yes
Depth: 201 mm
Width: 244 mm
MB-Socket: 1700
MB-Format: micro-ATX
PCI-Ex1: 2
RAM-Slots: 2
PCI: 0
Serial-or-Paralel: No/No
USB3: 4-8
PCI-Ex16: 1
Onboard-CPU: No
