MB ASROCK A520M-HVS AM4

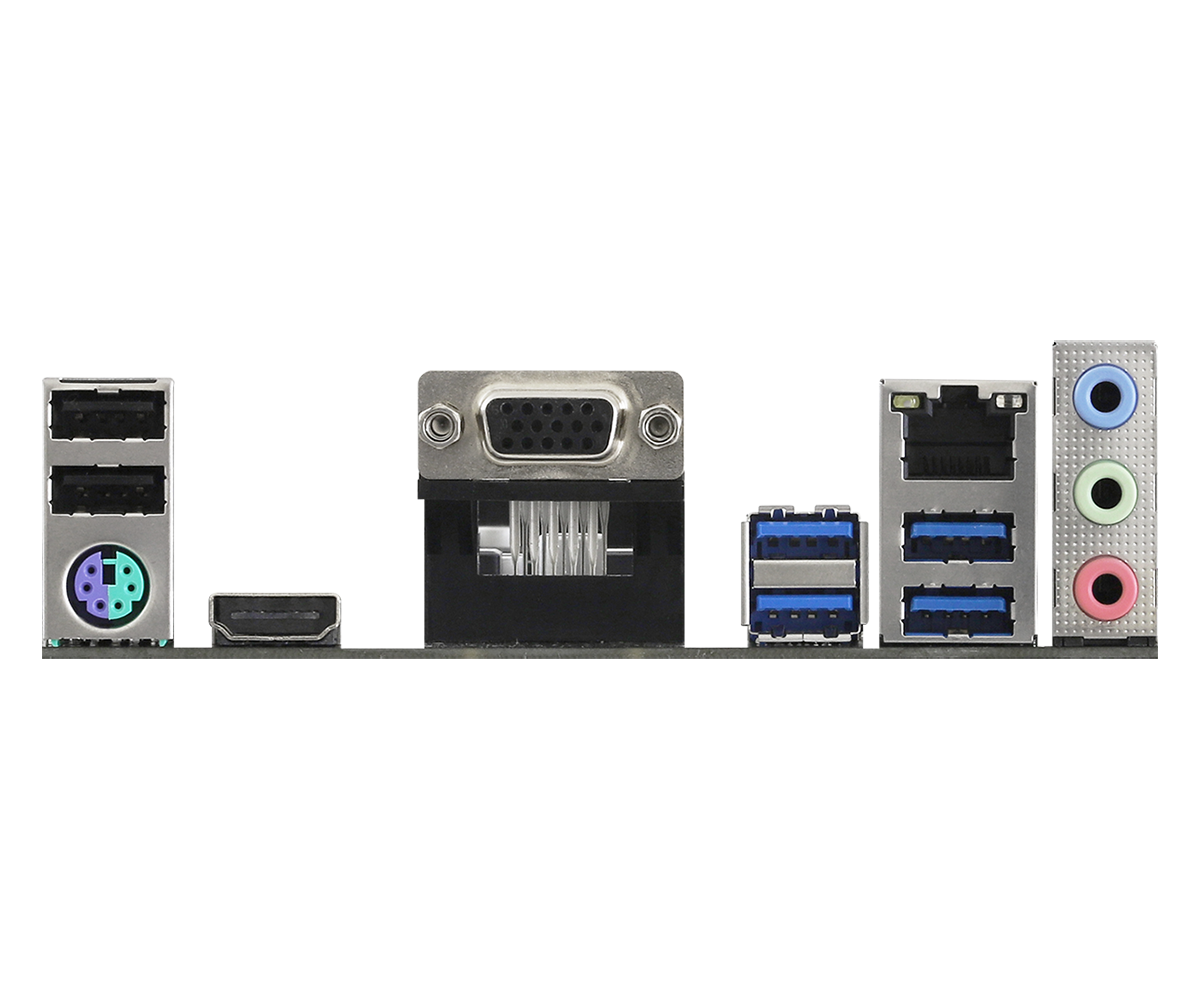

Placa de baza AsRock A520M-HVS AM4 Supports AMD AM4 Socket Ryzen™ 3000, 4000 G-Series and 5000 Series Desktop Processors 6 Phase Power Design Supports DDR4 4733+ (OC) 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1 Graphics Output Options: D-Sub, HDMI 7.1 CH HD Audio (Realtek ALC887 Audio Codec) 4 x SATA3, 1 x Ultra M.2(Gen3 x4 & SATA3) 6 x USB 3.2 Gen1(4 x Rear, 2 x Front) 6 x USB 2.0(2 x Rear, 4 x Front) Realtek Gigabit LAN https://www.asrock.com/MB/AMD/A520M-HVS/index.asp
Garantie: 24 luni


Specificatii tehnice

BIOS type: UEFI AMI
PCI Express x1 (Gen 3.x) slots: 1
PCI Express x16 (Gen 3.x) slots: 1
Audio output channels: 7.1 channels
Component for: PC
Motherboard form factor: micro ATX
Motherboard chipset family: AMD
Motherboard chipset: AMD A520
Graphics card: Radeon Vega
Graphics card family: AMD
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 0
Number of SATA II connectors: 0
Number of Parallel ATA connectors: 0
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
Number of chassis fan connectors: 2
Number of SATA III connectors: 0
Number of COM connectors: 1
Harmonized System (HS) code: 84733020
Supported memory clock speeds: 2133,2400,2666,2933,3200,3466,3600,3733,3800,3866,4000,4133,4200,4266,4333,4400,4466,4500,4533 MHz
ECC сompatibility: Non-ECC
Memory slots type: DIMM
Unbuffered memory: Yes
Number of memory slots: 2
Supported memory types: DDR4-SDRAM
Memory channels: Dual-channel
Maximum internal memory: 64 GB
Ethernet LAN: Yes
Wake-on-LAN ready: Yes
Ethernet interface type: Gigabit Ethernet
Wi-FI: No
LAN controller: Realtek RTL8111H
Drivers included: Yes
Cables included: SATA
Compatible processor series: AMD Ryzen 3000 Series
Processor socket: Socket AM4
Processor manufacturer: AMD
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
HDMI ports quantity: 1
VGA (D-Sub) ports quantity: 1
DVI-D ports quantity: 0
PS/2 ports quantity: 1
eSATA ports quantity: 0
Firewire (IEEE 1394) ports: 0
Microphone in: Yes
Number of HDDs supported: 5
Supported storage drive interfaces: M.2, SATA III
Depth: 201 mm
Width: 230 mm
MB-Format: micro-ATX
MB-Socket: AM4
RAM-Slots: 2
USB3: 4-8
CPU încorporat: No
PCI-Ex1: 1
PCI-Ex16: 1
PCI: 0
Serial-or-Paralel: No/No
