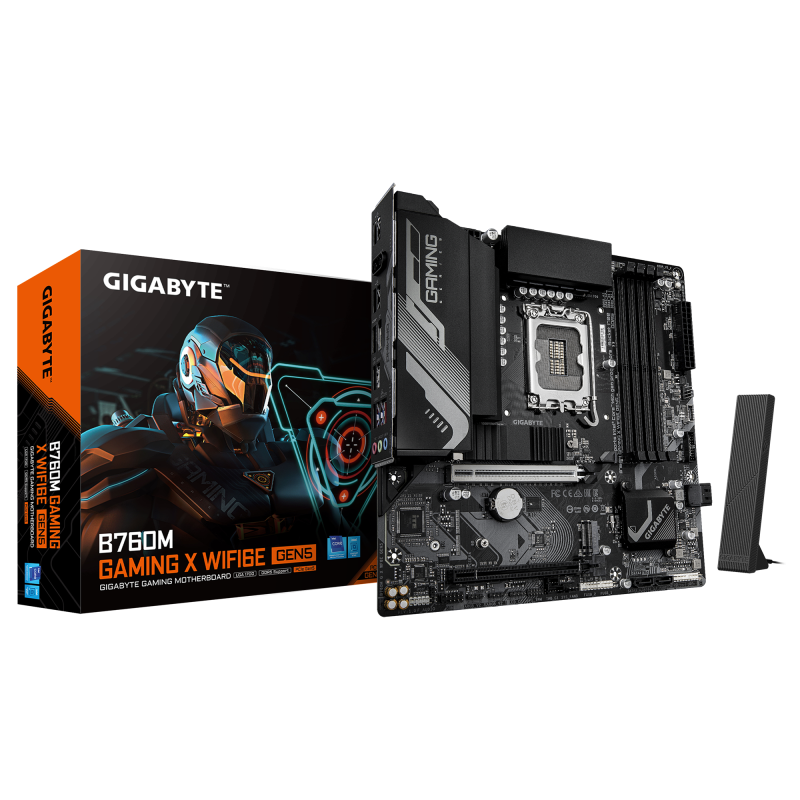

GIGABYTE B760M GAMING X WIFI6E GEN5

GIGABYTE B760M GAMING X WIFI6E GEN5. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2304 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125, Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Garantie: 24 luni


Specificatii tehnice

Lithium weight per battery: 0.07 g
Battery weight: 3 g
Number of battery cells: 1
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032
ACPI version: 5.0
Desktop Management Interface (DMI) version: 2.7
System Management BIOS (SMBIOS) version: 2.7
BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
Clear CMOS jumper: Yes
2nd M.2 largest key size: 22110
2nd M.2 highest PCI Express generation: 4.0
PCI Express x16 (Gen 3.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1
Number of M.2 (M) slots: 2
1st M.2 largest key size: 2280
1st M.2 highest PCI Express generation: 4.0
Motherboard chipset: Intel B760
Product colour: Dark brown
Power source type: ATX
Cooling type: Passive
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Audio Chip: Realtek ALC897
Audio output channels: 7.1 channels
Component for: PC
Motherboard chipset family: Intel
PC health monitoring: Fan, Temperature, Voltage, Water cooling
Motherboard form factor: micro ATX
Maximum resolution: 4096 x 2304 pixels
DirectX version: 12.0
Parallel processing technology support: Not supported
HDCP: Yes
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of SATA III connectors: 4
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
EPS power connector (8-pin): Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
Front panel connector: Yes
TPM connector: Yes
RGB LED pin header: Yes
Number of RGB LED pin headers: 4
Thunderbolt headers: 2
12V power connector: Yes
S/PDIF out connector: Yes
Serial port headers: 1
Number of chassis fan connectors: 3
Number of EPS power connectors (8-pin): 1
Number of CPU fan connectors: 1
Country of origin: China
Products per shipping (inner) case: 1 pc(s)
Supported memory clock speed (max): 5600 MHz
Supported memory clock speeds: 5600,5200,4800,4400 MHz
Supported memory types: DDR5-SDRAM
Maximum internal memory: 256 GB
ECC сompatibility: ECC & Non-ECC
Maximum internal memory per slot: 64 GB
Number of memory slots: 4
Memory slots type: DIMM
Unbuffered memory: Yes
Memory channels: Dual-channel
Wi-FI: Yes
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Ethernet LAN: Yes
WLAN controller model: Intel Wi-Fi 6E AX210
Ethernet interface type: 2.5 Gigabit Ethernet
LAN controller: Realtek RTL8125
Bluetooth: Yes
Bluetooth version: 5.3
Weight: 1.42 kg
Bundled software: Norton® Internet Security (OEM version)rnLAN bandwidth management software
Batteries included: Yes
Antenna included: Yes
Screws included: Yes
Package weight: 1.6 kg
Package height: 68 mm
Package width: 270 mm
Package depth: 268 mm
Processor manufacturer: Intel
Processor socket: LGA 1700
Supported processor sockets: LGA 1700
WiFi-AP antenna jack: 2
Line-in: Yes
HDMI ports quantity: 1
HDMI version: 2.1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 0
DisplayPort version: 1.2
DisplayPorts quantity: 1
VGA (D-Sub) ports quantity: 0
DVI-D ports quantity: 0
USB 2.0 ports quantity: 5
Ethernet LAN (RJ-45) ports: 1
Microphone in: Yes
Headphone outputs: 1
Supported storage drive types: HDD & SSD
RAID support: Yes
Number of HDDs supported: 4
RAID levels: 0, 1, 5, 10
Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III
Number of storage drives supported: 6
Warranty period: 3 year(s)
Height: 35 mm
Width: 244 mm
Depth: 244 mm
