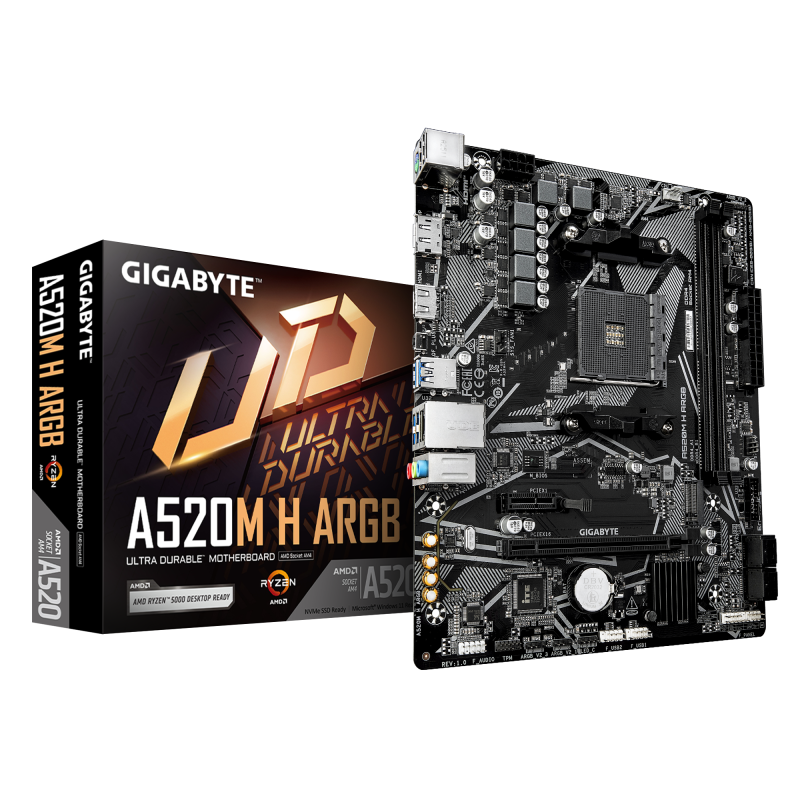

GIGABYTE A520M H ARGB motherboard

GIGABYTE A520M H ARGB. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series, AMD Ryzen PRO 3000 Series,.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 3.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 5120 x 2880 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H
Garantie: 24 luni


Specificatii tehnice

Lithium weight per battery: 0.07 g
Battery capacity: 220 mAh
Battery weight: 3 g
Number of battery cells: 1
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032
BIOS memory size: 128 Mbit
ACPI version: 5.0
Desktop Management Interface (DMI) version: 2.7
System Management BIOS (SMBIOS) version: 2.7
BIOS type: UEFI AMI
Clear CMOS jumper: Yes
1st M.2 largest key size: 2280
1st M.2 highest PCI Express generation: 3.0
PCI Express x16 (Gen 3.x) slots: 1
PCI Express x1 (Gen 3.x) slots: 1
Number of M.2 (M) slots: 1
Cooling type: Passive
Audio Chip: Realtek ALC897
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Audio output channels: 7.1 channels
Component for: PC
Motherboard chipset: AMD A520
Motherboard form factor: micro ATX
Motherboard chipset family: AMD
Product colour: Dark brown
PC health monitoring: Fan, Temperature, Voltage
Power source type: ATX
DirectX version: 12.0
Maximum resolution: 5120 x 2880 pixels
HDCP version: 2.3
Parallel processing technology support: Not supported
HDCP: Yes
12V power connector: Yes
Front panel connector: Yes
TPM connector: Yes
RGB LED pin header: Yes
Number of RGB LED pin headers: 4
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 0
Number of SATA III connectors: 4
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
Number of chassis fan connectors: 2
EPS power connector (8-pin): Yes
Number of CPU fan connectors: 1
Number of EPS power connectors (8-pin): 1
Products per shipping (inner) case: 1 pc(s)
Country of origin: China
ECC сompatibility: ECC & Non-ECC
Maximum internal memory per slot: 32 GB
Supported memory clock speeds: 2133,2400,2667,2933,3200,3400,3466,3600,3733,3866,4000,4133,4266,4400,4600,4800,5100 MHz
Supported memory clock speed (max): 5100 MHz
Number of memory slots: 2
Supported memory types: DDR4-SDRAM
Memory slots type: DIMM
Unbuffered memory: Yes
Memory channels: Dual-channel
Maximum internal memory: 64 GB
Ethernet LAN: Yes
Wi-FI: No
LAN controller: Realtek RTL8111H
Ethernet interface type: Gigabit Ethernet
Weight: 700 g
Batteries included: Yes
Bundled software: Norton® Internet Security (OEM version)
Screws included: Yes
Package width: 265 mm
Package depth: 235 mm
Package height: 52 mm
Package weight: 772 g
Supported processor sockets: Socket AM4
Processor socket: Socket AM4
Processor manufacturer: AMD
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
Line-in: Yes
DisplayPort version: 1.4
HDMI ports quantity: 1
HDMI version: 2.1
DVI-D ports quantity: 0
DisplayPorts quantity: 1
VGA (D-Sub) ports quantity: 0
PS/2 ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
Microphone in: Yes
Headphone outputs: 1
Number of HDDs supported: 4
Supported storage drive interfaces: M.2, PCI Express 3.0, SATA III
Number of storage drives supported: 5
RAID levels: 0, 1, 10
Supported storage drive types: HDD & SSD
RAID support: Yes
Warranty period: 3 year(s)
Height: 35 mm
Width: 233 mm
Depth: 198 mm
