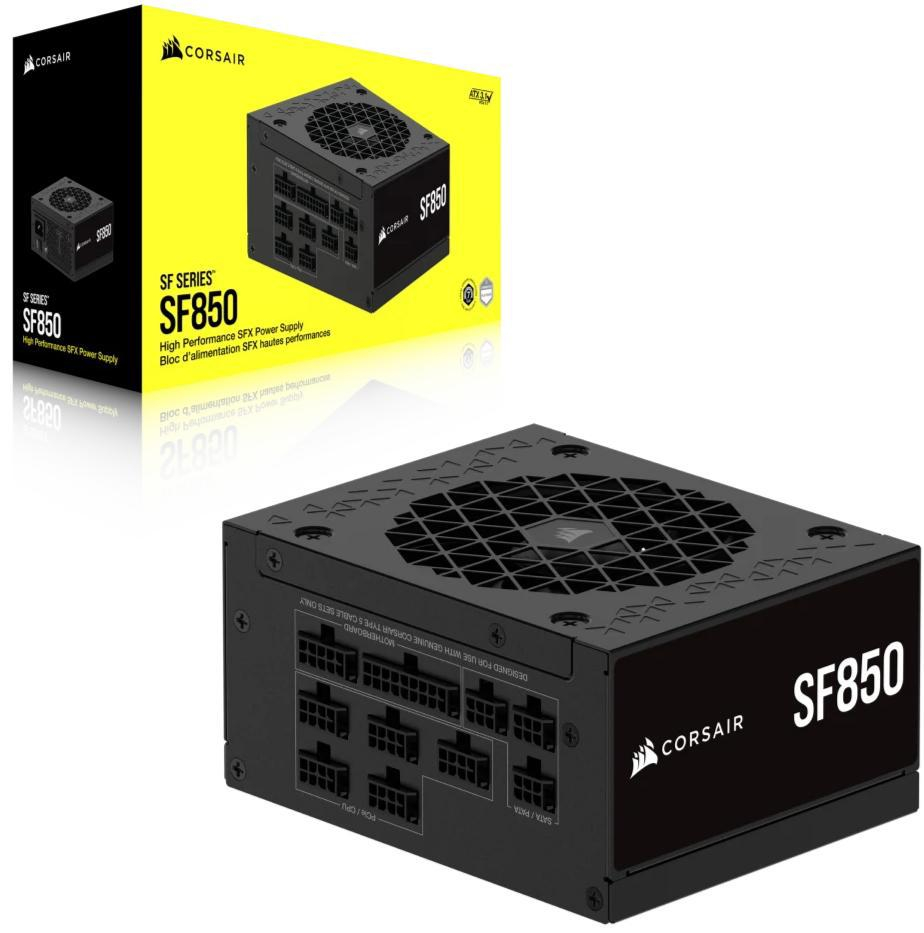

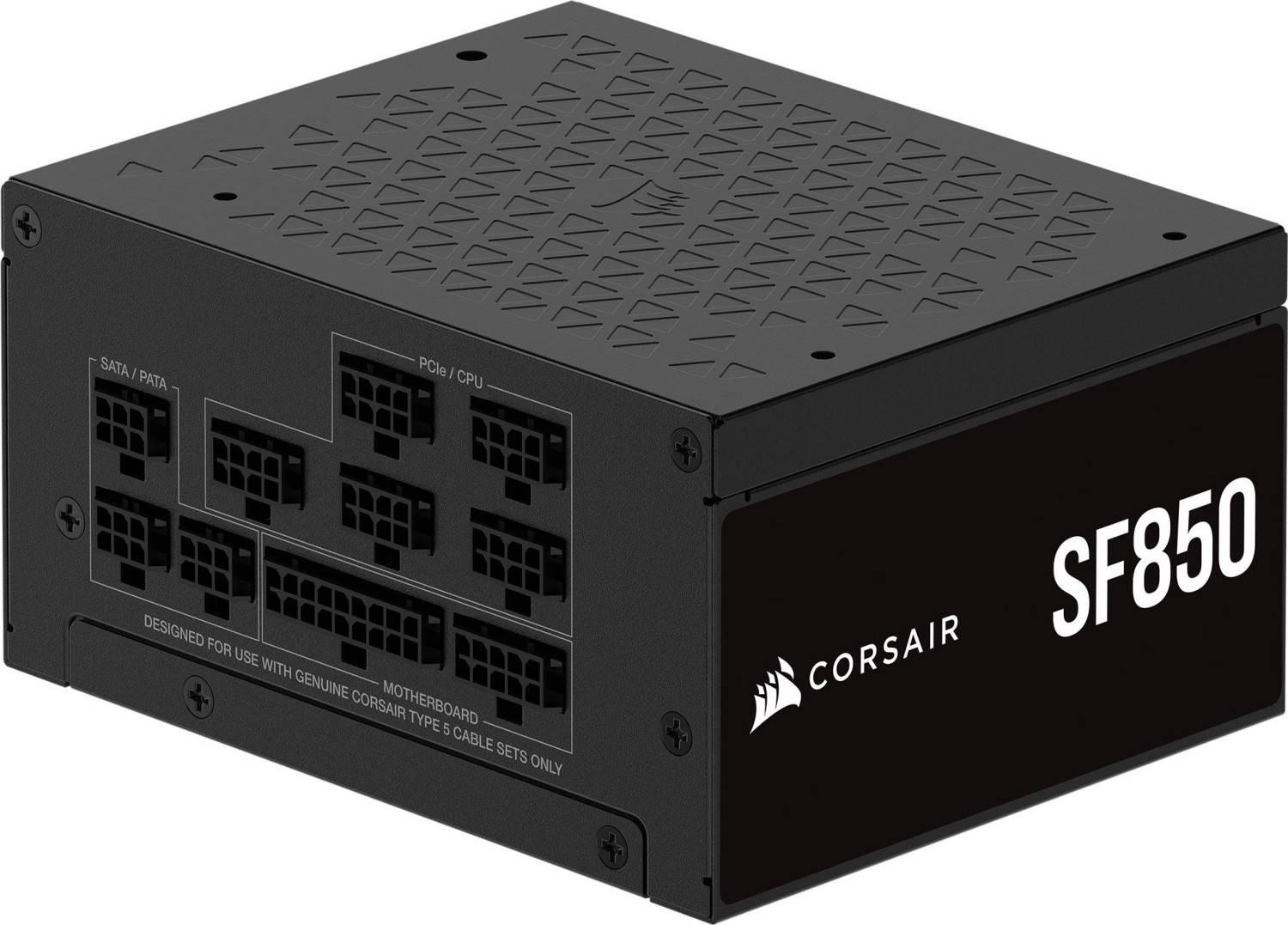

CR PSU SF850 FULLY MODULAR 80+ PLATINUM

Cooling type: Active

Number of fans: 1 fan(s)

Fan location: Top

Fan diameter: 9.2 cm

Product colour: Black

On/off switch: Yes

Cables included: AC, CPU, PATA, PCIe, SATA

Package type: Box

Silent mode: Yes

Power protection features: Over power, Over voltage, Overheating, Short circuit, Under voltage

ATX version: 3.1

Power supply unit (PSU) form factor: SFX

Bearing technology: FDB

80 PLUS certification: 80 PLUS Platinum

Purpose: PC

Mean time between failures (MTBF): 100000 h

EPS power connector (4+4 pin): Yes

EPS power connector (8-pin): Yes

Peripheral (Molex) power connectors (4-pin): 1

Motherboard power connector: 24-pin ATX

Peripheral (Molex) power cable length: 750 mm

Cabling type: Fully-Modular

PCI Express power connectors (6+2 pin): 3

Number of PATA power connectors: 1

Number of SATA power connectors: 3

Motherboard power cable length: 30 cm

PCI Express power cable length: 40 cm

SATA power cable length: 445 mm

AC input voltage: 100 - 240 V

AC input frequency: 47-63 Hz

Combined power (-12V): 850 W

Max output current (-12V): 70.8 A

Input current: 10 - 5 A

Total power: 850 W

Combined power (+12V): 849.6 W

Max output current (+12V): 70.8 A

Maximum input current (@110V): 10 A

Maximum input current (@220V): 5 A

Max output current (+3.3V): 20 A

Max output current (+5V): 20 A

Combined power (+3.3V): 130 W

Combined power (+5V): 130 W

Combined power (+5Vsb): 15 W

Max output current (+5Vsb): 3 A

Efficiency: 80Plus-Platinum

Weight: 2.3 kg

Modular: Yes

Garantia Produsului: 84 luni
