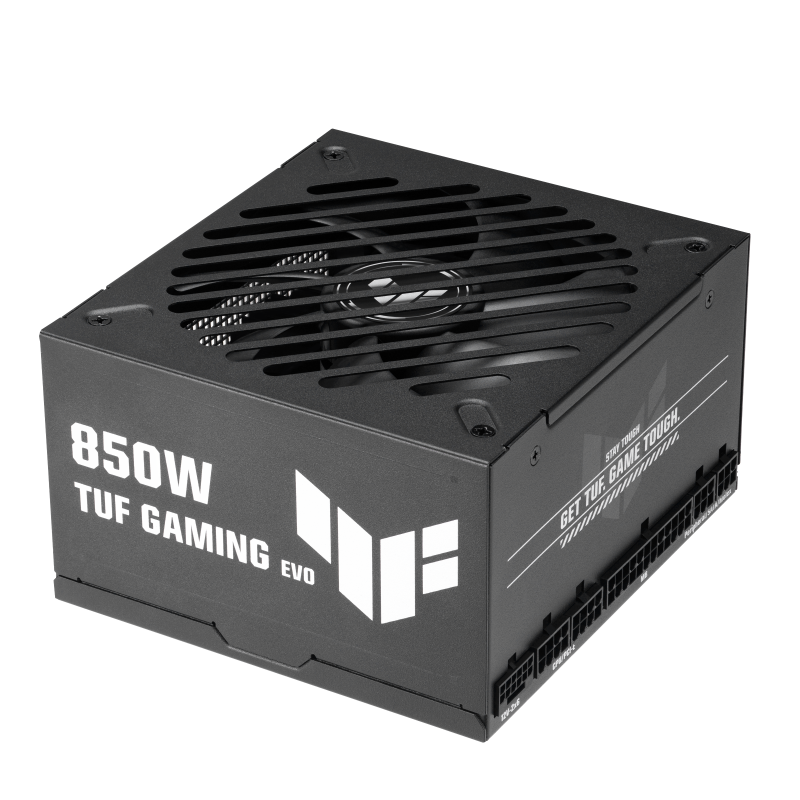

ASUS TUF-GAMING-850G-EVO power supply

Cooling type: Active

Number of fans: 1 fan(s)

Fan location: Top

Product colour: Black

On/off switch: Yes

Cables included: CPU, PCIe, Peripheral (Molex), SATA

Package type: Box

Package height: 127 mm

Package depth: 182 mm

Package width: 282 mm

Package weight: 21 kg

Power protection features: Overheating, Over current, Over power, Under voltage, Over voltage, Short circuit

ATX version: 3.1

Mean time between failures (MTBF): 120000 h

Bearing technology: DBB

Power supply unit (PSU) form factor: ATX

Purpose: PC

80 PLUS certification: 80 PLUS Gold

PCI Express power connectors (6+2 pin): 3

PCI Express power connectors (16-pin): 1

Cabling type: Fully-Modular

Motherboard power connector: 20+4 pin ATX

CPU power connector (4+4 pin): Yes

SATA power cable length: 400,120 mm

PCI Express power cable length: 50 cm

Peripheral (Molex) power connectors (4-pin): 2

Number of SATA power connectors: 4

Motherboard power cable length: 50 cm

Peripheral (Molex) power cable length: 400,120 mm

AC input voltage: 100 - 240 V

Max output current (+5V): 20 A

Total power: 850 W

Max output current (-12V): 0.3 A

Combined power (-12V): 3.6 W

Power Factor Correction (PFC) type: Active

Combined power (+3.3V): 110 W

Combined power (+5Vsb): 15 W

Max output current (+5Vsb): 3 A

Combined power (+5V): 110 W

Max output current (+3.3V): 20 A

Height: 86 mm

Width: 140 mm

Depth: 150 mm

Weight: 1.35 kg

Garantia Produsului: 24 luni
