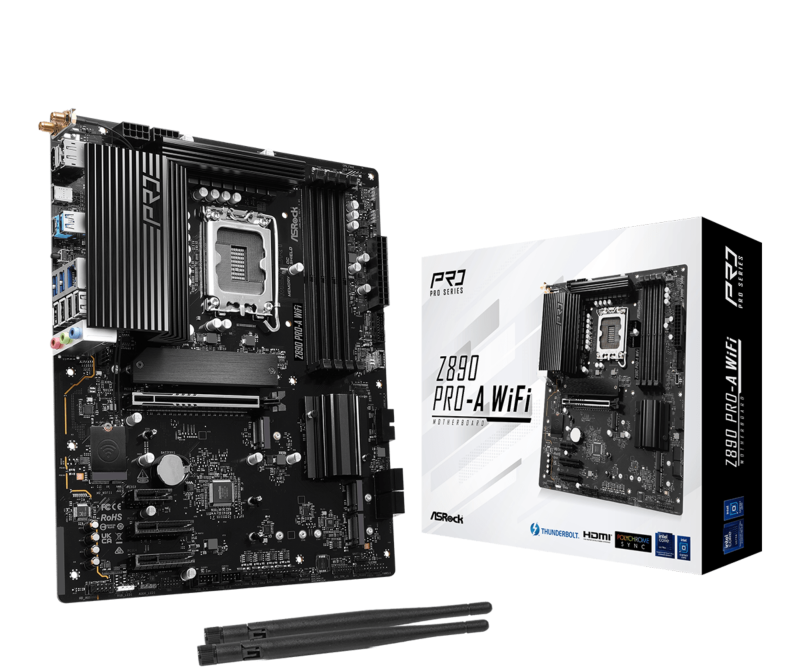

Asrock Z890 Pro-A WiFi

Asrock Z890 Pro-A WiFi. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Dragon RTL8125BG, Top Wi-Fi standard: Wi-Fi 6E (802.11ax). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
Garantie: 24 luni


Specificatii tehnice

BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
PCI Express x16 (Gen 5.x) slots: 1
PCI Express x1 (Gen 4.x) slots: 1
PCI Express x4 (Gen 4.x) slots: 2
Motherboard chipset: Intel Z890
Audio Chip: Realtek ALC897
Motherboard form factor: ATX
Motherboard chipset family: Intel
Windows operating systems supported: Windows 11 x64
Component for: PC
Audio output channels: 7.1 channels
USB 2.0 connectors: 2
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 0
Number of SATA III connectors: 4
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
USB 3.2 Gen 2x2 connectors: 1
12V power connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Number of CPU fan connectors: 2
TPM connector: Yes
RGB LED pin header: Yes
Number of chassis fan connectors: 5
Audio connector: Yes
Supported memory clock speed (max): 9066 MHz
Supported memory types: DDR5-SDRAM
Maximum internal memory: 256 GB
ECC сompatibility: Non-ECC
Number of memory slots: 4
Memory slots type: DIMM
Unbuffered memory: Yes
Memory channels: Dual-channel
Wi-FI: Yes
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Ethernet LAN: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
LAN controller: Dragon RTL8125BG
Bluetooth: Yes
Bluetooth version: 5.3
Cables included: SATA
Screws included: Yes
Processor socket: LGA 1851 (Socket V1)
Supported processor sockets: LGA 1851
Processor manufacturer: Intel
Compatible processor series: Intel Core Ultra (Series 2)
Ethernet LAN (RJ-45) ports: 1
Thunderbolt ports quantity: 1
Microphone in: Yes
Headphone outputs: 1
Line-in: Yes
DisplayPort version: 1.4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
HDMI ports quantity: 1
USB 3.2 Gen 2x2 Type-C ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 0
USB 2.0 ports quantity: 4
DisplayPorts quantity: 1
VGA (D-Sub) ports quantity: 0
DVI-D ports quantity: 0
Supported storage drive interfaces: M.2, SATA III
RAID support: Yes
Number of storage drives supported: 8
Supported storage drive types: HDD & SSD
Number of HDDs supported: 4
RAID levels: 0, 1, 5, 10
Compliance certificates: Federal Communications Commission (FCC), CE
Width: 305 mm
Depth: 244 mm
