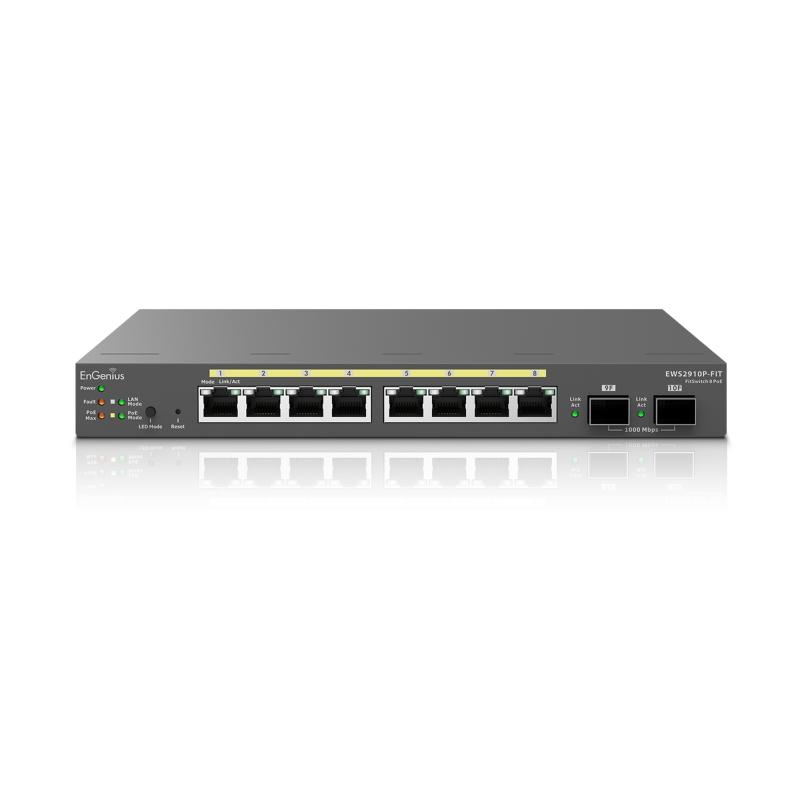

EnGenius Managed Desktop 8-port GbE 55W

Certification: CE, FCC, IC

Jumbo frames support: Yes

Static route: Yes

MAC address table: 8000 entries

Jumbo frames: 9000

Switching capacity: 20 Gbit/s

Number of static routes: 192

Product colour: Black

Rack mounting: Yes

LED indicators: Fault, LAN, PoE, Power

VLAN support: Yes

Quality of Service (QoS) support: Yes

Ethernet LAN data rates: 10,100,1000 Mbit/s

Flow control support: Yes

Virtual LAN features: Port-based VLAN, Tagged VLAN, Voice VLAN

Harmonized System (HS) code: 85176990

Master (outer) case height: 271 mm

Products per master (outer) case: 10 pc(s)

Master (outer) case width: 357 mm

Master (outer) case length: 452 mm

Master (outer) case net weight: 27.4 kg

Master (outer) case gross weight: 8.93 kg

Web-based management: Yes

Switch type: Managed

Switch layer: L2

Access Control List (ACL): Yes

Firmware upgradeable: Yes

Multicast support: Yes

Multicast MAC address table: 256 entries

IPv4 routes: 59

IPv6 routes: 5

10G support: No

Spanning tree protocol: Yes

Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T

Port mirroring: Yes

Link aggregation: Yes

Full duplex: Yes

Operating temperature (T-T): 0 - 40 °C

Operating relative humidity (H-H): 5 - 95%

Manual: Yes

Package width: 395 mm

Package height: 102 mm

Package depth: 310 mm

Package weight: 2.75 kg

Memory type: SDRAM

Flash memory: 32 MB

SFP module slots quantity: 2

Installed SFP modules quantity:

Basic switching RJ-45 Ethernet ports quantity: 8

Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Power over Ethernet (PoE) ports quantity: 8

Installed SFP+ modules quantity:

SFP+ module slots quantity: 2

Total Power over Ethernet (PoE) budget: 55 W

Power source: AC

Power supply included: Yes

Power over Ethernet (PoE): Yes

AC input voltage: 100 - 240 V

AC input frequency: 50/60 Hz

GARP VLAN Registration Protocol (GVRP): Yes

IPv4 & IPv6 features: IPv4/IPv6 access-control list (ACL), IPv6 ping

Authentication type: RADIUS

DHCP features: DHCP relay, DHCP snooping

Security algorithms: SNMP, SNMPv2, SNMPv3

SSH/SSL support: Yes

IGMP snooping: Yes

Height: 27 mm

Weight: 620 g

Width: 105 mm

Depth: 240 mm

WiFi-Standard: ax

Garantia Produsului: 60 luni
