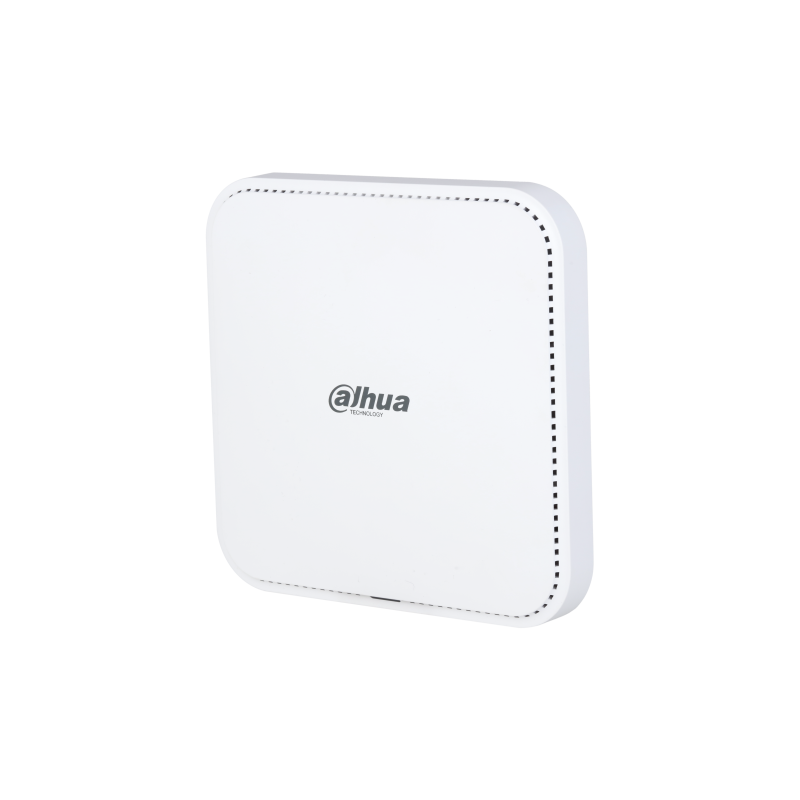

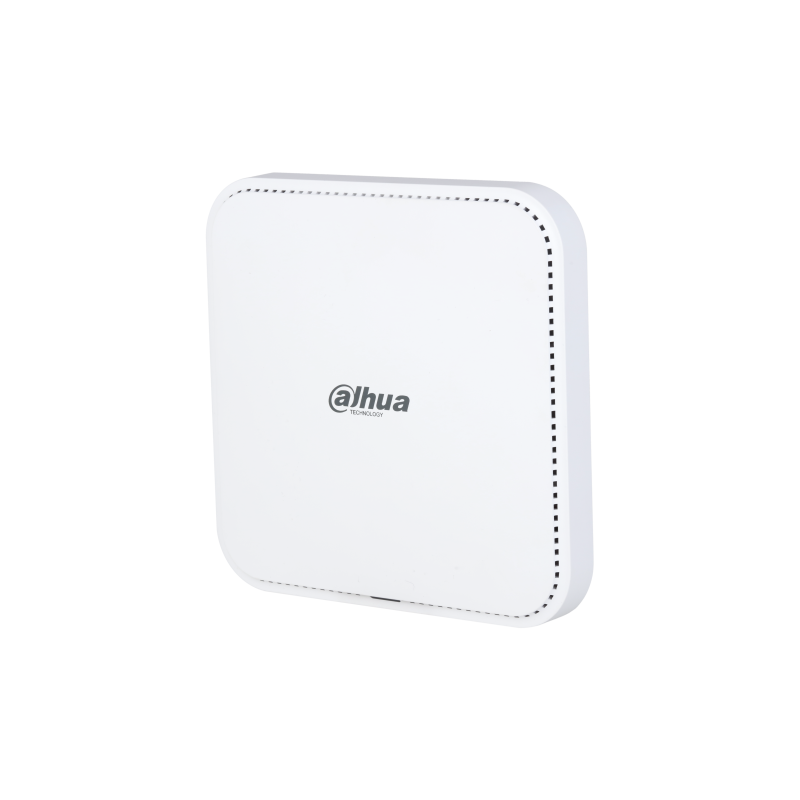

DAHUA DH-EAP6230-C ACCESS POINT

Antenna type: Internal

Antennas quantity: 1

Antenna gain level (max): 5 dBi

Sustainability compliance: Yes

Compliance certificates: CE, Federal Communications Commission (FCC), RoHS

Product colour: White

LED indicators: Yes

Placement: Ceiling

Reset button: Yes

Quality of Service (QoS) support: Yes

Ethernet LAN data rates: 10,100,1000 Mbit/s

MIMO: Yes

MIMO type: Multi User MIMO

5 GHz: Yes

Maximum data transfer rate (5 GHz): 2402 Mbit/s

2.4 GHz: Yes

6 GHz: No

Maximum data transfer rate (2.4 GHz): 574 Mbit/s

Spread spectrum method: OFDMA

Channel bandwidth: 160 MHz

Operating modes: FIT AP, FAT AP

Maximum indoor range: 15 m

Networking standards: IEEE 802.11n, IEEE 802.11a, IEEE 802.11ac, IEEE 802.3af, IEEE 802.11b, IEEE 802.11g

Transmitting power (CE): 25 dBm

Maximum data transfer rate: 3000 Mbit/s

Dynamic Frequency Selection (DFS): Yes

Frequency band: 2.4 - 5.85 GHz

Syslog: Yes

Web-based management: Yes

Firmware upgradeable: Yes

Operating relative humidity (H-H): 5 - 95%

Storage temperature (T-T): -40 - 70 °C

Operating temperature (T-T): -20 - 45 °C

Input current: 1 A

Quantity per pack: 1 pc(s)

Package depth: 243 mm

Package height: 76 mm

Package weight: 890 g

Package width: 235 mm

Flash memory: 8 MB

WAN connection: Ethernet (RJ-45)

USB 2.0 ports quantity:

DC-in jack: Yes

Ethernet LAN (RJ-45) ports: 1

DC voltage range: 12 V

Power over Ethernet (PoE): Yes

Power consumption (max): 15 W

Supported network protocols: UDP;IPv4;IP Filter;DNS;HTTP;PPPoE;NTP;DHCP;Qos;T CP/IP;DDNS;UPnP;ICMP

Security algorithms: WPA-PSK, WPA2-PSK, WPA3-PSK

Service Set Identifier (SSID) features: Hidden SSID

MAC address filtering: Yes

IP address filtering: Yes

Height: 37 mm

Weight: 550 g

Width: 188 mm

Depth: 18.8 mm

WiFi-Standard: ac

Garantia Produsului: 24 luni
