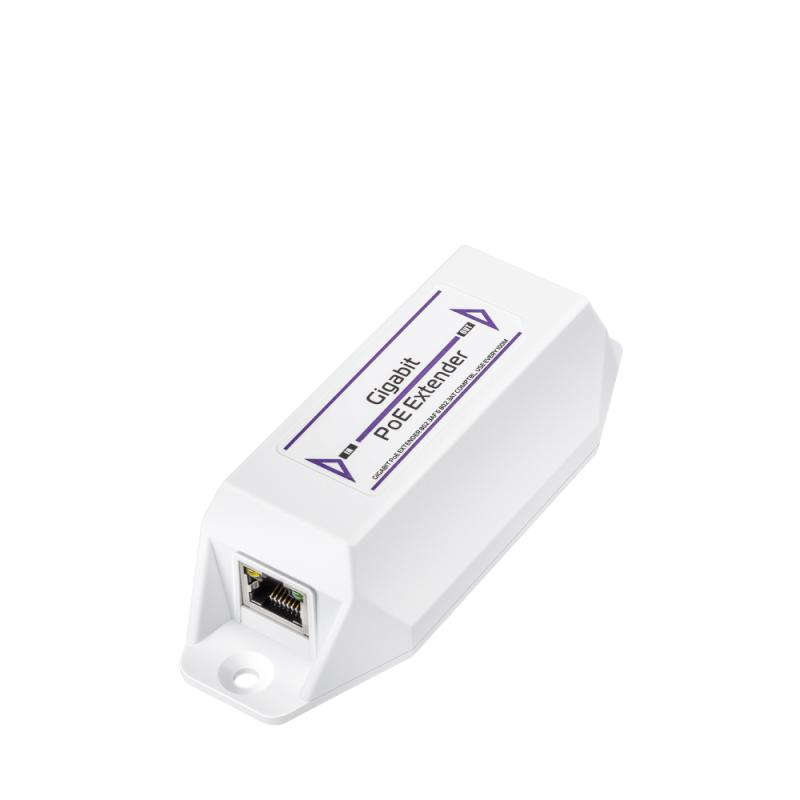

CUDY Gigabit PoE+ Extender

CUDY 10/100/1000Mbps PoE+ Extender, IEEE802.3af/at
Garantie: 24 luni


Specificatii tehnice

Product colour: White
LED indicators: Activity, Link, PoE
Wall mountable: Yes
Maximum operating distance: 100 m
Pin assignment & polarity: 1/2 (-), 3/6 (+), 7/8 (-), 4/5 (+)
Easy to install: Yes
Plug and Play: Yes
Quantity per pack: 1 pc(s)
Cable types supported: Cat5, Cat5e, Cat6, Cat6+, Cat6a, Cat6e, Cat7, Cat7e, Cat8, Cat8.1
Ethernet interface type: Gigabit Ethernet
Duplex system: Full, Half
Cabling technology: 10/100/1000
Ethernet LAN data rates: 10,100,1000 Mbit/s
Power over Ethernet (PoE): Yes
Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3i, IEEE 802.3x
Storage temperature (T-T): -40 - 70 °C
Operating temperature (T-T): 14 - 113 °F
Storage relative humidity (H-H): 5 - 95%
Operating relative humidity (H-H): 10 - 95%
Manual: Yes
Package type: Box
Package depth: 53.8 mm
Package height: 45.6 mm
Package width: 133.6 mm
RJ-45 input ports: 1
RJ-45 output ports: 1
Ethernet LAN (RJ-45) ports: 2
Output power: 30 W
Depth: 60 mm
Height: 40 mm
Width: 145 mm
