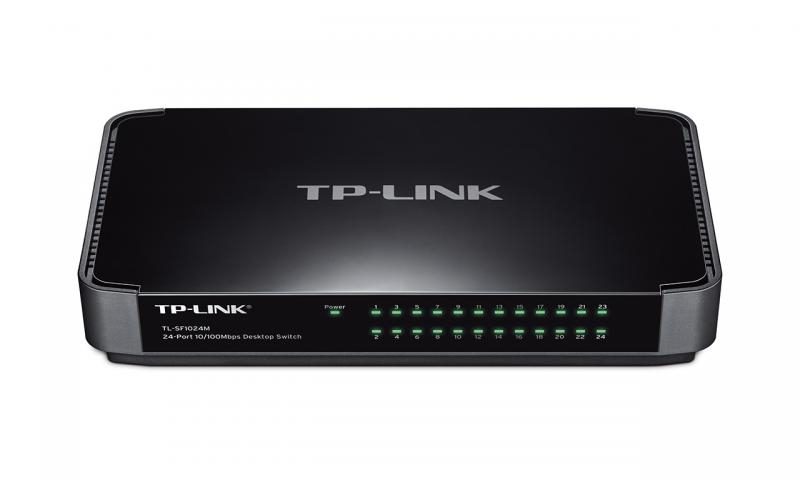

TPL SW 24P-FE TL-SF1024M

Certification: FCC, CE, RoHS

MAC address table: 8000 entries

Store-and-forward: Yes

Switching capacity: 4.8 Gbit/s

LED indicators: Yes

Networking standards: IEEE 802.3x, IEEE 802.3, IEEE 802.3u

Switch type: Unmanaged

Copper ethernet cabling technology: 10BASE-T, 100BASE-TX

MAC address auto-learning supported: Yes

Full duplex: Yes

Power over Ethernet (PoE): No

Auto MDI/MDI-X: Yes

Auto-negotiation: Yes

10G support: No

Half duplex: Yes

Storage relative humidity (H-H): 5 - 90%

Operating temperature (T-T): 0 - 40 °C

Operating relative humidity (H-H): 10 - 90%

Storage temperature (T-T): -40 - 70 °C

Quick start guide: Yes

Package weight: 810 g

Package depth: 232 mm

Package height: 75 mm

Package width: 305 mm

Basic switching RJ-45 Ethernet ports quantity: 24

Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)

Installed SFP+ modules quantity:

Installed SFP modules quantity:

Input current: 0.6 A

Power supply included: Yes

Input voltage: 9 V

Power source: DC

Supported network protocols: CSMA/CD

Height: 45 mm

Depth: 126 mm

Width: 222 mm

LAN port type: FastEthernet

Garantia Produsului: 36 luni
