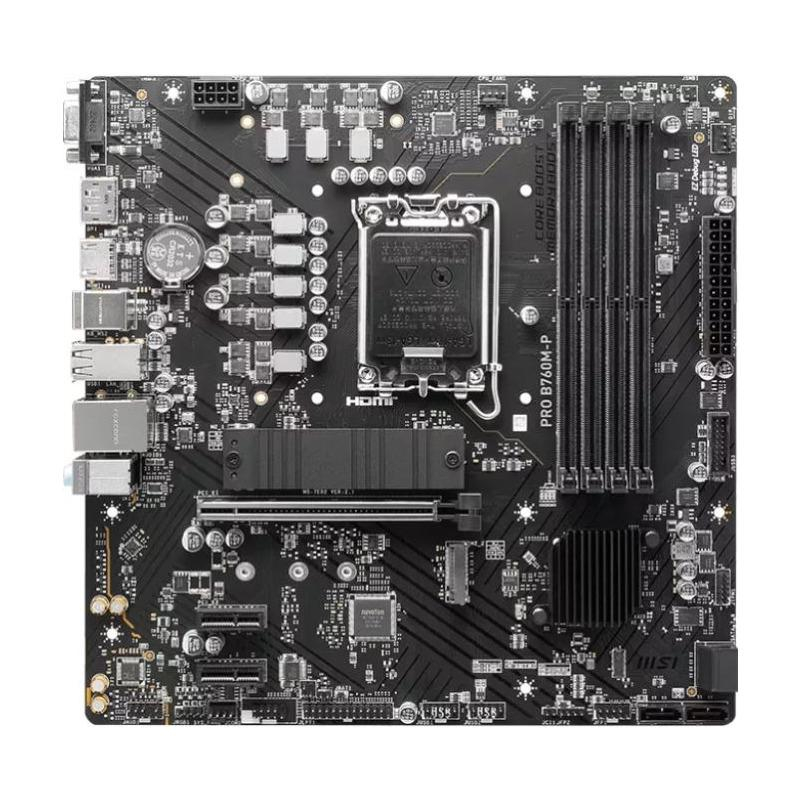

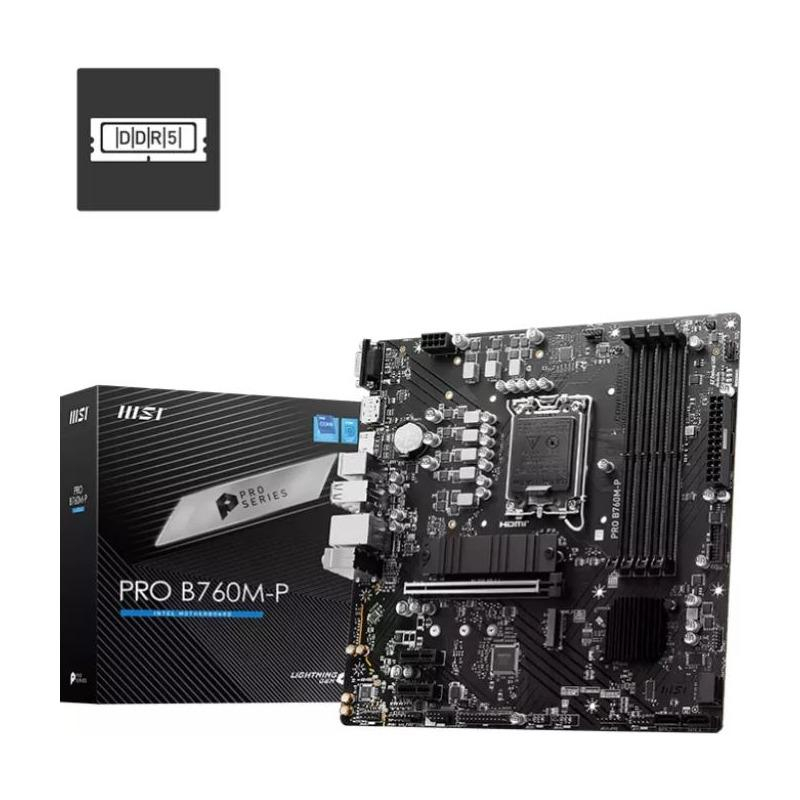

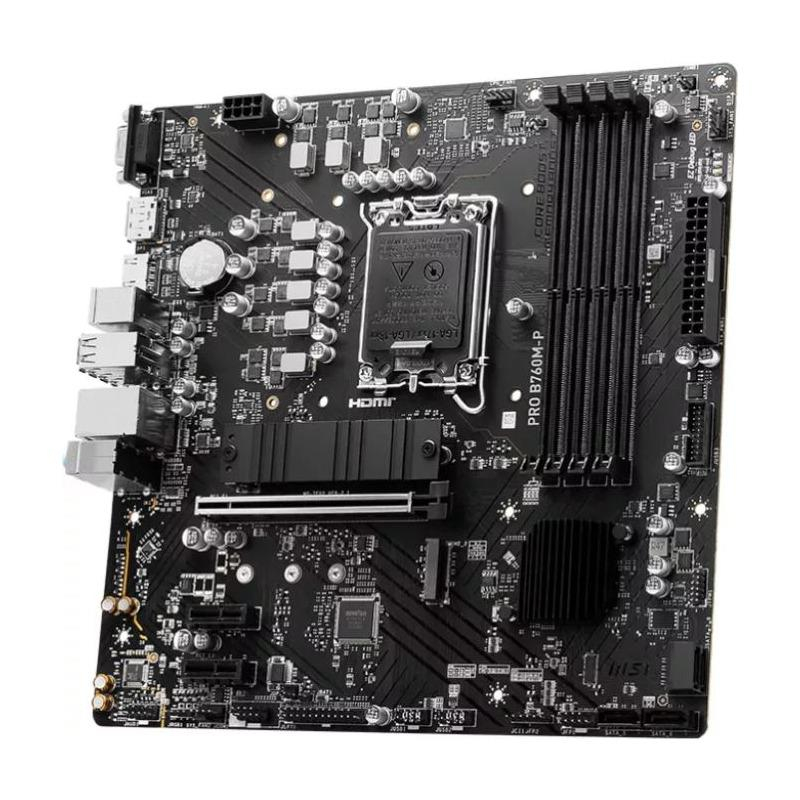

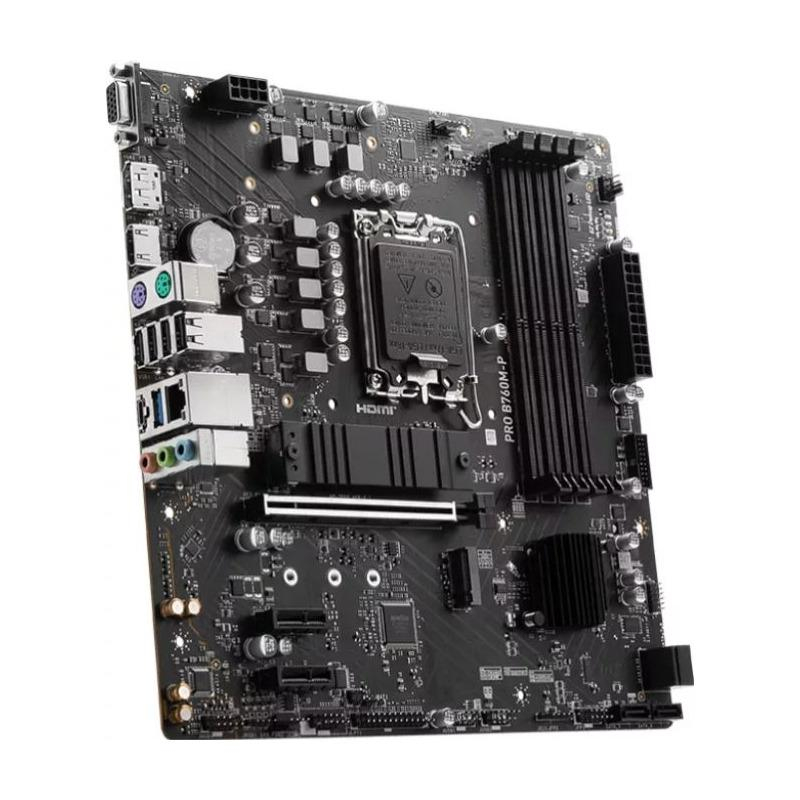

MB MSI PRO B760M-P DDR5 LGA1700

BIOS type: UEFI AMI

BIOS memory size: 256 Mbit

Clear CMOS jumper: Yes

ACPI version: 6.4

System Management BIOS (SMBIOS) version: 3.5

PCI Express x1 (Gen 4.x) slots: 2

PCI Express x16 (Gen 4.x) slots: 1

Audio Chip: Realtek ALC897

Audio output channels: 7.1 channels

Component for: PC

Motherboard chipset: Intel B760

Motherboard chipset family: Intel

Windows operating systems supported: Windows 10 x64, Windows 11 x64

Motherboard form factor: micro ATX

Power source type: ATX

Number of COM connectors: 1

USB 3.2 Gen 2 (3.1 Gen 2) connectors:

Number of SATA III connectors: 4

Front panel audio connector: Yes

ATX Power connector (24-pin): Yes

CPU fan connector: Yes

Front panel connector: Yes

TPM connector: Yes

RGB LED pin header: Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

Parallel connector: Yes

Chassis intrusion connector: Yes

USB 2.0 connectors: 4

Supported memory clock speeds: 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800 MHz

ECC сompatibility: Non-ECC

Supported memory types: DDR5-SDRAM

Number of memory slots: 4

Unbuffered memory: Yes

Maximum internal memory: 192 GB

LAN controller: Realtek RTL8111H

Wi-FI: No

Ethernet interface type: Gigabit Ethernet

Ethernet LAN: Yes

Cables included: SATA

HDMI ports quantity: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1

DisplayPort version: 1.4

USB 2.0 ports quantity: 4

HDMI version: 1.4

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:

DisplayPorts quantity: 1

Processor socket: LGA 1700

Supported processor sockets: LGA 1700

Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold

Processor manufacturer: Intel

VGA (D-Sub) ports quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity:

Line-in: Yes

PS/2 ports quantity: 2

Microphone in: Yes

Headphone outputs: 1

Number of storage drives supported: 6

Supported storage drive interfaces: SATA III

Number of HDDs supported: 4

RAID levels: 0, 1, 5, 10

RAID support: Yes

Supported storage drive types: HDD & SSD

Width: 243.8 mm

Depth: 243.8 mm

PCI: 0

USB3: 4-8

PCI-Ex16: 1

Onboard-CPU: No

MB-Format: ATX

MB-Socket: 1700

PCI-Ex1: 2

RAM-Slots: 2

Garantia Produsului: 36 luni
