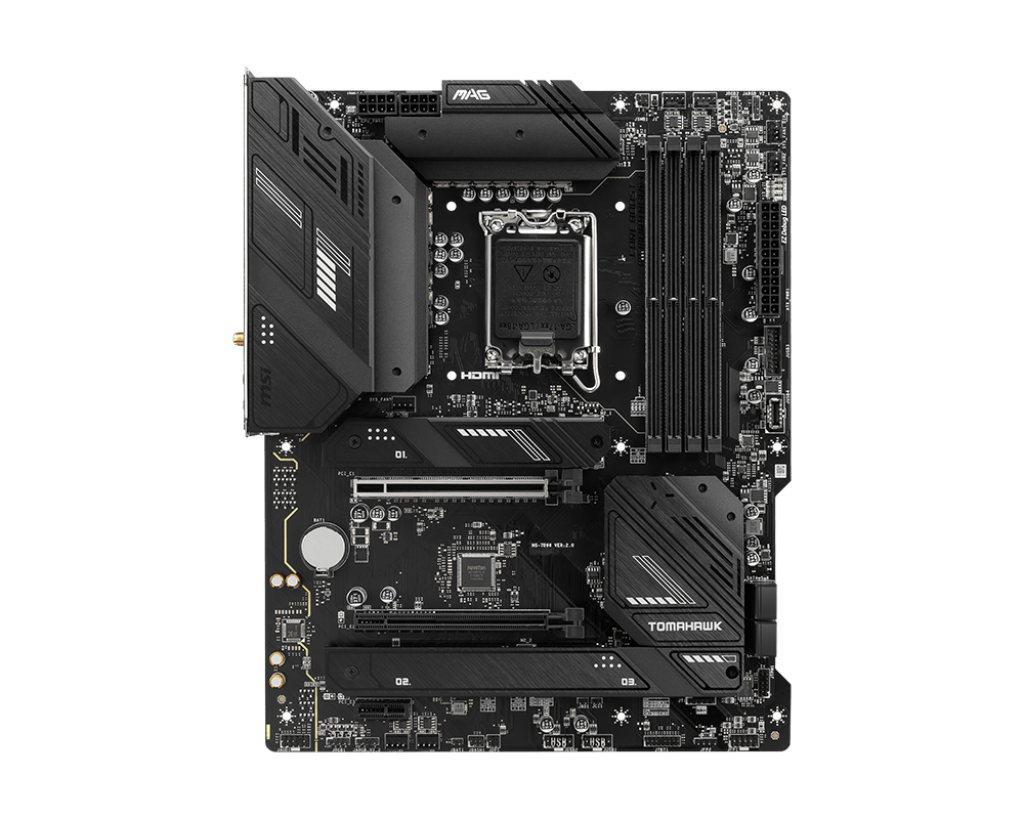

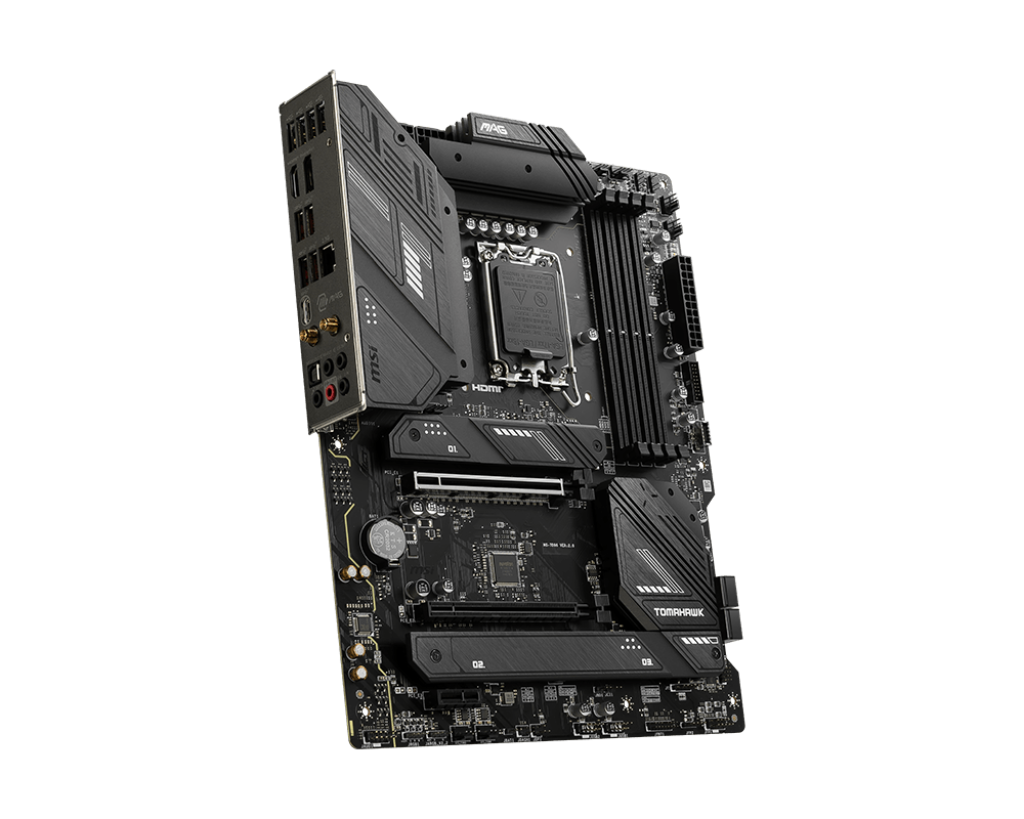

MB MSI MAG B760 TOMAHAWK WIFI LGA1700

BIOS type: UEFI AMI

BIOS memory size: 256 Mbit

ACPI version: 6.4

System Management BIOS (SMBIOS) version: 3.5

PCI Express x16 slots: 2

Number of M.2 (M) slots: 3

PCI Express x1 (Gen 3.x) slots: 1

Audio Chip: Realtek ALC897

Audio output channels: 7.1 channels

Component for: PC

Windows operating systems supported: Windows 10, Windows 11

Motherboard form factor: ATX

Motherboard chipset family: Intel

Power source type: ATX

On-board graphics card: No

S/PDIF out connector: Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

USB 2.0 connectors: 4

USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1

Front panel connector: Yes

TPM connector: Yes

RGB LED pin header: Yes

Number of SATA III connectors: 4

Number of SATA II connectors:

Number of SATA connectors:

Front panel audio connector: Yes

ATX Power connector (24-pin): Yes

CPU fan connector: Yes

Supported memory types: DDR5-SDRAM

Supported memory clock speed (max): 7000 MHz

Supported memory clock speeds: 7000, 6800, 6600, 6400, 6200, 6000, 5800, 5600, 5400, 5200, 5000, 4800 MHz

ECC сompatibility: Non-ECC

Number of memory slots: 4

Memory slots type: DIMM

Memory channels: Dual-channel

Maximum internal memory: 128 GB

Top Wi-Fi standard: Wi-Fi 6E (802.11ax)

Ethernet LAN: Yes

Wi-FI: Yes

Bluetooth version: 5.3

Ethernet interface type: 2.5 Gigabit Ethernet

mSATA ports quantity:

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 4

DVI-D ports quantity:

DisplayPort version: 1.4

HDMI ports quantity: 1

DisplayPorts quantity: 1

HDMI version: 2.1

USB 2.0 ports quantity: 4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:

Processor manufacturer: Intel

Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold

Processor socket: LGA 1700

Maximum number of SMP processors: 1

Supported processor sockets: LGA 1700

USB 3.2 Gen 2x2 Type-C ports quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity:

VGA (D-Sub) ports quantity: 0

Supported storage drive interfaces: M.2, SATA III

RAID support: Yes

RAID levels: 0, 1, 5, 10

Width: 243.8 mm

Depth: 304.8 mm

Onboard-CPU: No

PCI: 0

Garantia Produsului: 36 luni
