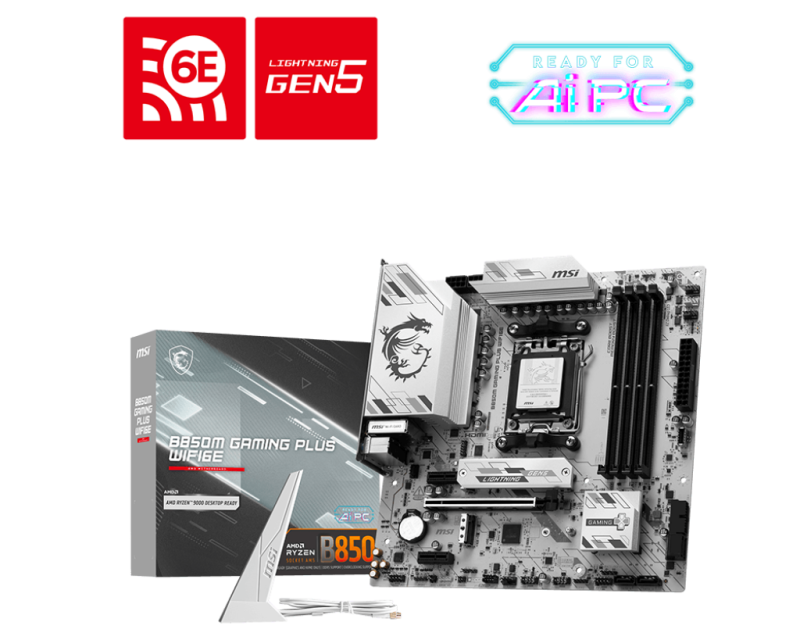

MB MSI B850M GAMING PLUS WIFI6E

Serial-or-Paralel: No/No

Serial-or-Paralel: No/No

Versiune bluetooth: 5.4

BIOS type: UEFI AMI

BIOS memory size: 256 Mbit

ACPI version: 6.5

System Management BIOS (SMBIOS) version: 3.7

Bluetooth: Yes

Product colour: Black

PCI Express x4 slots: 1

2nd M.2 highest PCI Express generation: 5.0

Number of M.2 (M) slots: 3

1st M.2 highest PCI Express generation: 5.0

3rd M.2 highest PCI Express generation: 4.0

1st M.2 largest key size: 2280

2nd M.2 largest key size: 2280

3rd M.2 largest key size: 2280

PCI Express x16 (Gen 3.x) slots: 1

PCI Express x16 (Gen 5.x) slots: 1

PCI Express x16 slots: 1

PCI Express x16 (Gen 4.x) slots: 1

Audio Chip: Realtek ALC897

Audio output channels: 7.1 channels

Component for: PC

Windows operating systems supported: Windows 11 x64

Motherboard form factor: micro ATX

Motherboard chipset family: AMD

Motherboard chipset: AMD B850

On-board graphics card: No

Number of SATA III connectors: 4

Number of SATA II connectors:

Number of SATA connectors:

Front panel audio connector: Yes

ATX Power connector (24-pin): Yes

CPU fan connector: Yes

USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1

Front panel connector: Yes

Number of CPU fan connectors: 2

RGB LED pin header: Yes

Total number of SATA connectors: 4

USB 2.0 connectors: 4

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

Number of water pump connectors: 1

Number of RGB LED pin headers: 3

Supported memory clock speeds: 4800,6000,6400,8200 MHz

Supported memory clock speed (max): 8200 MHz

ECC сompatibility: Non-ECC

Supported memory types: DDR5-SDRAM

Maximum internal memory: 256 GB

Number of memory slots: 4

Memory slots type: DIMM

Memory channels: Dual-channel

Ethernet LAN: Yes

Top Wi-Fi standard: Wi-Fi 7 (802.11be)

Wi-FI: Yes

Ethernet interface type: 5 Gigabit Ethernet

LAN controller: Realtek RTL8126

Bluetooth version: 5.4

mSATA ports quantity:

HDMI version: 2.1

HDMI ports quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4

DVI-D ports quantity:

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2

USB 2.0 ports quantity:

Processor manufacturer: AMD

Processor socket: Socket AM5

Supported processor sockets: Socket AM5

Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Ethernet LAN (RJ-45) ports: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity:

VGA (D-Sub) ports quantity: 0

RAID support: Yes

Supported storage drive interfaces: M.2

Supported storage drive types: HDD & SSD

RAID levels: 0, 1, 10

Number of HDDs supported: 4

Number of storage drives supported: 7

Depth: 243.8 mm

Width: 243.8 mm

MB-Format: ATX

RAM-Slots: 4

MB-Socket: AM5

PCI: 0

USB3: 4-8

PCI-Ex1: 1

PCI-Ex16: 1

Onboard-CPU: No

Garantia Produsului: 36 luni
