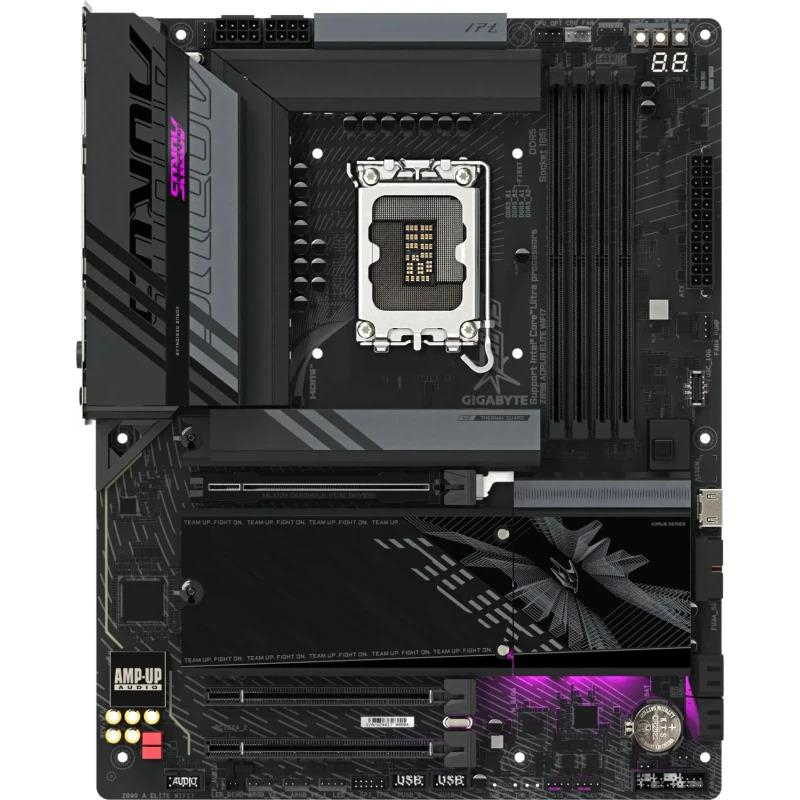

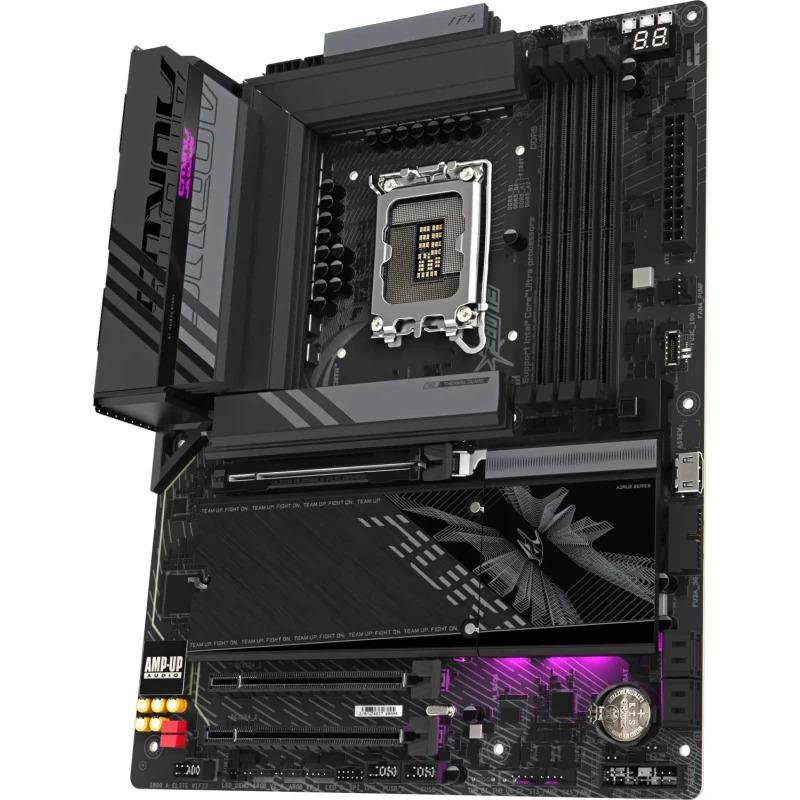

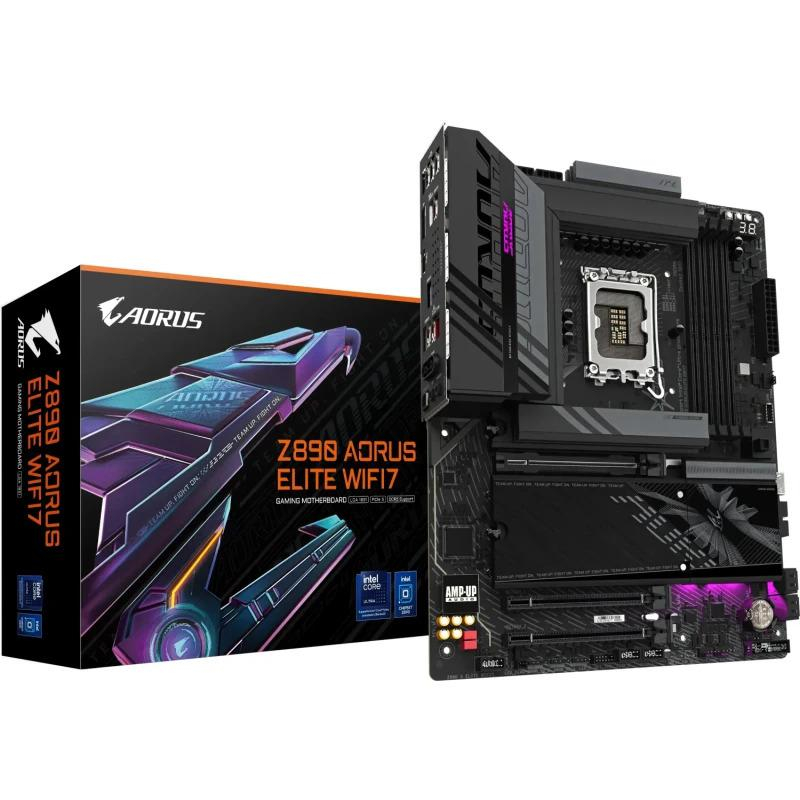

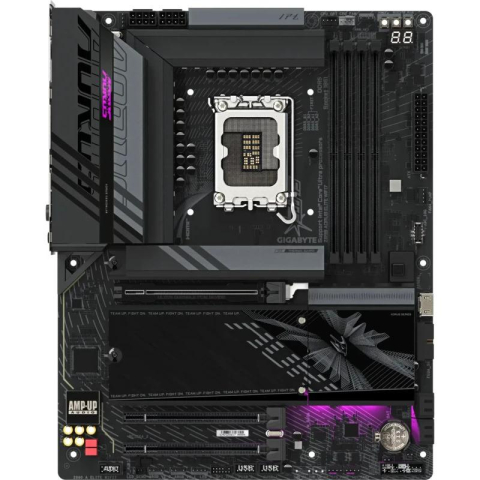

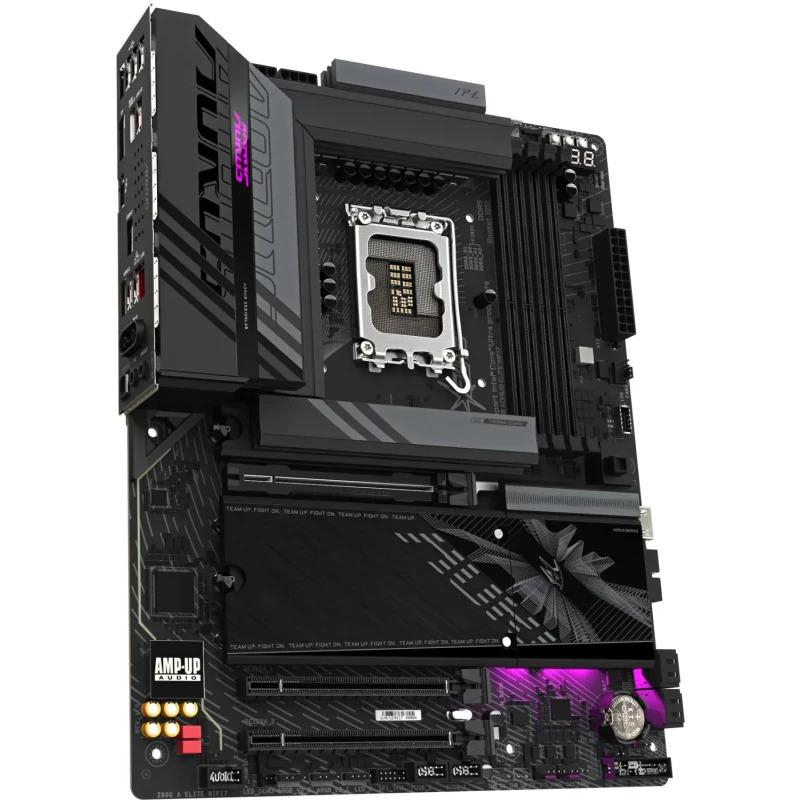

MB GIGABYTE Z890 A ELITE WIFI7

Lithium weight per battery: 0.07 g

Battery weight: 3 g

Number of battery cells: 1

Battery technology: Lithium-Manganese Dioxide (LiMnO2)

Battery type: CR2032

ACPI version: 5.0

Desktop Management Interface (DMI) version: 2.7

System Management BIOS (SMBIOS) version: 2.7

Clear CMOS button: Yes

BIOS type: UEFI AMI

BIOS memory size: 256 Mbit

Clear CMOS jumper: Yes

Number of M.2 (M) slots: 4

PCI Express x16 (Gen 5.x) slots: 1

PCI Express x16 (Gen 4.x) slots: 2

Audio output channels: 7.1 channels

Component for: PC

PC health monitoring: Fan, Temperature, Voltage

Motherboard chipset: Intel Z890

Motherboard form factor: ATX

Motherboard chipset family: Intel

Windows operating systems supported: Windows 11 x64

Audio Chip: Realtek ALC1220

On-board graphics card: No

DirectX version: 12.0

USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1

TPM connector: Yes

RGB LED pin header: Yes

USB 2.0 connectors: 2

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

Number of SATA III connectors: 4

Number of SATA II connectors:

Number of SATA connectors:

ATX Power connector (24-pin): Yes

EPS power connector (8-pin): Yes

Total number of SATA connectors: 4

12V power connector: Yes

Number of EPS power connectors (8-pin): 1

Country of origin: China

Supported memory clock speed (max): 8800 MHz

Supported memory module capacities: 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 24GB, 32GB, 40GB, 48GB, 64GB

ECC сompatibility: Non-ECC

Supported memory types: DDR5-SDRAM

Maximum internal memory: 256 GB

Number of memory slots: 4

Memory slots type: DIMM

Memory channels: Dual-channel

Ethernet LAN: Yes

Wi-FI: Yes

Top Wi-Fi standard: Wi-Fi 7 (802.11be)

Ethernet interface type: 2.5 Gigabit Ethernet

Wi-Fi standards: Wi-Fi 7 (802.11be)

Bluetooth version: 5.4

WLAN controller model: MediaTek MT7925

Weight: 2.23 kg

mSATA ports quantity:

Bundled software: Norton® Internet Security (OEM version)nLAN bandwidth management software

Package weight: 2.5 kg

Package width: 335 mm

Package depth: 270 mm

Package height: 80 mm

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2

HDMI ports quantity: 1

DVI-D ports quantity:

DisplayPorts quantity: 2

USB 2.0 ports quantity: 4

Processor manufacturer: Intel

Compatible processor series: Intel Core Ultra (Series 2)

Maximum internal memory supported by processor: 256 GB

Processor socket: LGA 1851 (Socket V1)

Supported processor sockets: LGA 1851

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity:

S/PDIF out port: Yes

VGA (D-Sub) ports quantity: 0

Microphone in: Yes

Thunderbolt ports quantity: 1

Supported storage drive interfaces: M.2, SATA III

Supported storage drive types: HDD & SSD

RAID support: Yes

RAID levels: 0, 1, 5, 10

Number of HDDs supported: 8

Number of storage drives supported: 4

Width: 30.5 mm

Height: 35 mm

Depth: 24.4 mm

Onboard-CPU: No

PCI: 0

Serial-or-Paralel: Yes/No

Garantia Produsului: 36 luni
