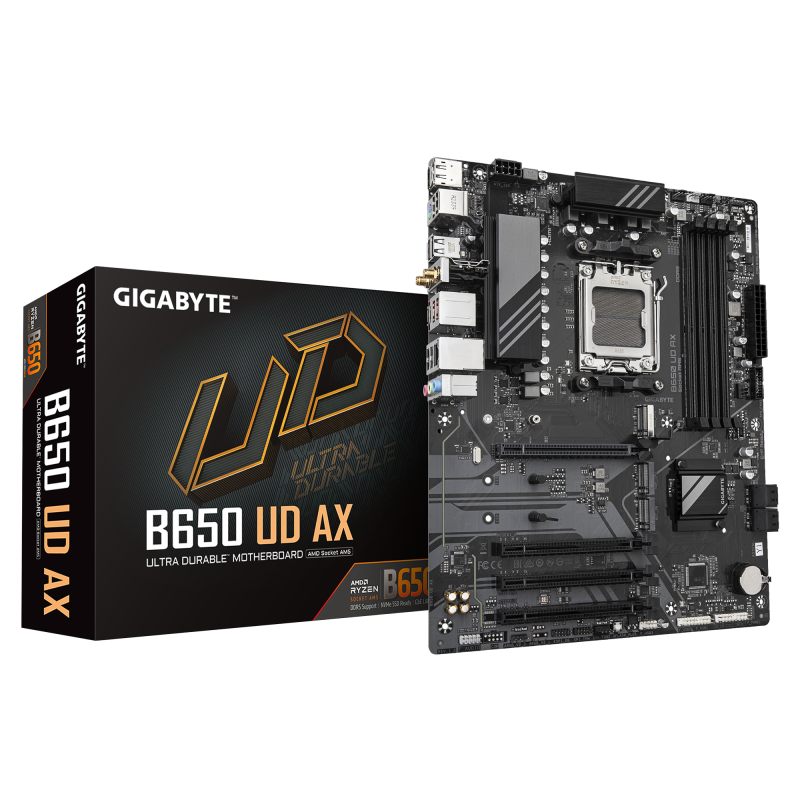

MB GIGABYTE B650 UD AX

Serial-or-Paralel: No/No

Serial-or-Paralel: No/No

Lithium weight per battery: 0.07 g

Battery weight: 3 g

Number of battery cells: 1

Battery technology: Lithium-Manganese Dioxide (LiMnO2)

Battery type: CR2032

ACPI version: 5.0

Desktop Management Interface (DMI) version: 2.7

System Management BIOS (SMBIOS) version: 2.7

Clear CMOS button: Yes

BIOS type: UEFI AMI

BIOS memory size: 256 Mbit

Clear CMOS jumper: Yes

Product colour: Brown

Number of M.2 (M) slots: 3

1st M.2 largest key size: 25110

1st M.2 highest PCI Express generation: 5.0

2nd M.2 largest key size: 22110

2nd M.2 highest PCI Express generation: 4.0

3rd M.2 largest key size: 22110

3rd M.2 highest PCI Express generation: 4.0

PCI Express x16 (Gen 3.x) slots: 2

PCI Express x16 (Gen 4.x) slots: 1

Audio output channels: 7.1 channels

Audio Chip: Realtek ALC897

Component for: PC

Motherboard chipset family: AMD

Motherboard form factor: ATX

PC health monitoring: Fan, Temperature, Voltage, Water cooling

Windows operating systems supported: Windows 10 x64, Windows 11 x64

Motherboard chipset: AMD B650

Power source type: ATX

Parallel processing technology support: Not supported

DirectX version: 12.0

Maximum resolution: 4096 x 2160 pixels

HDCP: Yes

USB 3.2 Gen 2 (3.1 Gen 2) connectors:

Number of SATA III connectors: 4

Front panel audio connector: Yes

ATX Power connector (24-pin): Yes

CPU fan connector: Yes

EPS power connector (8-pin): Yes

Front panel connector: Yes

Number of CPU fan connectors: 2

TPM connector: Yes

Number of water pump connectors: 2

RGB LED pin header: Yes

Number of RGB LED pin headers: 4

Number of EPS power connectors (8-pin): 1

12V power connector: Yes

Number of chassis fan connectors: 3

USB 2.0 connectors: 3

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

Serial port headers: 1

Country of origin: China

Products per shipping (inner) case: 1 pc(s)

Supported memory clock speed (max): 7600 MHz

ECC сompatibility: Non-ECC

Supported memory clock speeds: 4800,5200,5600,6000,6200,6400,6600,6800,7000,7200,7600 MHz

Supported memory types: DDR5-SDRAM

Maximum internal memory: 256 GB

Maximum internal memory per slot: 64 GB

Number of memory slots: 4

Memory slots type: DIMM

Unbuffered memory: Yes

Memory channels: Dual-channel

Top Wi-Fi standard: Wi-Fi 6 (802.11ax)

Ethernet LAN: Yes

Ethernet interface type: Gigabit Ethernet

Wi-FI: Yes

LAN controller: Realtek RTL8111H

WLAN controller model: Realtek RTL8851BE

Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)

Weight: 1.95 kg

Bundled software: Norton® Internet Security (OEM version)nLAN bandwidth management software

Batteries included: Yes

Antenna included: Yes

Screws included: Yes

Package weight: 2.2 kg

Package width: 335 mm

Package depth: 270 mm

Package height: 80 mm

Warranty period: 3 year(s)

DVI-D ports quantity:

DisplayPorts quantity: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:

HDMI version: 2.1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:

DisplayPort version: 1.4

HDMI ports quantity: 1

USB 2.0 ports quantity: 6

Processor socket: Socket AM5

Supported processor sockets: Socket AM5

Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Processor manufacturer: AMD

WiFi-AP antenna jack: 2

VGA (D-Sub) ports quantity: 0

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1

Microphone in: Yes

Headphone outputs: 1

RAID levels: 0, 1, 10

RAID support: Yes

Supported storage drive types: HDD & SSD

Supported storage drive interfaces: M.2, SATA III

Number of HDDs supported: 4

Number of storage drives supported: 7

Width: 30.5 mm

Depth: 24.4 mm

Height: 35 mm

MB-Format: ATX

RAM-Slots: 4

MB-Socket: AM5

PCI-Ex16: 4

PCI: 0

USB3: 4-8

PCI-Ex1: 1

Onboard-CPU: No
