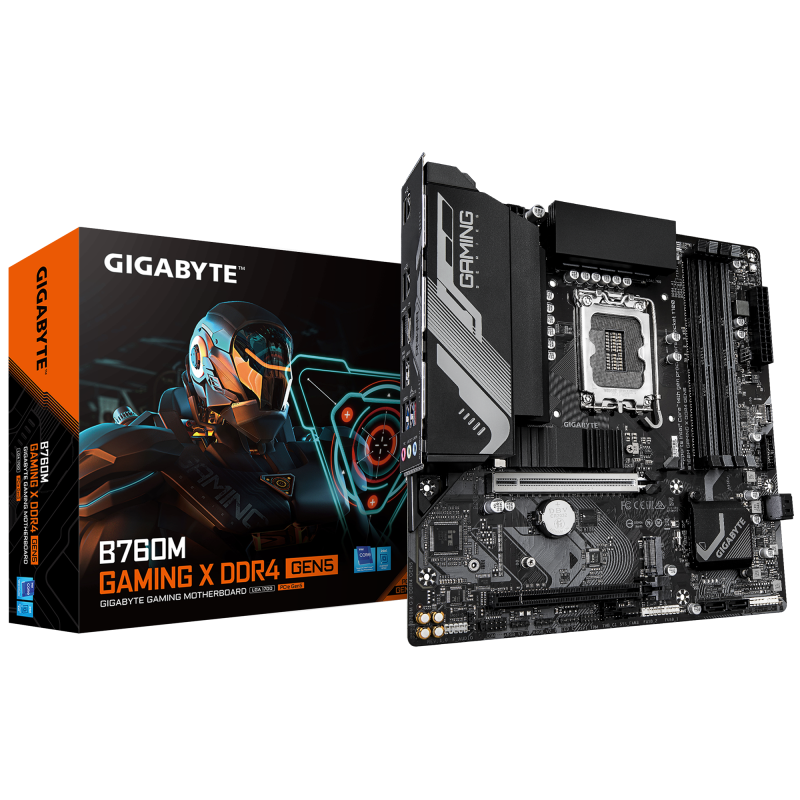

MB GB B760M GAMING X DDR4 LGA1700

Lithium weight per battery: 0.07 g

Battery weight: 3 g

Number of battery cells: 1

Battery technology: Lithium-Manganese Dioxide (LiMnO2)

Battery type: CR2032

BIOS type: UEFI AMI

BIOS memory size: 256 Mbit

Clear CMOS jumper: Yes

ACPI version: 5.0

Desktop Management Interface (DMI) version: 2.7

System Management BIOS (SMBIOS) version: 2.7

Cooling type: Passive

Product colour: Dark brown

1st M.2 largest key size: 2280

1st M.2 highest PCI Express generation: 4.0

Number of M.2 (M) slots: 2

PCI Express x16 (Gen 3.x) slots: 1

PCI Express x16 (Gen 5.x) slots: 1

2nd M.2 largest key size: 22110

2nd M.2 highest PCI Express generation: 4.0

Motherboard form factor: micro ATX

Motherboard chipset family: Intel

PC health monitoring: Fan, Temperature, Voltage, Water cooling

Windows operating systems supported: Windows 10 x64, Windows 11 x64

Audio Chip: Realtek ALC897

Audio output channels: 7.1 channels

Component for: PC

Motherboard chipset: Intel B760

Power source type: ATX

Maximum resolution: 4096 x 2304 pixels

HDCP: Yes

Parallel processing technology support: Not supported

DirectX version: 12.0

USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1

Front panel connector: Yes

TPM connector: Yes

RGB LED pin header: Yes

Number of RGB LED pin headers: 4

USB 2.0 connectors: 2

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

Number of SATA III connectors: 4

Front panel audio connector: Yes

ATX Power connector (24-pin): Yes

CPU fan connector: Yes

EPS power connector (8-pin): Yes

Thunderbolt headers: 2

12V power connector: Yes

Serial port headers: 1

Number of chassis fan connectors: 3

S/PDIF out connector: Yes

Number of EPS power connectors (8-pin): 1

Number of CPU fan connectors: 1

Products per shipping (inner) case: 1 pc(s)

Country of origin: China

Supported memory clock speed (max): 3200 MHz

Maximum internal memory per slot: 32 GB

Supported memory clock speeds: 3200,3000,2933,2666,2400,2133 MHz

Number of memory slots: 4

Memory slots type: DIMM

Unbuffered memory: Yes

ECC сompatibility: ECC & Non-ECC

Supported memory types: DDR4-SDRAM

Memory channels: Dual-channel

Maximum internal memory: 128 GB

Ethernet LAN: Yes

Wi-FI: No

Ethernet interface type: 2.5 Gigabit Ethernet

LAN controller: Realtek RTL8125

Weight: 11.9 kg

Bundled software: Norton® Internet Security (OEM version); LAN bandwidth management software

Batteries included: Yes

Screws included: Yes

Package height: 68 mm

Package width: 270 mm

Package depth: 268 mm

Package weight: 1.6 kg

Warranty period: 3 year(s)

DVI-D ports quantity:

DisplayPort version: 1.2

DisplayPorts quantity: 1

USB 2.0 ports quantity: 5

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:

HDMI ports quantity: 1

HDMI version: 2.1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3

Processor manufacturer: Intel

Processor socket: LGA 1700

Supported processor sockets: LGA 1700

Ethernet LAN (RJ-45) ports: 1

Microphone in: Yes

Headphone outputs: 1

VGA (D-Sub) ports quantity: 0

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity:

Line-in: Yes

Supported storage drive types: HDD & SSD

RAID support: Yes

Number of HDDs supported: 4

RAID levels: 0, 1, 5, 10

Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III

Number of storage drives supported: 6

Height: 35 mm

Width: 244 mm

Depth: 244 mm

MB-Socket: 1700

PCI-Ex1: 0

RAM-Slots: 4

MB-Format: micro-ATX

PCI: 0

Serial-or-Paralel: No/No

USB3: 4-8

PCI-Ex16: 1

Onboard-CPU: No

Garantia Produsului: 36 luni
