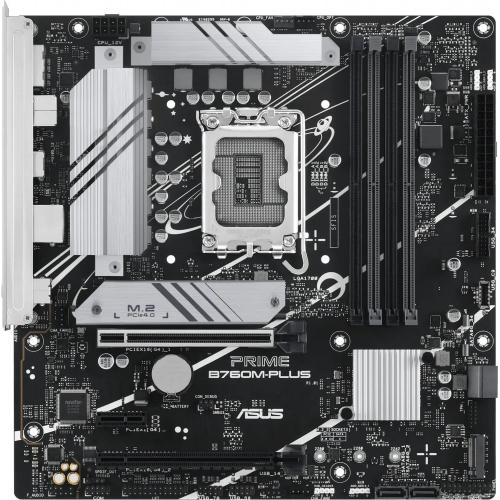

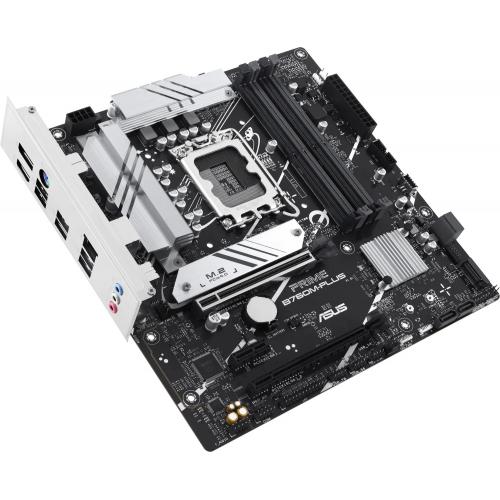

MB AS PRIME B760M-PLUS LGA1700 DDR5

BIOS type: UEFI AMI

BIOS memory size: 128 Mbit

PCI Express x1 (Gen 4.x) slots: 1

Number of M.2 (M) slots: 2

PCI Express x16 (Gen 4.x) slots: 2

Audio output channels: 7.1 channels

Windows operating systems supported: Windows 10 x64, Windows 11

Component for: PC

Motherboard chipset: Intel B760

Motherboard form factor: micro ATX

Motherboard chipset family: Intel

Parallel processing technology support: Not supported

TPM connector: Yes

RGB LED pin header: Yes

USB 3.2 Gen 2 (3.1 Gen 2) connectors:

Number of SATA III connectors: 4

Front panel audio connector: Yes

ATX Power connector (24-pin): Yes

CPU fan connector: Yes

Number of chassis fan connectors: 2

EPS power connector (8-pin): Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

USB 2.0 connectors: 3

S/PDIF out connector: Yes

Number of COM connectors: 1

12V power connector: Yes

ECC сompatibility: Non-ECC

Supported memory clock speed (max): 7200 MHz

Supported memory clock speeds: 7200, 7000, 6800, 6600, 6400, 6200, 6000, 5800, 5600, 5400, 5200, 5000, 4800 MHz

Supported memory types: DDR5-SDRAM

Number of memory slots: 4

Memory slots type: DIMM

Unbuffered memory: Yes

Maximum internal memory: 192 GB

Memory channels: Dual-channel

Ethernet LAN: Yes

Wi-FI: No

Ethernet interface type: 2.5 Gigabit Ethernet

Cables included: SATA

Screws included: Yes

USB 2.0 ports quantity: 4

DVI-D ports quantity:

DisplayPorts quantity: 1

HDMI ports quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:

Processor manufacturer: Intel

Processor socket: LGA 1700

Supported processor sockets: LGA 1700

PS/2 ports quantity: 1

Microphone in: Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity:

VGA (D-Sub) ports quantity: 0

RAID support: Yes

Supported storage drive types: HDD & SSD

Supported storage drive interfaces: M.2, SATA III

Number of storage drives supported: 6

RAID levels: 0, 1, 5, 10

Width: 244 mm

Depth: 24.4 mm

Onboard-CPU: No

PCI: 0

Serial-or-Paralel: No/No

Garantia Produsului: 36 luni
