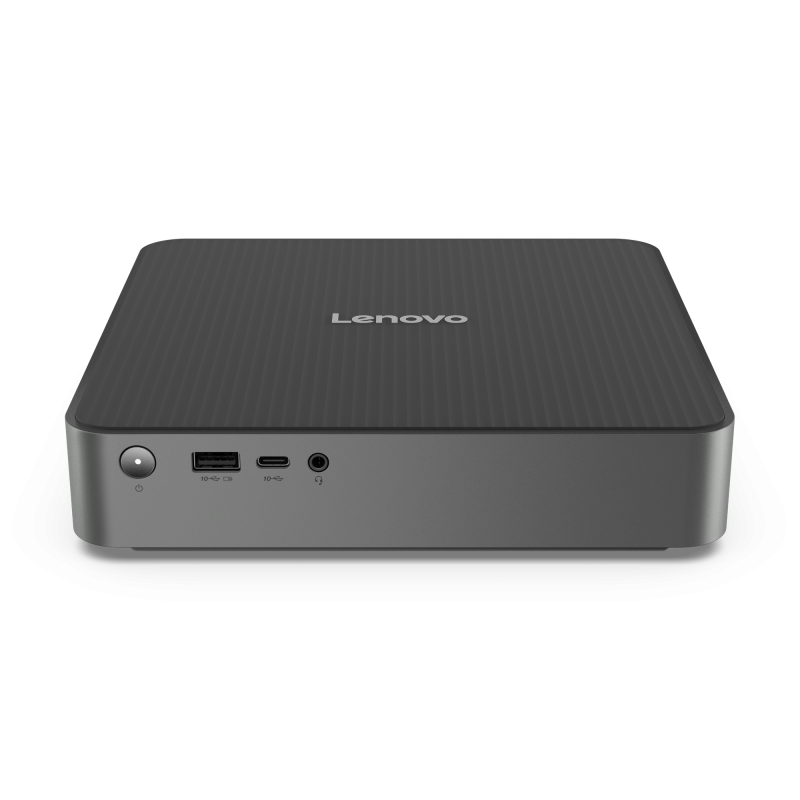

IC Mini CORE7 240H 16GB 1TB UMA DOS

Certification: ENERGY STAR,RoHS

Processor model: 240H

Processor family: Intel Core 7

Operating system installed: No

Bluetooth: Yes

Placement supported: Horizontal/Vertical

Chassis type: Mini PC

Product colour: Grey

Colour name: Luna Grey

Product type: Mini PC

Volume: 1 L

Display included: No

Audio Chip: Realtek ALC256

Weight: 1.8 kg

Memory slots: 2x SO-DIMM

Power Supply: 150 W

On-board graphics card family: Intel Graphics

On-board graphics card: Yes

Discrete graphics card: No

Discrete graphics card model: Not available

On-board graphics card model: Intel Graphics

On-board GPU manufacturer: Intel

Internal memory type: DDR5-SDRAM

Total storage capacity: 1 TB

Memory clock speed: 5600 MHz

Memory channels: Single-channel

Maximum internal memory: 32 GB

Memory layout (slots x size): 1 x 16 GB

Bluetooth version: 5.4

Wi-Fi standards: Wi-Fi 6E (802.11ax)

Top Wi-Fi standard: Wi-Fi 7 (802.11be)

Ethernet LAN data rates: 2500 Mbit/s

Password protection: Yes

Wi-FI: Yes

Antenna type: 2x2

Ethernet LAN: Yes

Neural processor unit (NPU): No

Storage temperature (T-T): -40 - 60 °C

Operating relative humidity (H-H): 20 - 80%

Operating temperature (T-T): -5 - 35 °C

Storage relative humidity (H-H): 10 - 90%

Non-operating altitude: 0 - 12192 m

Operating altitude: 0 - 3048 m

Mouse included: No

Keyboard included: No

Motherboard chipset: Intel SoC

Trusted Platform Module (TPM): Yes

Trusted Platform Module (TPM) version: 2.0

Password protection type: HDD

Audio system: High Definition Audio

Thunderbolt 3 ports quantity:

DisplayPorts quantity: 1

Ethernet LAN (RJ-45) ports: 1

DisplayPort version: 1.4b

HDMI ports quantity: 1

HDMI version: 2.1

Intel® Thunderbolt 4: Yes

Combo headphone/mic port: Yes

Thunderbolt 4 ports quantity: 1

USB 2.0 ports quantity: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity:

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3

Power supply input voltage: 100 - 240 V

Power supply input frequency: 50/60 Hz

Processor generation: Intel Core (Series 2)

Performance-core base frequency: 2.5 GHz

Efficient-core base frequency: 1.8 GHz

Number of processors installed: 1

Processor cores: 10

Efficient cores: 4

Processor boost frequency: 5.2 GHz

Performance-core Max Turbo Frequency: 5.2 GHz

Efficient-core Max Turbo Frequency: 4 GHz

Processor base power: 45 W

Processor threads: 16

Processor manufacturer: Intel

Processor cache type: Smart Cache

Performance cores: 6

Processor cache: 24 MB

Maximum turbo power: 115 W

Number of storage drives installed: 1

Total SSDs capacity: 1 TB

Storage media: SSD

Optical drive type: No

Number of SSDs installed: 1

SSD interface: PCI Express 4.0

SSD form factor: M.2

NVMe: Yes

SSD capacity: 1 TB

Card reader integrated: No

Height: 427 mm

Width: 191 mm

Depth: 19.5 mm

DT-CPU: Intel

DT-Format: Mini Tower

Garantia Produsului: 24 luni
