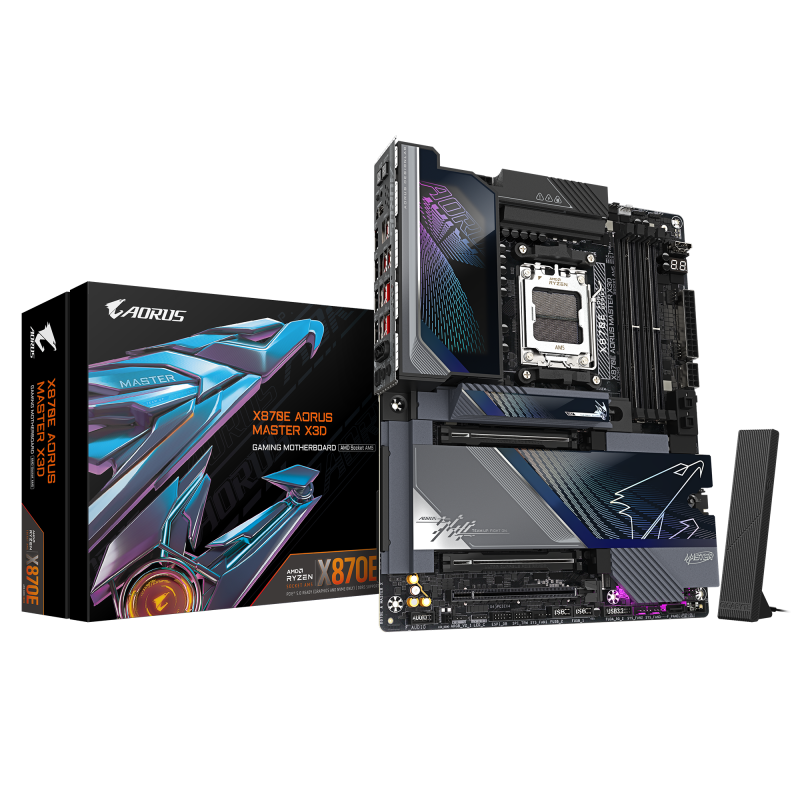

GIGABYTE X870E AORUS MASTER X3D

Lithium weight per battery: 0.07 g

Battery capacity: 220 mAh

Battery weight: 3 g

Number of battery cells: 1

Battery technology: Lithium-Manganese Dioxide (LiMnO2)

Battery type: CR2032

BIOS memory size: 512 Mbit

Clear CMOS button: Yes

ACPI version: 5.0

Desktop Management Interface (DMI) version: 2.7

System Management BIOS (SMBIOS) version: 2.7

BIOS type: UEFI AMI

Clear CMOS jumper: Yes

Bluetooth: Yes

Product colour: Black

Cooling type: Passive

PCI Express x16 (Gen 4.x) slots: 1

1st M.2 highest PCI Express generation: 5.0

3rd M.2 highest PCI Express generation: 4.0

5th M.2 largest key size: 2280

5th M.2 highest PCI Express generation: 4.0

1st M.2 largest key size: 2580

Number of M.2 (M) slots: 5

2nd M.2 largest key size: 2280

3rd M.2 largest key size: 2280

4th M.2 largest key size: 2280

4th M.2 highest PCI Express generation: 4.0

PCI Express x16 (Gen 5.x) slots: 2

2nd M.2 highest PCI Express generation: 5.0

Motherboard chipset family: AMD

Motherboard chipset: AMD X870E

Power source type: ATX

PC health monitoring: CPU, Fan, Temperature, Voltage, Water cooling

Audio Chip: Realtek ALC1220-VB/ESS 9118

Motherboard form factor: ATX

Windows operating systems supported: Windows 11 x64

Audio output channels: 7.1 channels

Component for: PC

HDCP: Yes

Maximum resolution: 4096 x 2304 pixels

HDCP version: 2.3

Parallel processing technology support: Not supported

DirectX version: 12.0

USB 2.0 connectors: 2

USB 3.2 Gen 2 (3.1 Gen 2) connectors:

Front panel audio connector: Yes

ATX Power connector (24-pin): Yes

CPU fan connector: Yes

EPS power connector (8-pin): Yes

USB 3.2 Gen 2x2 connectors: 1

Front panel connector: Yes

Number of CPU fan connectors: 2

Number of EPS power connectors (8-pin): 2

TPM connector: Yes

Number of water pump connectors: 2

RGB LED pin header: Yes

Number of SATA III connectors: 2

Number of RGB LED pin headers: 5

Number of temperature sensor headers: 2

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

Number of chassis fan connectors: 6

Chassis intrusion connector: Yes

Country of origin: Taiwan

Products per shipping (inner) case: 1 pc(s)

Supported memory clock speeds: 9000,8800,8600,8400,8200,8000,7800,7600,7200,7000,6800,6600,6400,6200,6000,5600,5200,4800 MHz

ECC сompatibility: Non-ECC

Supported memory clock speed (max): 9000 MHz

Memory channels: Dual-channel

Supported memory types: DDR5-SDRAM

Maximum internal memory: 256 GB

Maximum internal memory per slot: 64 GB

Number of memory slots: 4

Memory slots type: DIMM

Unbuffered memory: Yes

Ethernet LAN: Yes

Wi-FI: Yes

Top Wi-Fi standard: Wi-Fi 7 (802.11be)

Ethernet interface type: 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet

LAN controller: Realtek RTL8126, Realtek RTL8127

WLAN controller model: MediaTek MT7927

Bluetooth version: 5.4

Weight: 3.78 kg

Batteries included: Yes

Bundled software: Norton® Internet Security (OEM version)

Screws included: Yes

Antenna included: Yes

Package height: 92 mm

Package depth: 310 mm

Package weight: 4.33 kg

Package width: 340 mm

Warranty period: 3 year(s)

DVI-D ports quantity:

DisplayPort version: 1.4

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 7

USB 2.0 ports quantity:

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:

HDMI version: 2.1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1

HDMI ports quantity: 1

Processor manufacturer: AMD

Processor socket: Socket AM5

Supported processor sockets: Socket AM5

Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

USB4 Gen 2x2 ports quantity: 2

Headphone outputs: 1

Ethernet LAN (RJ-45) ports: 2

WiFi-AP antenna jack: 2

Digital audio optical out: 1

VGA (D-Sub) ports quantity: 0

USB 3.2 Gen 2x2 Type-C ports quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity:

Line-in: Yes

S/PDIF out port: Yes

Supported storage drive types: HDD & SSD

RAID support: Yes

Number of storage drives supported: 7

RAID levels: 0, 1, 5, 10

Number of HDDs supported: 2

Supported storage drive interfaces: M.2, PCI Express 4.0, PCI Express 5.0, SATA III

Height: 35 mm

Width: 305 mm

Depth: 244 mm
