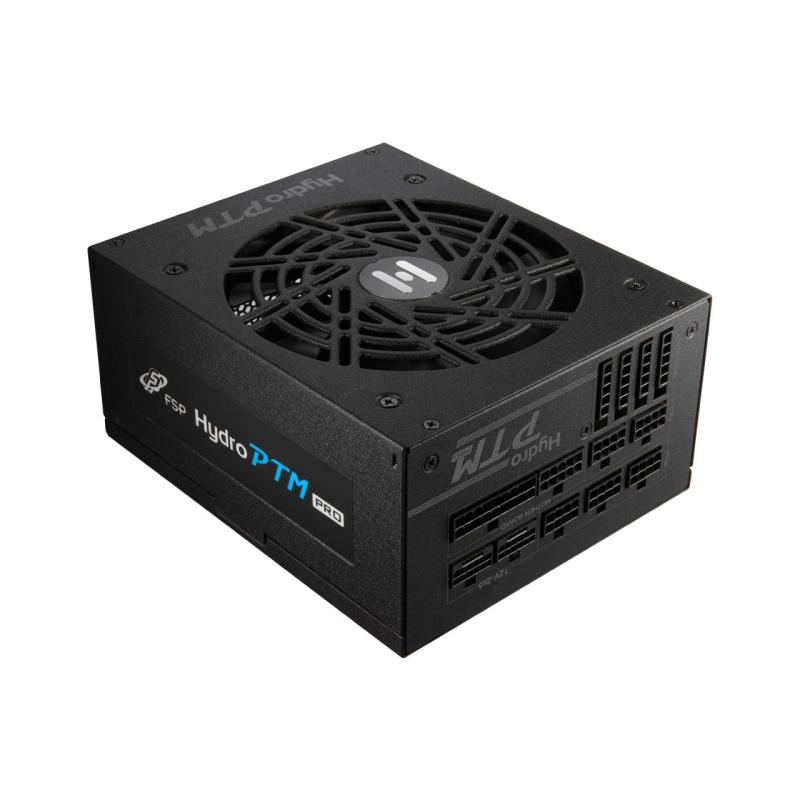

FSP Hydro PTM PRO 1650W ATX3.0(12V-2x6)

Number of fans: 1 fan(s)

Fan diameter: 13.5 cm

Cooling type: Semi-passive

On/off fan switch: Yes

On/off switch: Yes

Power protection features: Over current, Over power, Over voltage, Short circuit, Under voltage

Bearing technology: FDB

Purpose: PC

80 PLUS certification: 80 PLUS Platinum

Power supply unit (PSU) form factor: ATX

EPS version: 2.92

ATX version: 3.0

Cabling type: Fully-Modular

Peripheral (Molex) power connectors (4-pin): 4

Motherboard power connector: 20+4 pin ATX

PCI Express power connectors (6+2 pin): 4

CPU power connector (4+4 pin): Yes

Number of SATA power connectors: 12

Number of +12V rail(s): 1

Max output current (+5V): 20 A

Combined power (+3.3V): 120 W

Combined power (+5V): 120 W

Max output current (+12V): 0.3 A

AC input frequency: 50/60 Hz

Efficiency: 94%

Combined power (+12V): 3.6 W

Total power: 1650 W

Combined power (-12V): 3.6 W

Max output current (-12V): 0.3 A

Power Factor Correction (PFC) type: Active

Max output current (+3.3V): 20 A

Max output current (+5Vsb): 3 A

Combined power (+5Vsb): 15 W

AC input voltage: 110 - 240 V

Width: 150 mm

Height: 86 mm

Depth: 180 mm

Garantia Produsului: 24 luni
