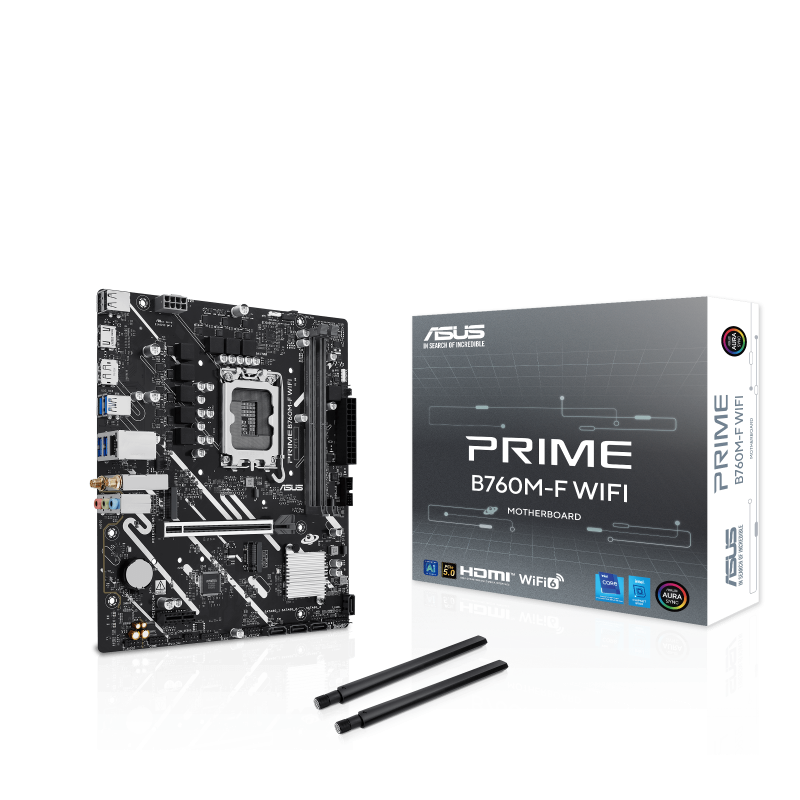

MB ASUS PRIME B760M-F WIFI

BIOS type: UEFI AMI

BIOS memory size: 128 Mbit

Bluetooth: Yes

PCI Express x1 (Gen 4.x) slots: 2

PCI Express x16 (Gen 4.x) slots: 1

Number of M.2 (M) slots: 2

Audio output channels: 7.1 channels

Windows operating systems supported: Windows 10 x64, Windows 11

Component for: PC

Motherboard chipset family: Intel

Motherboard form factor: micro ATX

Motherboard chipset: Intel B760

Parallel processing technology support: Not supported

TPM connector: Yes

RGB LED pin header: Yes

USB 2.0 connectors: 2

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

USB 3.2 Gen 2 (3.1 Gen 2) connectors:

Number of SATA III connectors: 4

Front panel audio connector: Yes

ATX Power connector (24-pin): Yes

CPU fan connector: Yes

EPS power connector (8-pin): Yes

12V power connector: Yes

S/PDIF out connector: Yes

Number of COM connectors: 1

Number of chassis fan connectors: 1

Supported memory clock speed (max): 5333 MHz

Supported memory clock speeds: 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7600,7800,8000 MHz

ECC сompatibility: Non-ECC

Supported memory types: DDR5-SDRAM

Memory slots type: DIMM

Unbuffered memory: Yes

Number of memory slots: 2

Memory channels: Dual-channel

Maximum internal memory: 96 GB

Ethernet LAN: Yes

Top Wi-Fi standard: Wi-Fi 6 (802.11ax)

Wi-FI: Yes

Ethernet interface type: 2.5 Gigabit Ethernet

Bluetooth version: 5.3

Weight: 496 g

Cables included: SATA

Package width: 270 mm

Package height: 51.5 mm

Package depth: 263 mm

Package weight: 877 g

DVI-D ports quantity:

USB 2.0 ports quantity: 2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:

HDMI ports quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4

Processor manufacturer: Intel

Processor socket: LGA 1700

Maximum number of SMP processors: 1

Supported processor sockets: LGA 1700

PS/2 ports quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity:

S/PDIF out port: Yes

VGA (D-Sub) ports quantity: 1

Ethernet LAN (RJ-45) ports: 1

Supported storage drive types: HDD & SSD

Supported storage drive interfaces: M.2, SATA III

RAID support: Yes

Number of HDDs supported: 4

RAID levels: 0, 1, 5, 10

Number of storage drives supported: 6

Width: 244 mm

Depth: 211 mm

Height: 36 mm

MB-Socket: 1700

PCI-Ex16: 3

MB-Format: micro-ATX

PCI: 3

USB3: 4-8

Onboard-CPU: Yes

Garantia Produsului: 24 luni
