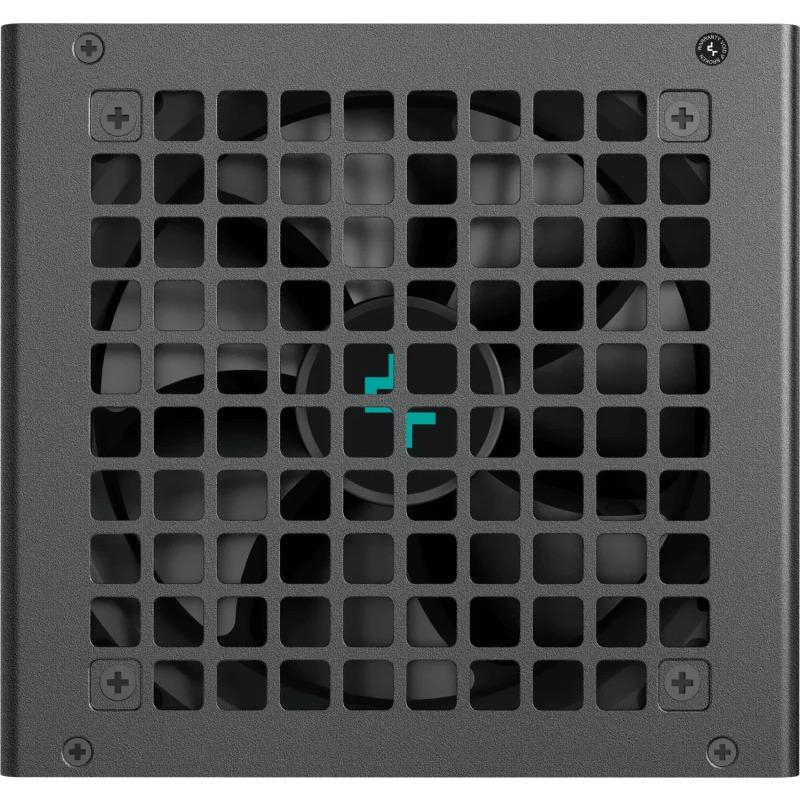

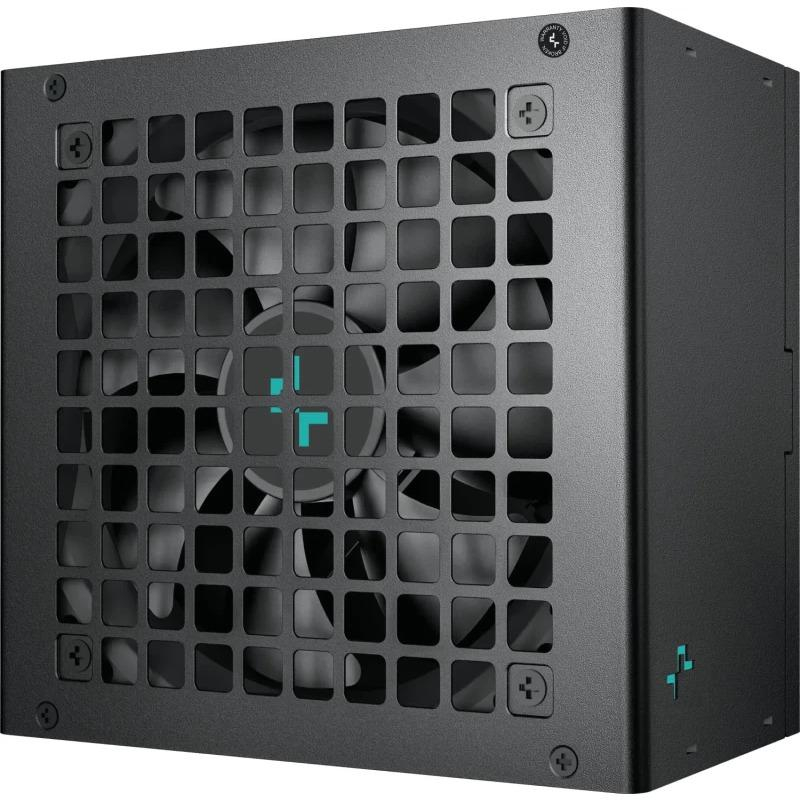

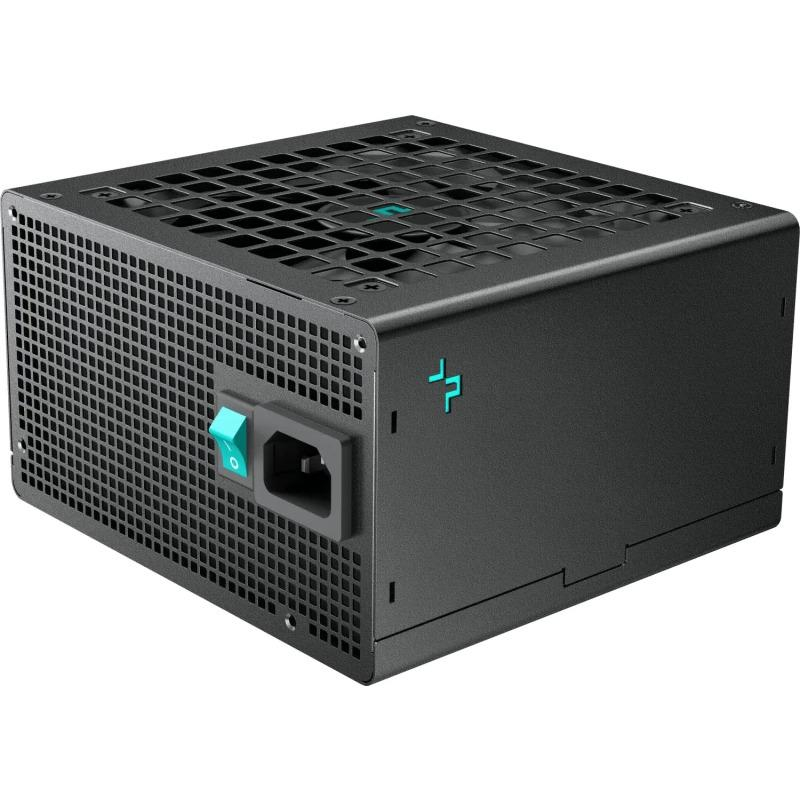

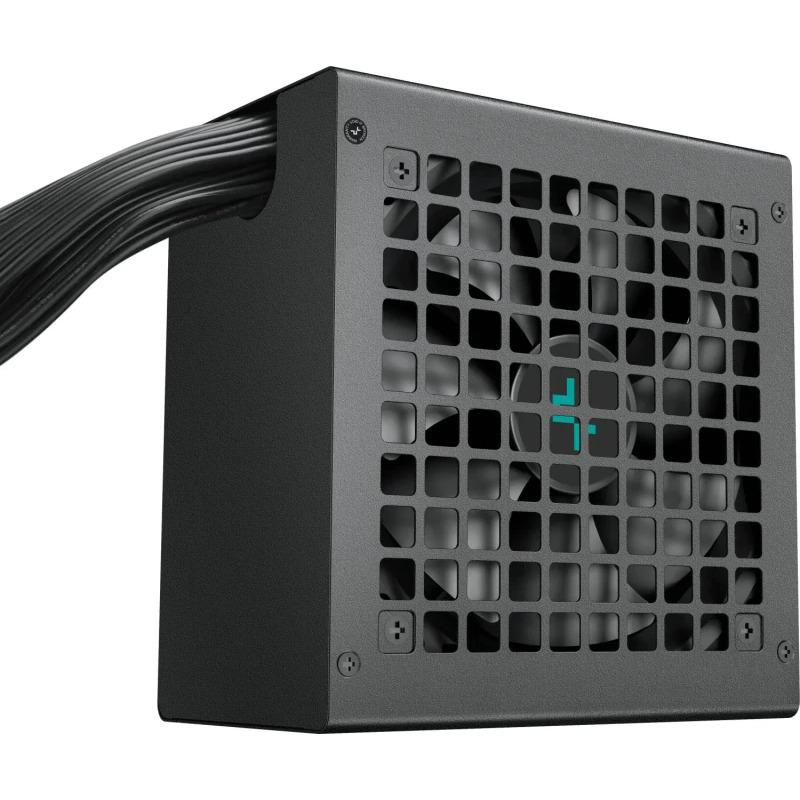

SURSA DEEPCOOL PL550D V2

Compliance certificates: RoHS, WEEE

Certification: CE/FCC/CCC/RCM/EAC/CAN ICES-003(B)/NMB-003(B) /TUV-RH

On/off switch: Yes

Cooling type: Active

Number of fans: 1 fan(s)

Fan diameter: 12 cm

Fan location: Top

Country of origin: China

Operating temperature (T-T): 0 - 40 °C

Package type: Box

ATX version: 3.1

Bearing technology: HYB

Power supply unit (PSU) form factor: ATX

Mean time between failures (MTBF): 100000 h

Purpose: PC

80 PLUS certification: 80 PLUS Bronze

Number of SATA power connectors: 6

Motherboard power connector: 20+4 pin ATX

Motherboard power cable length: 55 cm

CPU power connector (4+4 pin): Yes

ATX power connector (20+4 pin): Yes

Cabling type: Non-Modular

SATA power cable length: 450,550,650 mm

PCI Express power connectors (16-pin): 1

Peripheral (Molex) power connectors (4-pin): 2

PCI Express power connectors (6+2 pin): 3

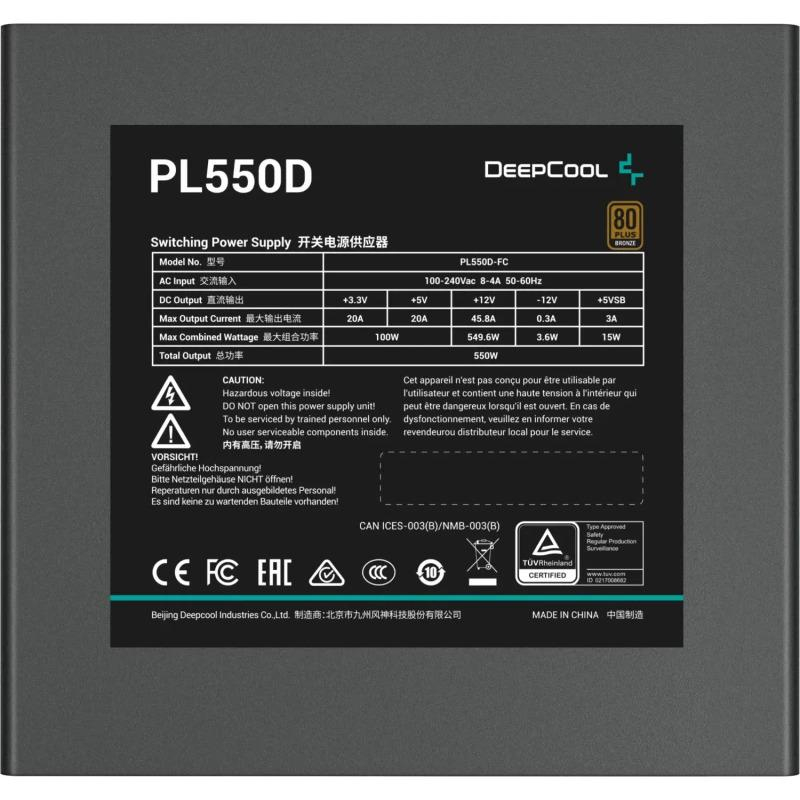

Total power: 550 W

Max output current (+5Vsb): 3 A

Power Factor Correction (PFC) type: Active

Max output current (+3.3V): 20 A

Max output current (-12V): 0.3 A

Max output current (+5V): 20 A

Efficiency: 80Plus-Bronze

Combined power (+12V): 3.6 W

Power Good signal delay range: 100 - 150 ms

Input current: 8 - 4 A

Hold time: 16 ms

Combined power (+5Vsb): 15 W

Combined power (+3.3V): 100 W

Combined power (+5V): 100 W

Combined power (-12V): 3.6 W

AC input frequency: 50/60 Hz

Max output current (+12V): 0.3 A

Sustainability compliance: Yes

Sustainability certificates: ErP, Triman

Width: 150 mm

Height: 86 mm

Depth: 140 mm

Modular: Yes

Garantia Produsului: 60 luni
