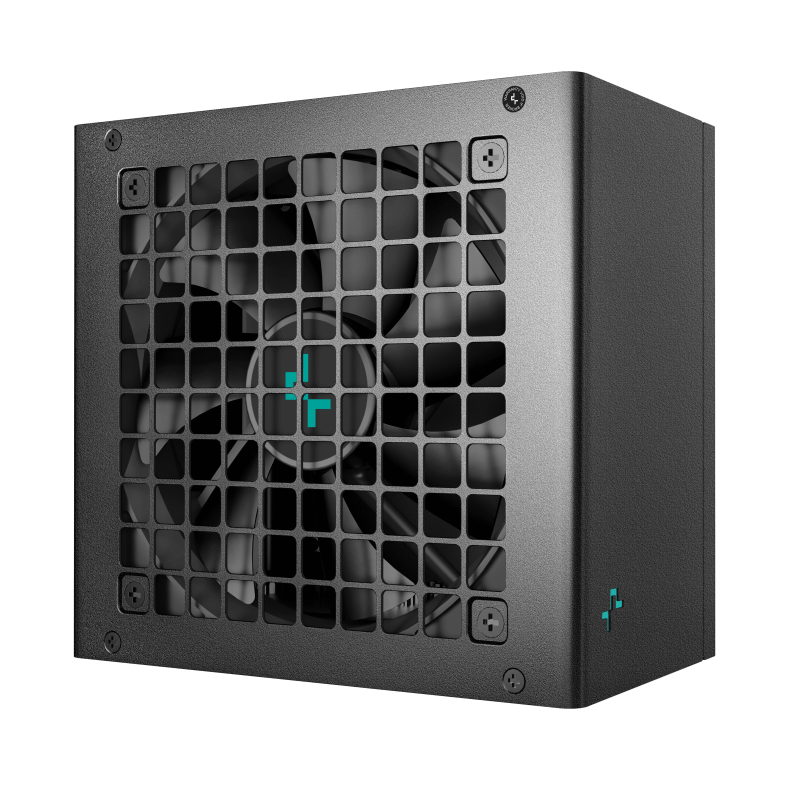

DeepCool PN750M power supply unit 750

Compliance certificates: CCC, CE, EAC, Federal Communications Commission (FCC), RCM, RoHS, WEEE

Product colour: Black

On/off switch: Yes

Cooling type: Active

Number of fans: 1 fan(s)

Fan diameter: 12 cm

Fan location: Top

Warranty period: 10 year(s)

Operating temperature (T-T): 0 - 40 °C

Cable tie(s) included: Yes

Cable ties included: Yes

Cables included: AC, CPU, PCIe, Peripheral (Molex), SATA

Package type: Box

80 PLUS certification: 80 PLUS Gold

Bearing technology: FDB

ATX version: 3.1

Power supply unit (PSU) form factor: ATX

Purpose: PC

Mean time between failures (MTBF): 100000 h

Motherboard power connector: 20+4 pin ATX

Motherboard power cable length: 55 cm

CPU power connector (4+4 pin): Yes

ATX power connector (20+4 pin): Yes

Number of SATA power connectors: 8

Cabling type: Fully-Modular

CPU power cable length: 70 cm

Peripheral (Molex) power connectors (4-pin): 2

Peripheral (Molex) power cable length: 930 mm

SATA power cable length: 450,570,690,810 mm

PCI Express power connectors (6+2 pin): 3

PCI Express power connectors (16-pin): 1

Combined power (+5V): 110 W

Max output current (+5V): 20 A

Power Factor Correction (PFC) type: Active

Combined power (+3.3V): 110 W

Max output current (+3.3V): 20 A

Power Good signal delay range: 100 - 150 ms

Max output current (+12V): 0.3 A

Combined power (+12V): 3.6 W

Input current: 10 - 5 A

Hold time: 16 ms

Efficiency: 90%

Combined power (+5Vsb): 15 W

Max output current (-12V): 0.3 A

Max output current (+5Vsb): 3 A

Total power: 750 W

Combined power (-12V): 3.6 W

AC input frequency: 50/60 Hz

AC input voltage: 100 - 240 V

Sustainability certificates: ErP, Triman

Depth: 140 mm

Width: 150 mm

Height: 86 mm
