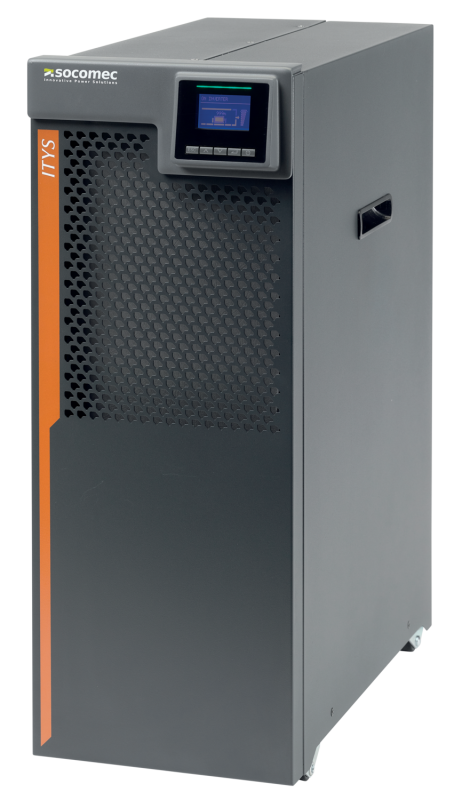

SOCOMEC TYS 6000VA VFI UPS 1/1 PF=1

Typical backup time at full load: 6.9 min

Battery technology: Sealed Lead Acid (VRLA)

Battery voltage: 192 V

Charging current: 12 A

Certification: IEC/EN 62040-2, AS 62040.2nIEC/EN 62040-3nCE, RCM (E2376)

International Protection (IP) code: IP20

Product colour: Black, Grey, Orange

LED indicators: Yes

Display type: LCD

Control type: Buttons

Cooling type: Active

Built-in fan: Yes

Form factor: Tower

Input operation voltage (max): 276 V

Output operation voltage (min): 220 V

Output operation voltage (max): 240 V

Emergency Power Off (EPO): Yes

UPS topology: Double-conversion (Online)

Output power capacity: 6 kVA

Output power: 6000 W

Crest factor: 3:1

Input power factor: 0.99

ECO mode: Yes

Output frequency: 50/60 Hz

Number of input phases: 1

Number of output phases: 1

Efficiency (ECO mode): 98%

Noise level: 50 dB

Efficiency: 95%

Input operation voltage (min): 160 V

Input frequency: 40/70 Hz

Output power factor: 1

Power protection features: Short circuit

Waveform: Sine

Country of origin: China

Operating relative humidity (H-H): 0 - 95%

Operating altitude: 0 - 1000 m

Operating temperature (T-T): 0 - 40 °C

Manual: Yes

Ethernet LAN (RJ-45) ports: 1

USB port type: USB Type-B

RS-232 ports: 1

Safety: IEC/EN 62040-1, AS 62040.1.1, AS 62040.1.2

Width: 225 mm

Height: 596 mm

Weight: 53 kg

Depth: 469 mm
