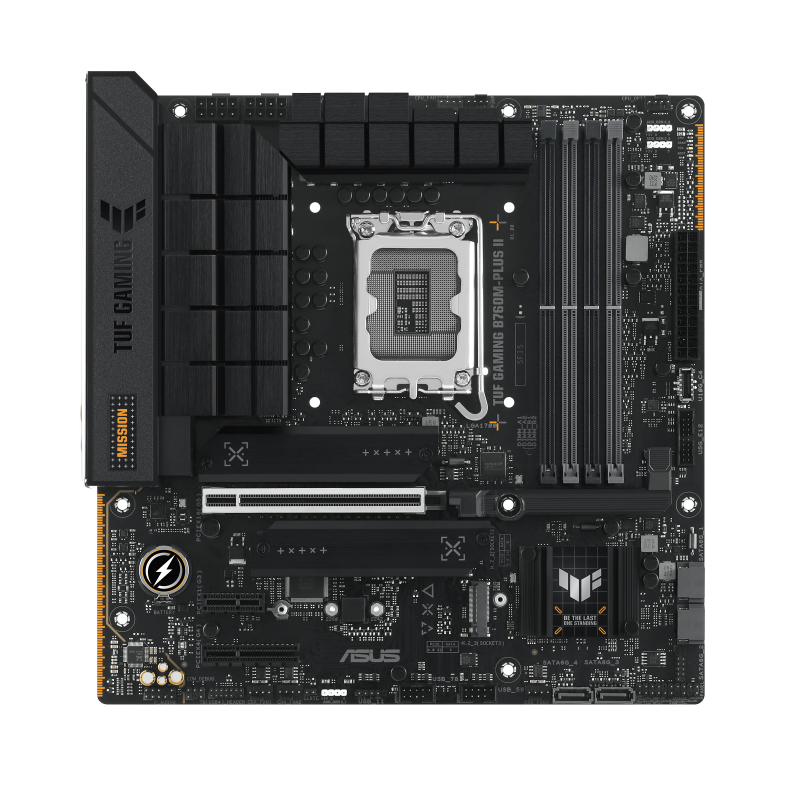

ASUS TUF GAMING B760M-PLUS II

BIOS type: UEFI AMI

BIOS memory size: 128 Mbit

Number of M.2 (M) slots: 3

PCI Express x1 (Gen 3.x) slots: 1

PCI Express x16 (Gen 5.x) slots: 1

PCI Express x4 (Gen 4.x) slots: 1

Audio output channels: 7.1 channels

Windows operating systems supported: Windows 10 x64, Windows 11

Component for: PC

Motherboard form factor: micro ATX

Motherboard chipset family: Intel

Motherboard chipset: Intel B760

Parallel processing technology support: Not supported

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

Number of SATA III connectors: 4

Front panel audio connector: Yes

ATX Power connector (24-pin): Yes

CPU fan connector: Yes

EPS power connector (8-pin): Yes

USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1

USB 2.0 connectors: 3

12V power connector: Yes

Number of chassis fan connectors: 3

Thunderbolt headers: 1

Supported memory clock speed (max): 7800 MHz

Supported memory clock speeds: 7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5400,5200,5000,4800 MHz

ECC сompatibility: Non-ECC

Supported memory types: DDR5-SDRAM

Memory channels: Dual-channel

Number of memory slots: 4

Memory slots type: DIMM

Unbuffered memory: Yes

Maximum internal memory: 192 GB

Ethernet LAN: Yes

Wi-FI: No

Ethernet interface type: 2.5 Gigabit Ethernet

Weight: 982 g

Cables included: SATA

Screws included: Yes

Package depth: 265 mm

Package weight: 1.65 kg

Package width: 280 mm

Package height: 71 mm

DVI-D ports quantity:

DisplayPorts quantity: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1

USB 2.0 ports quantity: 4

HDMI ports quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:

Processor manufacturer: Intel

Processor socket: LGA 1700

Supported processor sockets: LGA 1700

Microphone in: Yes

Headphone outputs: 1

USB 3.2 Gen 2x2 Type-C ports quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity:

S/PDIF out port: Yes

VGA (D-Sub) ports quantity: 0

Supported storage drive interfaces: M.2, SATA III

Supported storage drive types: HDD & SSD

RAID support: Yes

Number of HDDs supported: 4

Number of storage drives supported: 7

RAID levels: 0, 1, 5, 10

Width: 244 mm

Height: 50 mm

Depth: 24.4 mm

Garantia Produsului: 24 luni
