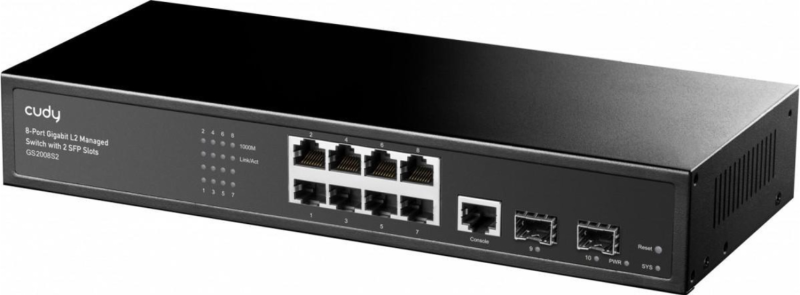

CUDY 8-Port Layer 2 Managed Gigabit Swit

Jumbo frames support: Yes

Static route: Yes

MAC address table: 8000 entries

Packet buffer memory: 0.5 MB

Switching capacity: 56 Gbit/s

Forwarding rate: 41.66 Mpps

Jumbo frames: 9.6

Form factor: 1U

Stackable: Yes

Rack mounting: Yes

LED indicators: Activity, Link, Power, System

Ethernet LAN data rates: 10,100,1000 Mbit/s

VLAN support: Yes

Quality of Service (QoS) support: Yes

Flash memory: 16 MB

Networking standards: IEEE 802.11j, IEEE 802.11k, IEEE 802.1Qav

Flow control support: Yes

Rate limiting: Yes

Traffic classification: Yes

Web-based management: Yes

System event log: Yes

Switch type: Managed

Switch layer: L2

Multicast support: Yes

Broadcast storm control: Yes

Spanning tree protocol: Yes

Virtual LAN features: Voice VLAN

MAC address auto-aging supported: Yes

MAC address auto-learning supported: Yes

Cable types supported: Cat3, Cat4, Cat5

Number of VLANs: 4096

Port mirroring: Yes

Link aggregation: Yes

Storage relative humidity (H-H): 5 - 90%

Operating temperature (T-T): -10 - 50 °C

Fiber type: Multi-mode

Package type: Box

Package weight: 1.54 kg

Package width: 312 mm

Package depth: 262 mm

Package height: 84 mm

Memory type: DDR-SDRAM

Basic switching RJ-45 Ethernet ports quantity: 8

Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Installed SFP modules quantity: 2

Gigabit Ethernet (copper) ports quantity: 8

Console port: RJ-45

Installed SFP+ modules quantity: 2

Power supply included: Yes

Power source: AC

IPv4 & IPv6 features: IPv6 Telnet

DHCP features: DHCP Option 82, DHCP server, DHCP snooping

Authentication type: RADIUS, TACACS+

IP-MAC-Port binding: Yes

IGMP snooping: Yes

SSH/SSL support: Yes

Authentication: Port-based authentication

Weight: 1.01 kg

Width: 268 mm

Depth: 181 mm

Layer: Layer-2

Rackable: No

LAN-Port-Type: Gigabit

LAN-Ports: 8

Redundant-PSU: No

Garantia Produsului: 24 luni
