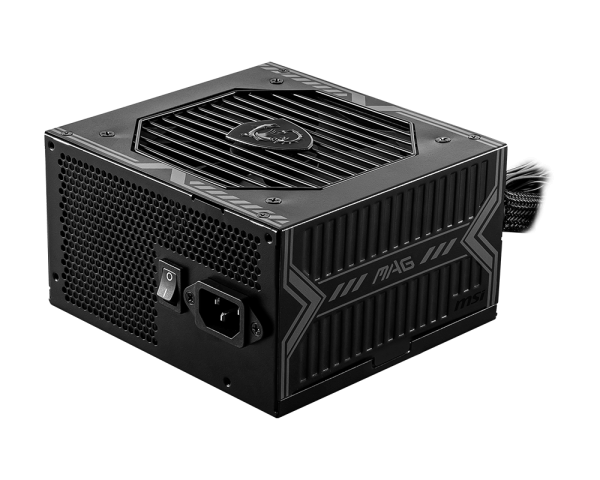

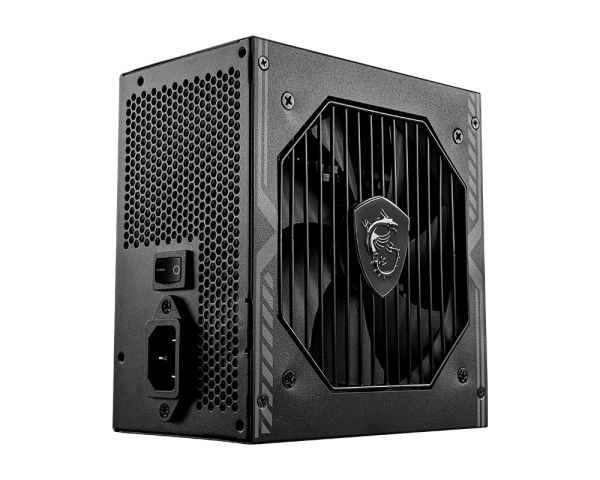

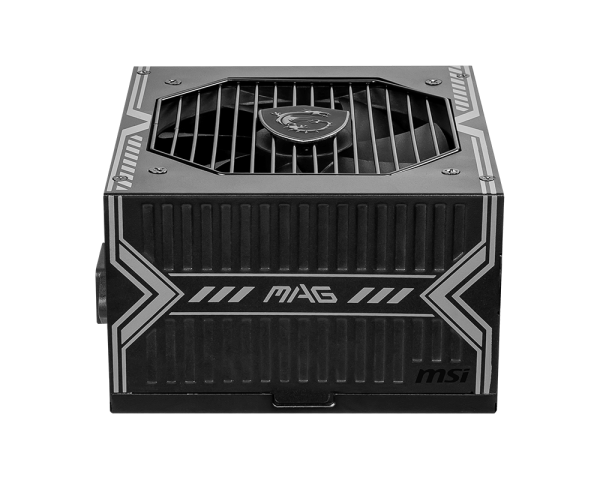

SURSA MSI MAG A750BN PCIE5

Number of fans: 1 fan(s)

Illumination: No

Fan diameter: 12 cm

On/off switch: Yes

Package depth: 140 mm

Package height: 86 mm

Package width: 150 mm

80 PLUS certification: 80 PLUS Bronze

Purpose: PC

Power supply unit (PSU) form factor: ATX

Cabling type: Non-Modular

EPS power connector (4+4 pin): Yes

Motherboard power connector: 24-pin ATX

ATX Power connector (24-pin): Yes

Number of SATA power connectors: 5

PCI Express power connectors (6+2 pin): 2

Floppy drive power connector: 1

PCI Express power connectors (16-pin): 1

Peripheral (Molex) power connectors (4-pin): 2

Maximum input current (@110V): 10 A

Power protection features: Over current, Over power, Over voltage, Short circuit

Max output current (+5V): 20 A

Combined power (+3.3V): 120 W

Combined power (+5V): 120 W

Maximum input current (@220V): 5 A

AC input voltage: 100 - 240 V

Combined power (-12V): 3.6 W

Combined power (+5Vsb): 12.5 W

Max output current (-12V): 0.3 A

Total power: 750 W

Combined power (+12V): 750 W

Max output current (+12V): 62.5 A

Power Factor Correction (PFC) type: Active

Max output current (+3.3V): 20 A

Max output current (+5Vsb): 2.5 A

Garantia Produsului: 120 luni
