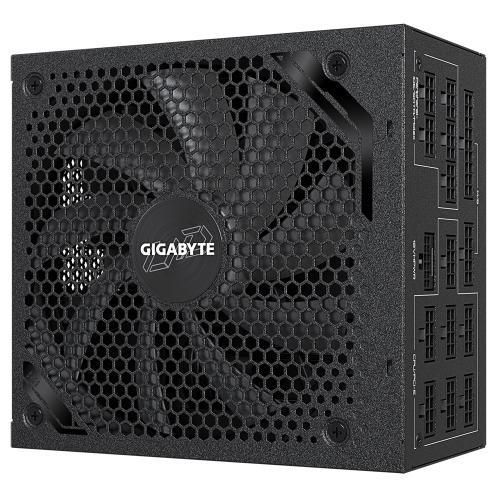

SURSA GIGABYTE UD1300GM 80PLUS GOLD

Compliance certificates: CCC, CE, Federal Communications Commission (FCC), RoHS

Number of fans: 1 fan(s)

Illumination: No

Fan diameter: 12 cm

Fan location: Top

Warranty period: 5 year(s)

Cable tie(s) included: Yes

Cables included: CPU, PATA, Peripheral (Molex), SATA

80 PLUS certification: 80 PLUS Gold

Power supply unit (PSU) form factor: ATX

Mean time between failures (MTBF): 100000 h

Purpose: PC

Motherboard power connector: 20+4 pin ATX

PCI Express power connectors (6+2 pin): 4

CPU power connector (4+4 pin): Yes

ATX power connector (20+4 pin): Yes

PCI Express connector: Yes

Number of SATA power connectors: 8

Motherboard power cable length: 61 cm

Cabling type: Fully-Modular

PCI Express power connectors (16-pin): 1

Peripheral (Molex) power connectors (4-pin): 2

PCI Express power cable length: 70 cm

Number of PATA power connectors: 3

SATA power cable length: 150,600 mm

Peripheral (Molex) power cable length: 200,600 mm

Input current: 12 - 6 A

Maximum input current (@110V): 6 A

Maximum input current (@220V): 12 A

Total power: 1300 W

Combined power (+12V): 1300 W

Max output current (+12V): 108.3 A

Hold time: 16 ms

Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

Combined power (+3.3V): 125 W

Combined power (+5V): 125 W

Max output current (+5Vsb): 3.5 A

Power Factor Correction (PFC) type: Active

Efficiency: 90%

Combined power (+5Vsb): 17.5 W

Max output current (+3.3V): 25 A

Max output current (-12V): 0.3 A

Max output current (+5V): 25 A

Combined power (-12V): 3.6 W

AC input frequency: 50 - 60 Hz

AC input voltage: 100 - 240 V

Depth: 160 mm

Height: 86 mm

Width: 150 mm

Garantia Produsului: 120 luni
