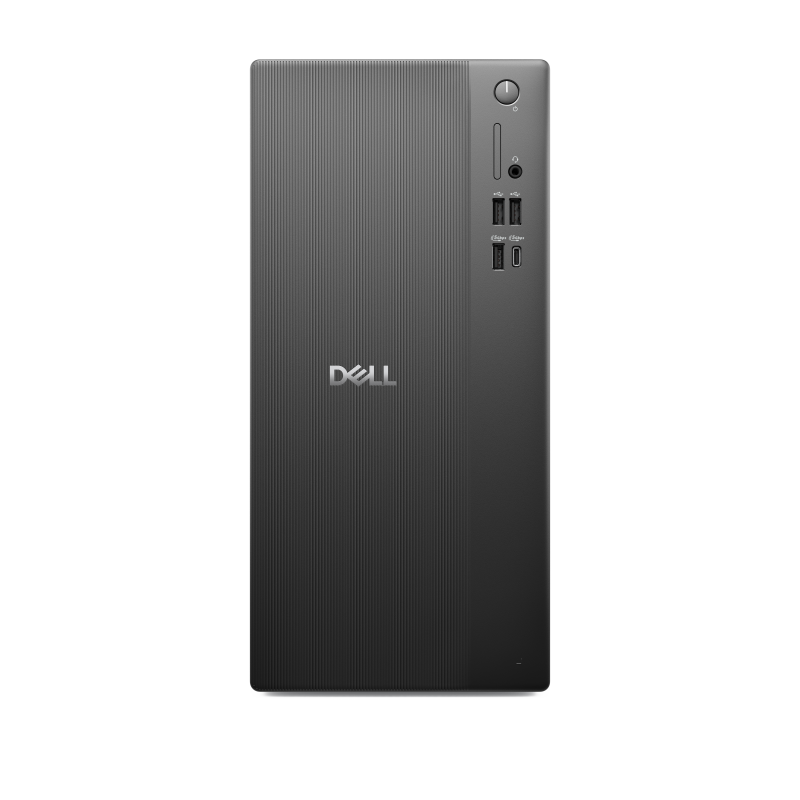

DL ECT1250 U7-265 16 1 UBU

Processor family: Intel Core Ultra 7

Operating system installed: Ubuntu Linux

Processor model: 265

Product type: PC

Cable lock slot: Yes

Cable lock slot type: Kensington

Chassis type: Tower

Placement supported: Vertical

Display included: No

PCI Express x16 slots: 1

PCI Express x1 slots: 2

Memory slots: 2x DIMM

Weight: 6.86 kg

Power Supply: 180 W

Audio Chip: Realtek ALC3204

On-board graphics card: Yes

Discrete graphics card: No

Discrete graphics card model: Not available

On-board graphics card model: Intel Graphics

On-board GPU manufacturer: Intel

Graphics card HDMI ports quantity: 1

Graphics card DisplayPorts quantity: 3

On-board graphics card family: Intel Graphics

Memory channels: Dual-channel

Memory data transfer rate: 5600 MT/s

Total storage capacity: 1 TB

Memory layout (slots x size): 1 x 16 GB

Maximum internal memory: 64 GB

Internal memory type: DDR5-SDRAM

Cabling technology: 10/100/1000Base-T(X)

Wi-FI: Yes

Top Wi-Fi standard: Wi-Fi 6 (802.11ax)

Antenna type: 2x2

Ethernet LAN: Yes

Ethernet LAN data rates: 10,100,1000 Mbit/s

LAN controller: Realtek RTL8111KD

WLAN controller model: MediaTek MT7920

WLAN controller manufacturer: MediaTek

Wi-Fi standards: 802.11a, Wi-Fi 5 (802.11ac), 802.11b, Wi-Fi 6 (802.11ax), 802.11g, Wi-Fi 4 (802.11n)

AI software frameworks supported by NPU: DirectML, OpenVINO, Windows ML, ONNX RT, WebNN

NPU performance up to: 13 TOPs

GPU performance up to: 8 TOPs

Total processor performance up to: 33 TOPs

Neural processor unit (NPU): Intel AI Boost

Sparsity support: Yes

Windows Studio effects support: Yes

Storage relative humidity (H-H): 0 - 95%

Operating altitude: -15.2 - 3048 m

Non-operating altitude: -15.2 - 10668 m

Operating shock: 110 G

Non-operating shock: 160 G

Operating vibration: 0.66 G

Non-operating vibration: 1.3 G

Storage temperature (T-T): -40 - 65 °C

Operating temperature (T-T): 10 - 35 °C

Audio system: High Definition Audio

Motherboard chipset: Intel Q870

Trusted Platform Module (TPM): Yes

Trusted Platform Module (TPM) version: 2.0

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1

USB 2.0 ports quantity: 4

DisplayPort version: 1.4a

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:

HDMI ports quantity: 1

HDMI version: 2.1

Combo headphone/mic port: Yes

Number of SATA III connectors: 1

Thunderbolt 3 ports quantity:

DisplayPorts quantity: 1

Power supply input frequency: 47/63 Hz

Power supply input voltage: 90 - 264 V

80 PLUS certification: 80 PLUS Bronze

Processor threads: 20

Number of processors installed: 1

Processor base power: 65 W

Efficient-core base frequency: 1.8 GHz

Performance cores: 8

Processor cores: 20

Efficient cores: 12

Processor boost frequency: 5.3 GHz

Processor cache: 30 MB

Performance-core Max Turbo Frequency: 5.2 GHz

Processor manufacturer: Intel

Processor cache type: Smart Cache

Efficient-core Max Turbo Frequency: 4.6 GHz

Performance-core base frequency: 2.4 GHz

Processor generation: Intel Core Ultra (Series 2)

Maximum turbo power: 182 W

Storage media: SSD

Optical drive type: No

Number of SSDs installed: 1

SSD interface: PCI Express 4.0

Number of storage drives installed: 1

SSD form factor: M.2

NVMe: Yes

Number of storage drives supported: 2

M.2 SSD size: 2230 (22 x 30 mm)

SSD capacity: 1 TB

Total SSDs capacity: 1 TB

Sustainability certificates: ENERGY STAR, EPEAT Climate +, EPEAT Silver

Width: 154 mm

Depth: 293 mm

Height: 324.3 mm

Garantia Produsului: 36 luni
