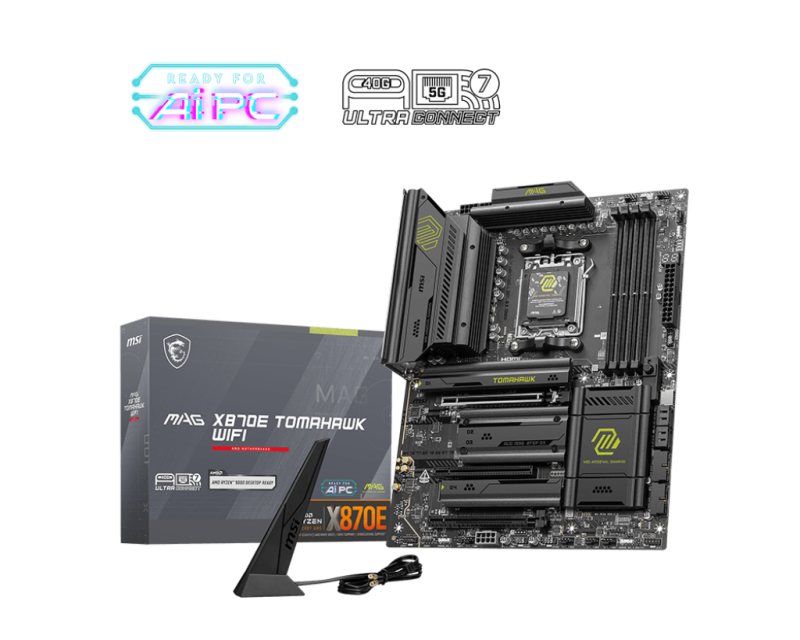

MB MSI MAG X870E TOMAHAWK WIFI AM5

PCI Express x16 (Gen 3.x) slots: 1

PCI Express x16 (Gen 5.x) slots: 1

PCI Express x16 (Gen 4.x) slots: 1

1st M.2 highest PCI Express generation: 5.0

3rd M.2 highest PCI Express generation: 4.0

Number of M.2 (M) slots: 4

2nd M.2 largest key size: 2280

3rd M.2 largest key size: 2280

4th M.2 largest key size: 2280

4th M.2 highest PCI Express generation: 4.0

2nd M.2 highest PCI Express generation: 5.0

1st M.2 largest key size: 22110

Motherboard chipset: AMD X870E

PC health monitoring: CPU, Fan, Temperature, Voltage

Motherboard chipset family: AMD

Audio output channels: 7.1 channels

Component for: PC

Motherboard form factor: ATX

On-board graphics card: No

Number of SATA III connectors: 4

Number of SATA II connectors:

Number of SATA connectors:

ATX Power connector (24-pin): Yes

CPU fan connector: Yes

EPS power connector (8-pin): Yes

Total number of SATA connectors: 4

USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1

USB 2.0 connectors: 4

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 4

ECC сompatibility: Non-ECC

Supported memory types: DDR5-SDRAM

Maximum internal memory: 256 GB

Number of memory slots: 4

Memory slots type: DIMM

Memory channels: Dual-channel

Supported memory clock speed (max): 8400 MHz

Supported memory clock speeds: 4800,5600,8400 MHz

Bluetooth version: 5.4

Ethernet LAN: Yes

Wi-FI: Yes

Top Wi-Fi standard: Wi-Fi 7 (802.11be)

Ethernet interface type: 5 Gigabit Ethernet

LAN controller: Realtek RTL8126

mSATA ports quantity:

DVI-D ports quantity:

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3

DisplayPort version: 1.4

HDMI version: 2.1

HDMI ports quantity: 1

DisplayPorts quantity: 2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2

USB 2.0 ports quantity: 4

Processor manufacturer: AMD

Maximum internal memory supported by processor: 256 GB

Processor socket: Socket AM5

Supported processor sockets: Socket AM5

Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity:

S/PDIF out port: Yes

USB4 Gen 2x2 ports quantity: 1

VGA (D-Sub) ports quantity: 0

Microphone in: Yes

Supported storage drive types: HDD & SSD

Number of storage drives supported: 8

Number of HDDs supported: 4

Supported storage drive interfaces: M.2, SATA III

Width: 243.8 mm

Depth: 304.8 mm

MB-Format: ATX

PCI-Ex1: 0

PCI-Ex16: 3

RAM-Slots: 4

MB-Socket: AM5

USB3: 4-8

Onboard-CPU: No

PCI: 0

Garantia Produsului: 36 luni
